Specifications
brick paver machinenologically advanced, easy to operate.
2.PLC control

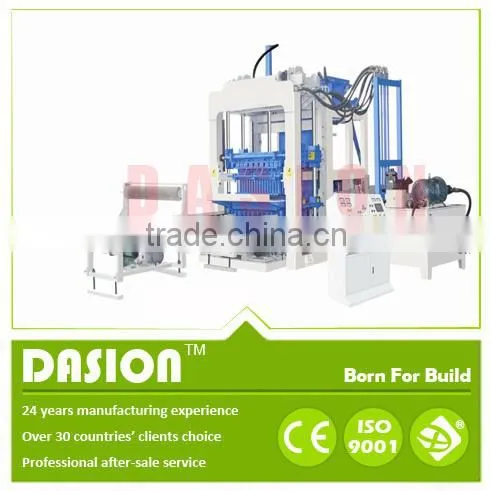

DS10-15 Brick Making Machinery
1. Compatible with fixed standard brick, hollow block, brick and other concrete products
2. Special design of material storage & feeding system to ensure the accuracy of material feeding
3. Adopt full program adopt PLC control and intelligent man-machine interface dialogue system
4. Reasonable distribution of vibration to increase the effect of vibrating speed.
DS10-15 Brick Making Machinery:
1. Special design of material storage & feeding system: to ensure the accuracy of material feeding; to reduce the materials uneven-density under variety of reasons
2. Multi-source vibration system: Applicable for large work platform, computer-control, hydraulic-driven and some other technologies. Adopt full-synchronous mode of vibration, vibration-hit power is adjustable;
3. Control System: Effective cooperation between digital tech and displacement sensor tech to ensure the accurate and reliable action; Suitable for application in busy complex working conditions
4. Automatic diagnosis: It prompts and alarms to solve trouble timely; Combination of remote control systems, connecting through the telephone line to achieve remote monitoring, controlling and diagnosis.
Main technical parameters of DS10-15 brick making machinery:
Parameter Name |
Parameter values |
|
The largest machine dimensions |
7200×2290×3100(L×W×H)(mm) |
|
Rated pressure of hydraulic system |
21Mpa |
|
Main vibration form |
All vibration molded desk |
|
Vibration frequency |
50~70Hz |
|
Vibration acceleration |
10-15g |
|
To adapt to the high brick |
50-200mm |
|
Pallet size |
Wooden |
1070×840×40(mm) |
Molding cycle |
15s |
|
Machine power |
36.8kw |
|
Machine weight |
14.8t |
|
Main product specifications and production of each plate:
Model |
Block Specifications (mm) |
Forming number |
Molding cycle |
Middle class |
DS10-15 |
390×190×190 (block) |
10 |
15 |
19200 |
240×115×90 (brick) |
24 |
15 |
46080 |
|
240×115×53 (standard brick) |
48 |
15 |
92160 |
|
This series of 150-650 tons of products with different specifications. Brick shaped mold can be produced according to user needs. | ||||
Production conditions: | ||
Production sites |
Venues |
15-20acres |
Operate camp |
60 |
|
Raw space |
300 |
|
Office space |
30 |
|
Other conditions |
Staff |
10-15people |
Distribution |
40kw |
|
Water |
10T/day |
|
(Parameter is changed without prior notice.)
