concrete interlocking bricks making machine DS10-15 industrial machinery automatic concrete block making machine supplier

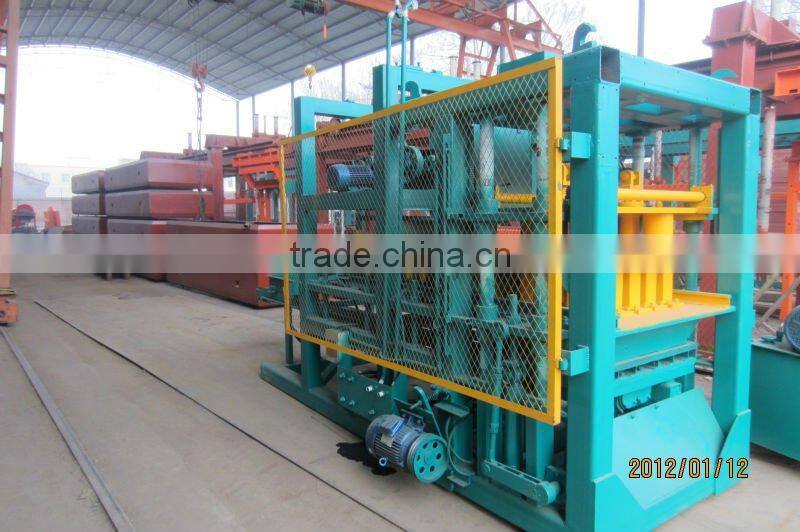

DS10-15 Brick Making Machinery
1. Compatible with fixed standard brick, hollow block, brick and other concrete products
2. Special design of material storage & feeding system to ensure the accuracy of material feeding
3. Adopt full program adopt PLC control and intelligent man-machine interface dialogue system
4. Reasonable distribution of vibration to increase the effect of vibrating speed.
DS10-15 Brick Making Machinery:
1. Special design of material storage & feeding system: to ensure the accuracy of material feeding; to reduce the materials uneven-density under variety of reasons
2. Multi-source vibration system: Applicable for large work platform, computer-control, hydraulic-driven and some other technologies. Adopt full-synchronous mode of vibration, vibration-hit power is adjustable;
3. Control System: Effective cooperation between digital tech and displacement sensor tech to ensure the accurate and reliable action; Suitable for application in busy complex working conditions
4. Automatic diagnosis: It prompts and alarms to solve trouble timely; Combination of remote control systems, connecting through the telephone line to achieve remote monitoring, controlling and diagnosis.
Technical Features of concrete block making machine :
Parameter Name |
Parameter values |
||
The largest machine dimensions |
7200×2290×3100(L×W×H)(mm) |
||
Rated pressure of hydraulic system |
21Mpa |
||
Main vibration form |
All vibration molded desk |
||
Vibration frequency |
50~70Hz |
||
Vibration acceleration |
10-15g |
||
To adapt to the high brick |
50-200mm |
||
Pallet size |
Bamboo |
1070×840×40(mm) |
|
Molding cycle |
15s |
||
Machine power |
36.8kw |
||
Machine weight |
14.8t |
||
Main product specifications and production of each plate:
Model |
Block Specifications (mm) |
Forming number |
Molding cycle |
Capacity (pcs) |
||||
DS10-15 |
390×190×190 (brick) |
10 |
15 |
19200 |
||||
240×115×90 (brick) |
24 |
15 |
46080 |
|||||
240×115×53 (standard brick) |
48 |
15 |
92160 |
|||||
Production conditions: | ||||||||
Production sites |
Venues |
15-20acres |
||||||
Operate camp |
60 |
|||||||
Raw space |
300 |
|||||||
Office space |
30 |
|||||||
Other conditions |
Staff |
10-15people |
||||||
Distribution |
40kw |
|||||||
Water |
10T/day |
|||||||
