Steel Construction Machine for Roofing Panel Roll Forming Production Line
- 10 Set / Sets per Month
- Shanghai/Ningbo
- T/T
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Jotun JT-SDJ Industrial Automatic Metal Sheet Surface Polishing Machine
- Large Metal Sheet Metal Workpiece Processing Deburring Chamfering Plane Belt Polishing Machine
- Heavy Duty Automatic Wide Belt Metal Sand Deburring Machine
- Metal Plate Deburring and Rust Removal Machine Steel Plate Sand Belt Drawing and Polishing Equipment Flat Polishing Machine
- Metal Flat Sheet Laser Cutting Parts Deburring Grinding Polishing Machine Manufacturer
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Zhongyuan | Model Number: | ZYYX |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Steel Construction Machine for Roofing Panel Roll Forming Production Line
Machine was designed by 15 years experienced R&D members with lifetime services.
Certificate: ISO 9001, CE,
Overview of machine
Cr12 mould steel cutter with quenched treatment.
Improved structure, more stable cutting performance.
1. Parameters of Steel Construction Machine for Roofing Panel Roll Forming Production Line
Item | Specification | |
Material | Type | Pre-painted steel coil & galvanized coils |
Thickness | 0.4-0.8mm | |
Yield strength | 235-345Mpa | |
Roller material | 45#Chrome steel plate with hard chrome | |
Speed adjusting mode | AC Frequency | |
Roller drive | Decelerating motor + Chain drive | |

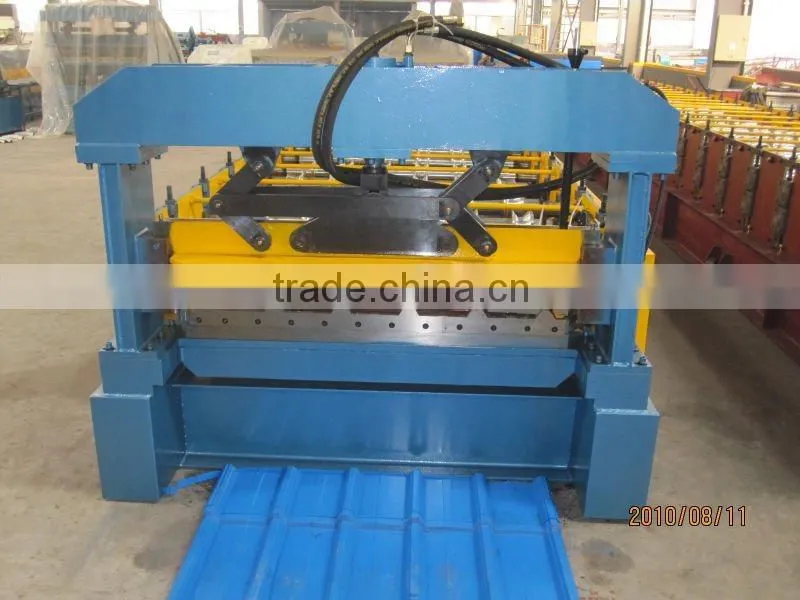

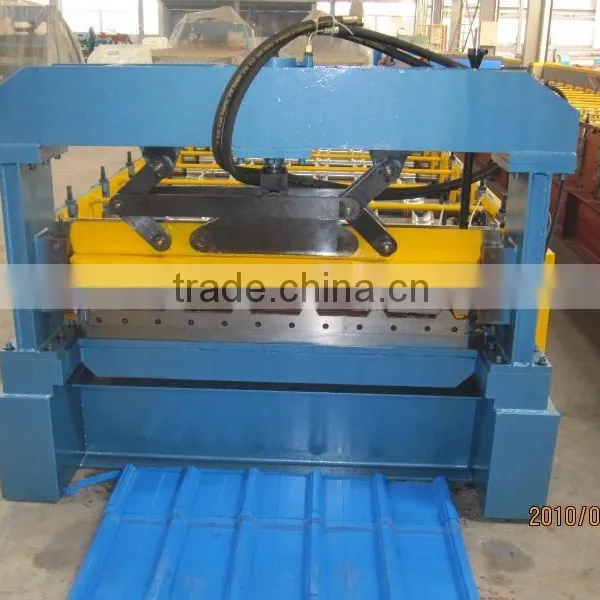

Cutting mode | Hydraulic cutting | |
Cutter material | Cr12 mould steel | |
Length measurement | Encoder | |
Control mode | Mitsubishi PLC | |
Operating mode | Button + Mitsubishi Touch screen | |
Main motor power | 7.5KW | |
Total power | 9.7KW |
1.1 Machine spec.
1. Size: about 10*1.6*1.5m (L*W*H)
2. Weight: About 9ton
3. Color: Make-to-order
4. Forming Speed: 20-25m/min.
5. Power : 380V/3Phase/ 50Hz
6. Main motor power: 7.5Kw(Depend on final design)
2.Components of Steel Construction Machine for Roofing Panel Roll Forming Production Line

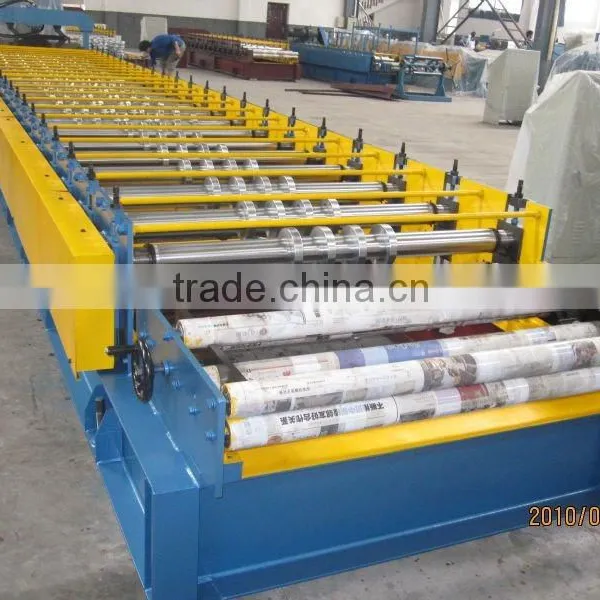

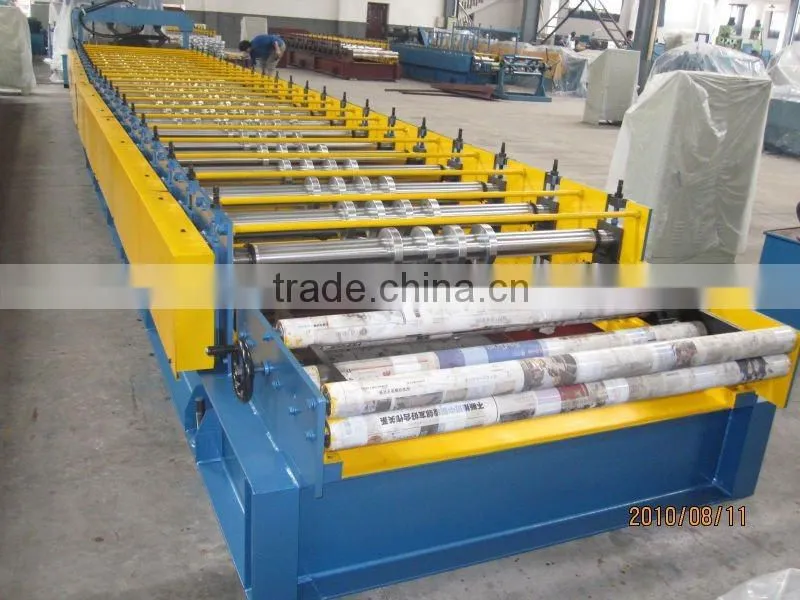

3. Rollers and shafts of Steel Construction Machine for Roofing Panel Roll Forming Production Line
Rollers material: No.45 Forged Steel with Hard Chrome
Shafts for rollers: Grand twice, 82mm diameter solid steel
Process
PLC Controller for Steel Construction Machine for Roofing Panel Roll Forming Production Line
Operation type: Button + Touch screen
Inside of PLC Controller for reference
Steel Construction Machine for Roofing Panel Roll Forming Production Line

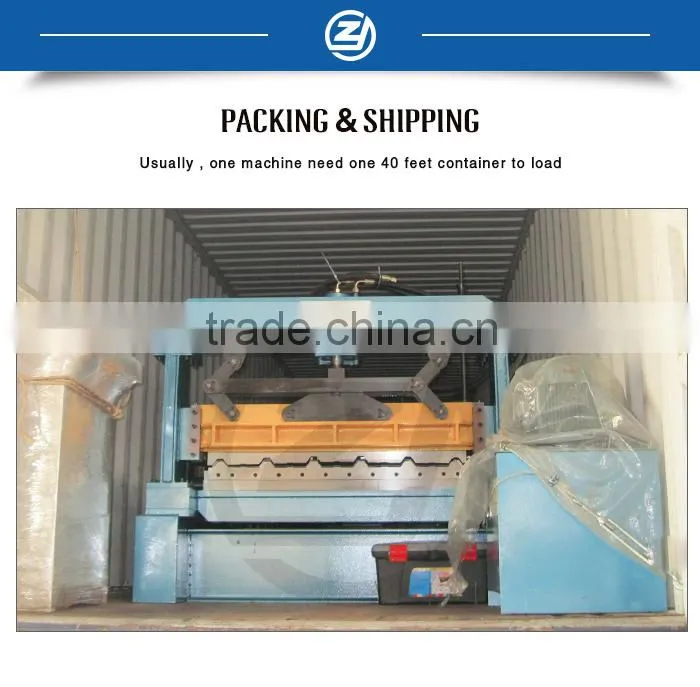

Packing condiction for reference
About us
1. Customize roll forming machines since 2003.
2. Capacity: 12-15 sets/month
3. Delivery: in only 5-8 weeks for urgent order
4. Company occupies 6650, in which 5650 for workshops
5. Have our own tool center. 12 sets CNC machines.
6. Technician can be sent to your factory to install the machine and train your workers
7. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers
Please feel free to contact us for more information!
