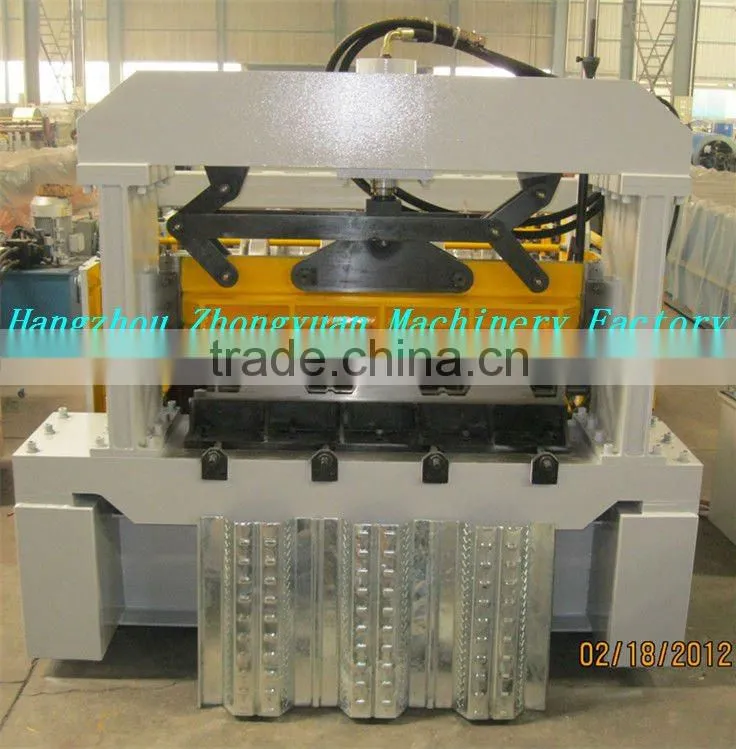

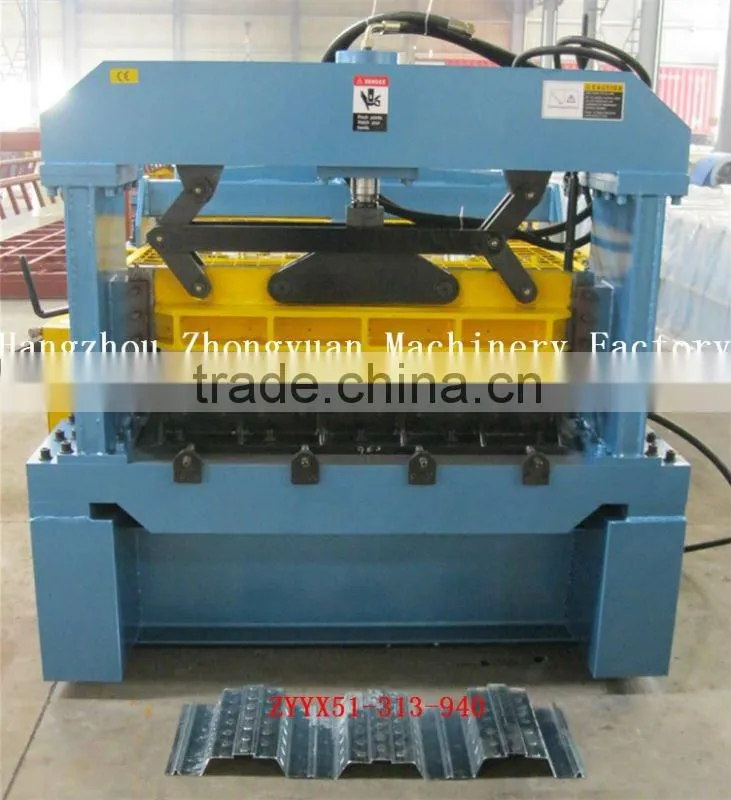

Embossed Trapezoidal Metal Floor Deck Panel Roll Forming Machine Prices
Machine was designed by 15 years experienced R&D members with lifetime services.
Certificate: ISO 9001, CE,
Overview of machine
Cr12 mould steel cutter with quenched treatment.
Improved structure, more stable cutting performance.
White for option
1. Parameters of Embossed Trapezoidal Metal Floor Deck Panel Roll Forming Machine Prices
Item |
Specification |
|
|
Material |
Type |
Pre-painted steel coil & galvanized coils |
Thickness |
0.8-1.2mm |
|
Yield strength |
235-345Mpa |
|
Roller material |
45#Chrome steel plate with hard chrome |
|
Speed adjusting mode |
AC Frequency |
|
Roller drive |
Decelerating motor + Chain drive |
|
Cutting mode |
Hydraulic cutting |
|
Cutter material |
Cr12 mould steel |
|
Length measurement |
Encoder |
|
Control mode |
Mitsubishi PLC |
|
Operating mode |
Button + Mitsubishi Touch screen |
|
Main motor power |
18.5KW |
|
Total power |
24KW |
|
1.1 Machine spec.
1. Size: about 15*1.8*1.6m (L*W*H)
2. Weight: About 16ton
3. Color: Make-to-order
4. Forming Speed: 20-25m/min; out put speed 8-10m/min
5. Power : 380V/3Phase/ 50Hz
6. Main motor power: 18.5Kw(Depend on final design)

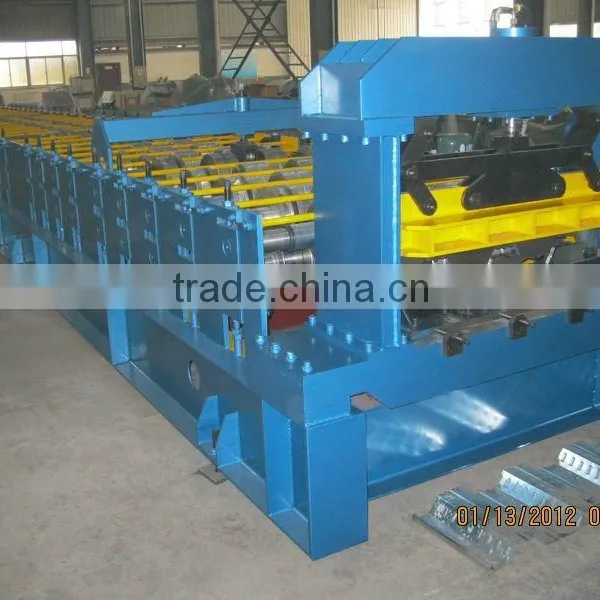

2.Components of Embossed Trapezoidal Metal Floor Deck Panel Roll Forming Machine Prices

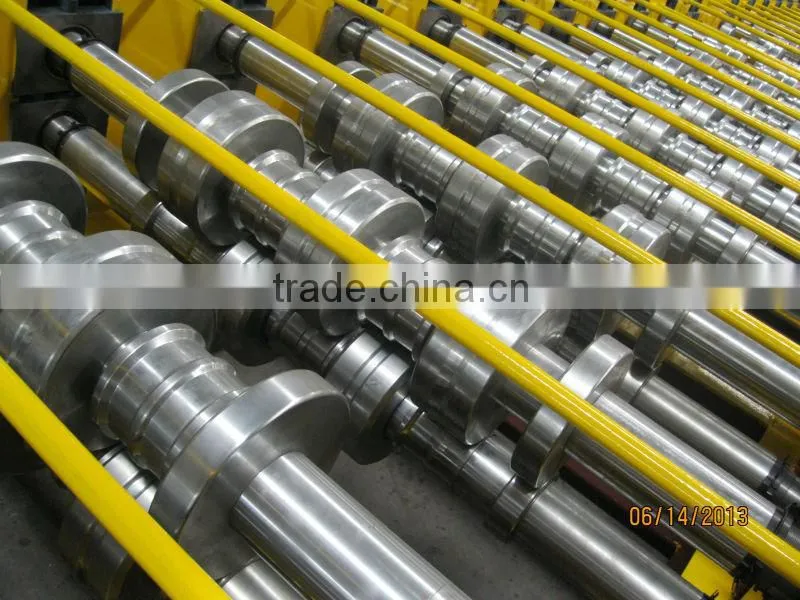

3. Rollers and shafts of Embossed Trapezoidal Metal Floor Deck Panel Roll Forming Machine Prices
Rollers material: No.45 Forged Steel with Hard Chrome
Shafts for rollers: Grand twice, 82mm diameter solid steel
Process
PLC Controller for Embossed Trapezoidal Metal Floor Deck Panel Roll Forming Machine Prices
Operation type: Button + Touch screen
Inside of PLC Controller for reference
Embossed Trapezoidal Metal Floor Deck Panel Roll Forming Machine Prices

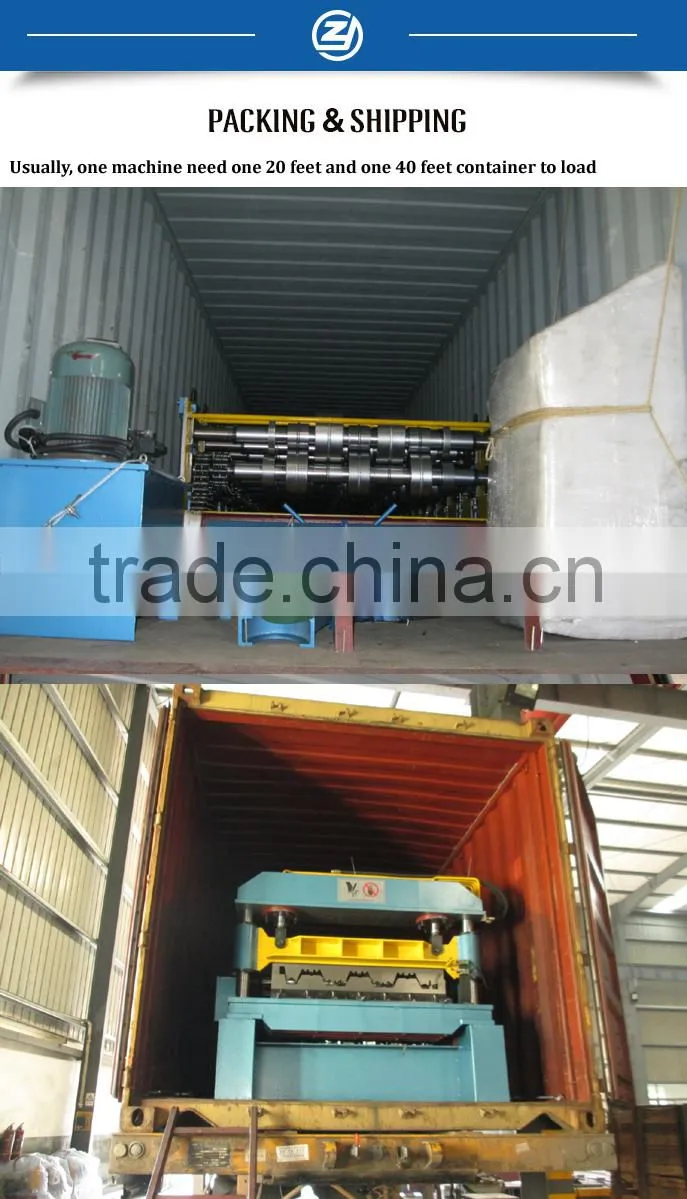

Packing condiction for reference
About us
1. Customize roll forming machines since 2003.
2. Capacity: 12-15 sets/month
3. Delivery: in only 5-8 weeks for urgent order
4. Company occupies 6650, in which 5650 for workshops
5. Have our own tool center. 12 sets CNC machines.
6. Technician can be sent to your factory to install the machine and train your workers
7. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers
Please feel free to contact us for more information!
