Steel Structure Floor Deck Building Bearing Roll Forming Machine
Brief introduction
1. Designed by 15 years experienced R&D members with lifetime services.
2. Introduced Mitsubishi PLC with touch screen.
3. Need only one worker (minimum) to operate
4. Roller cover with 0.05mm chrome, ensure lifetime>10years
5. Cr12 mould steel cutter with quenched treatment. Blade with heat treatment.
6. Product cut-to-length.
7. 82mm diameter solid steel shaft
Certificate: ISO 9001, CE,

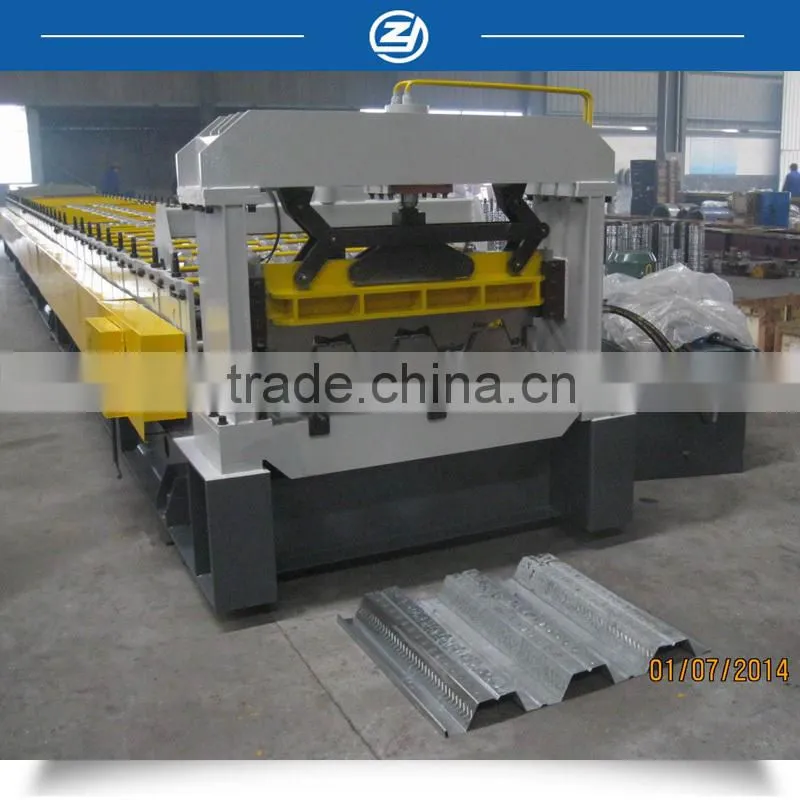

Overview of machine

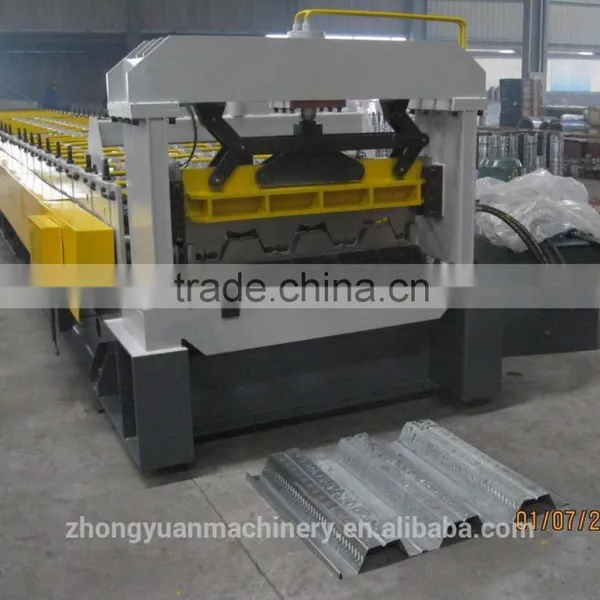

Cr12 mould steel cutter with quenched treatment.
Improved structure, more stable cutting performance.
1. Parameters of Steel Structure Floor Deck Building Bearing Roll Forming Machine
Item |
Specification |
|
|
Material |
Type |
Pre-painted steel coil & galvanized coils |
Thickness |
0.8-1.2mm |
|
Yield strength |
235-345Mpa |
|
Roller material |
45#Chrome steel plate with hard chrome |
|
Forming speed |
15m/min |
|
Speed adjusting mode |
AC Frequency |
|
Roller drive |
Decelerating motor + Chain drive |
|
Cutting mode |
Hydraulic cutting |
|
Cutter material |
Cr12 mould steel |
|
Length measurement |
Encoder |
|
Control mode |
Mitsubishi PLC |
|
Operating mode |
Button + Mitsubishi Touch screen |
|
Main motor power |
18.5KW |
|
Total power |
27.5KW |
|
2. Components of Steel Structure Floor Deck Building Bearing Roll Forming Machine
2.1 Components spec.:
1. Decoiler Max. Capacity: 5000kgs
2. Hydraulic station power: About 2.2Kw (Depend on final design)
3. Control system: Mitsubishi PLC with touch screen
4. Cutting length: Cut-to-length
3. Process flow:
Decoiler -- Feeding & Guiding -- Roll forming-- Hydraulic Cutting - Product to Run Out Table

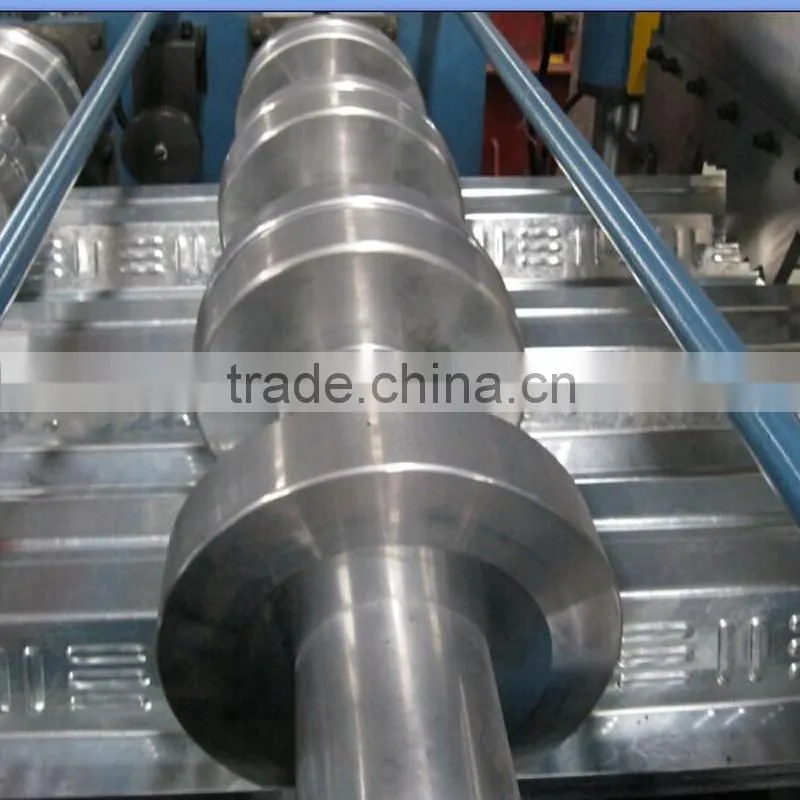

Rollers abd shafts of Steel Structure Floor Deck Building Bearing Roll Forming Machine
Rollers material: No.45 Forged Steel with Hard Chrome
Shafts for rollers: Grand twice, 82mm diameter solid steel
The PLC controller is the "CPU" of forming machine. We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!
Inside of PLC Controller for reference
Steel Structure Floor Deck Building Bearing Roll Forming Machine

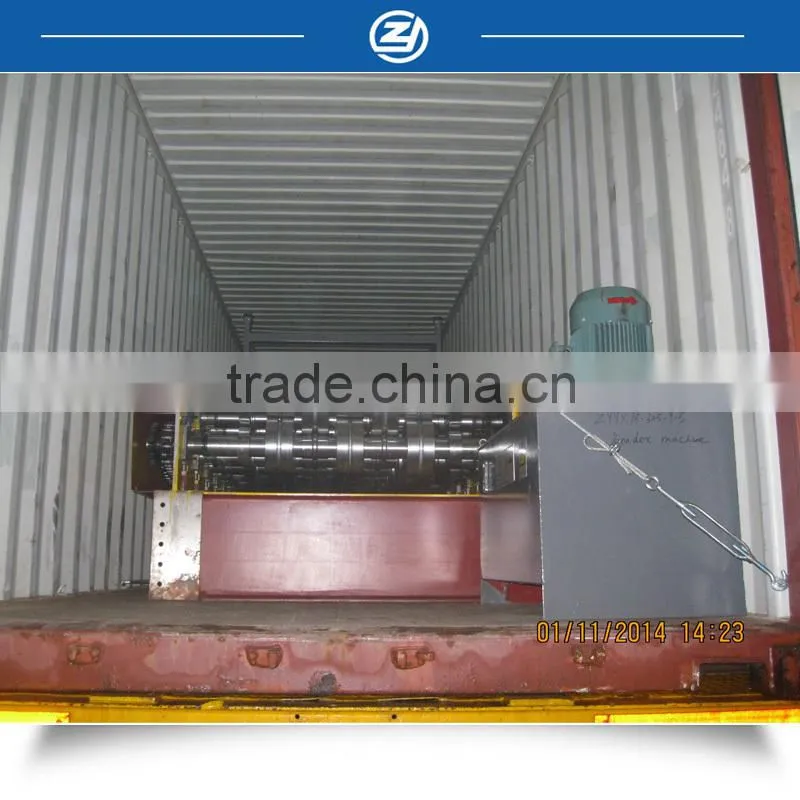

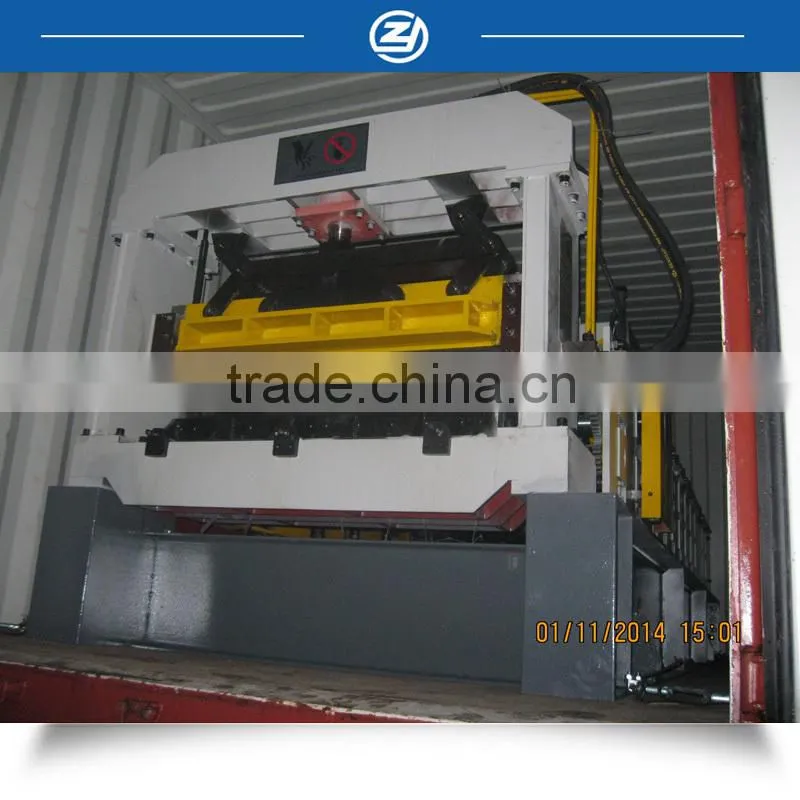

Machine need one 40 feet container and one 20 feet container to load.
Why us?
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.
1. Capacity: 12-15 sets/month
2. Delivery: in only 5-8 weeks for urgent order
3. Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
5. You can rely on our team!
We have engineers with experience more than 15 years in metal forming industry.
We customize your machines!
To customize machine, we would love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend the lacol popular profile for you----Just let us know your country!
How is our cooperation process?
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers.
Get Free:
"Send" below to get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
