0.8mm -1.2mm Trapezoidal Profile Metal Floor Deck Roll Forming Machine
Machine was designed by 15 years experienced R&D members with lifetime services.
Certificate: ISO 9001, CE,

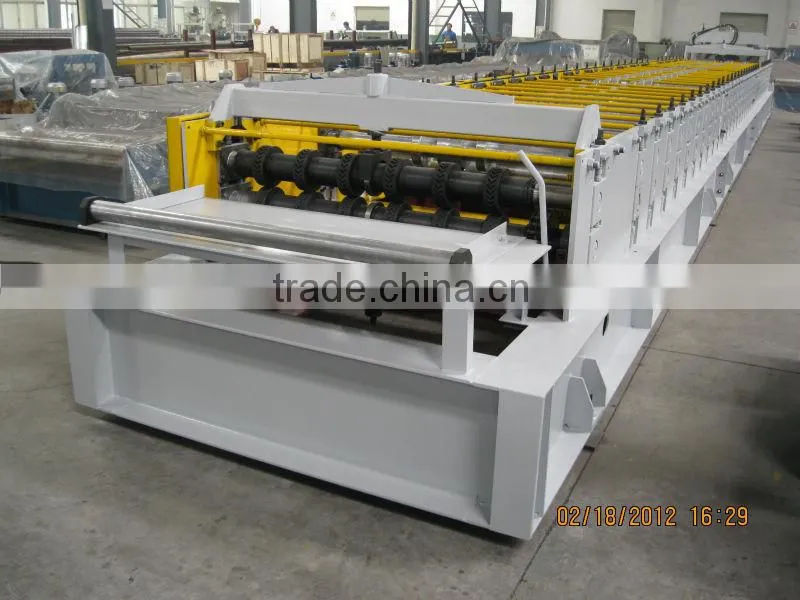

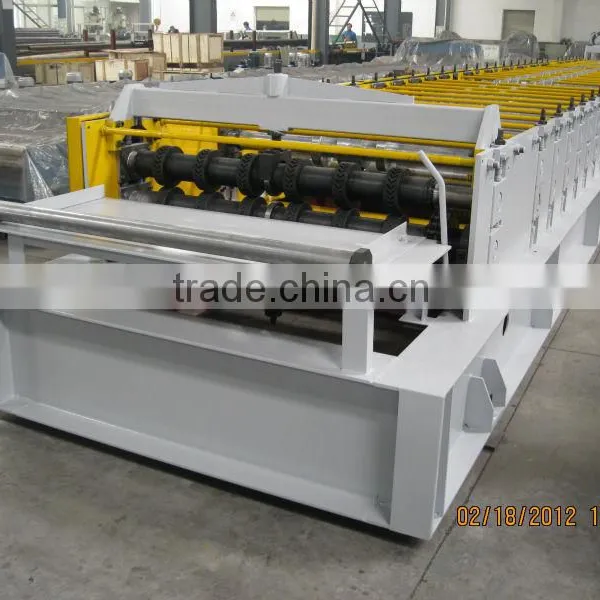

Overview of machine

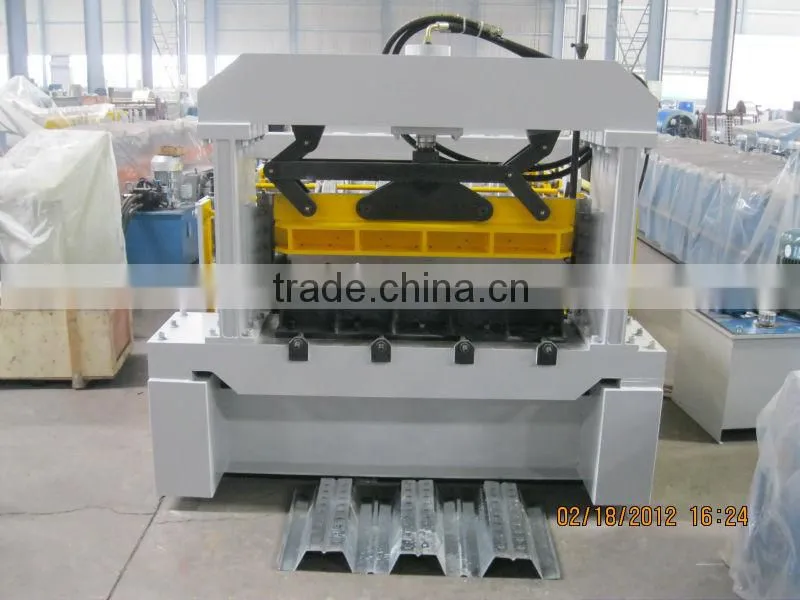

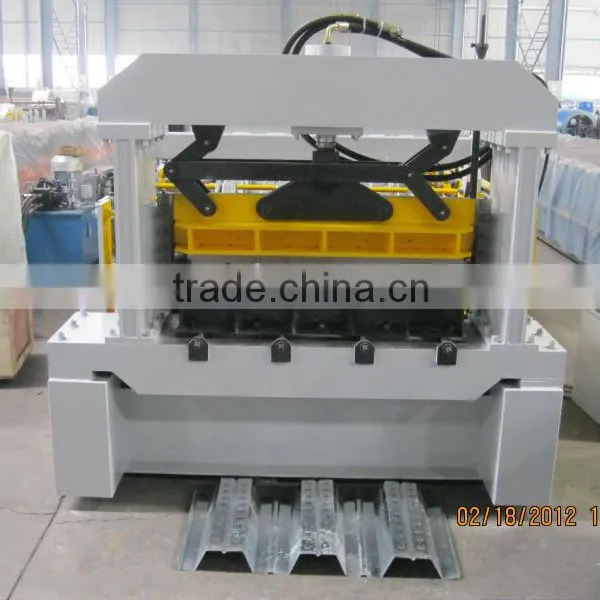

Cr12 mould steel cutter with quenched treatment.
Improved structure, more stable cutting performance.
Back of machine
1. Parameters of 0.8mm -1.2mm Trapezoidal Profile Metal Floor Deck Roll Forming Machine
Item |
Specification |
|
|
Material |
Type |
Pre-painted steel coil & galvanized coils |
Thickness |
0.8-1.2mm |
|
Yield strength |
235-345Mpa |
|
Roller material |
45#Chrome steel plate with hard chrome |
|
Speed adjusting mode |
AC Frequency |
|
Roller drive |
Decelerating motor + Chain drive |
|
Cutting mode |
Hydraulic cutting |
|
Cutter material |
Cr12 mould steel |
|
Length measurement |
Encoder |
|
Control mode |
Mitsubishi PLC |
|
Operating mode |
Button + Mitsubishi Touch screen |
|
Main motor power |
18.5KW |
|
Total power |
24KW |
|
1.1 Machine spec.
1. Size: about 16*1.8*1.6m (L*W*H)
2. Weight: About 15ton
3. Color: Make-to-order
4. Forming Speed: 20-25m/min.
5. Power : 380V/3Phase/ 50Hz
6. Main motor power: 18.5Kw(Depend on final design)
2.Components of 0.8mm -1.2mm Trapezoidal Profile Metal Floor Deck Roll Forming Machine
3. Rollers and shafts 0.8mm -1.2mm Trapezoidal Profile Metal Floor Deck Roll Forming Machine
Rollers material: No.45 Forged Steel with Hard Chrome
Shafts for rollers: Grand twice, 82mm diameter solid steel
PLC Controller for 0.8mm -1.2mm Trapezoidal Profile Metal Floor Deck Roll Forming Machine
Inside of PLC Controller for reference
0.8mm -1.2mm Trapezoidal Profile Metal Floor Deck Roll Forming Machine

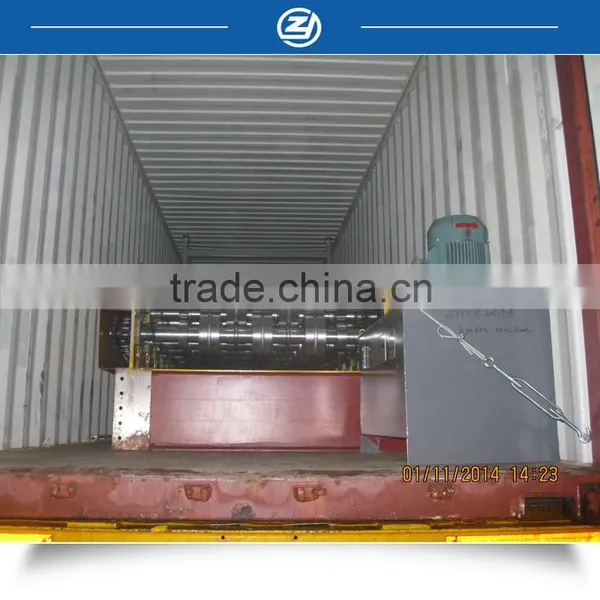

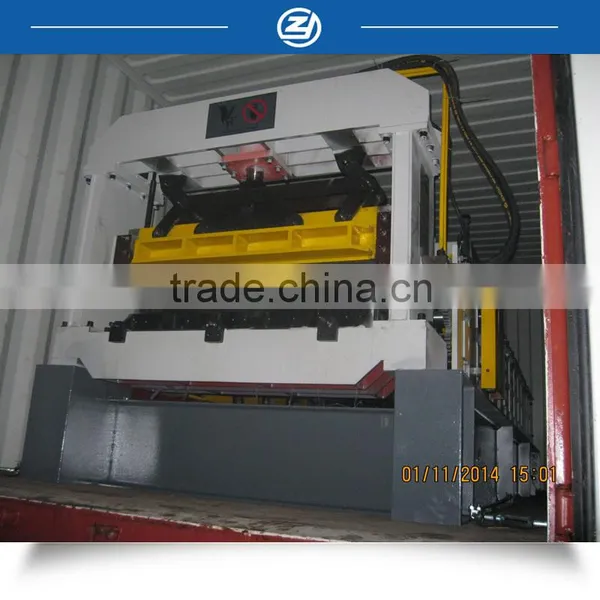

Packing condiction for reference
Generally, machine need one 40 feet container and one 20 feet container to load.
About us
1. Customize roll forming machines since 2003.
2. Capacity: 12-15 sets/month
3. Delivery: in only 5-8 weeks for urgent order
4. Company occupies 6650, in which 5650 for workshops
5. Have our own tool center. 12 sets CNC machines.
6. Technician can be sent to your factory to install the machine and train your workers
7. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers
Please feel free to contact us for more information!
