IR UV Adhesive Sticker Label Printing Machine With Die Cutting Inline For 2 Colors,5 Colors

Wenzhou Xiaohai I/E Co., Ltd.
IR UV Adhesive Sticker Label Printing Machine With Die Cutting Inline For 2 Colors,5 Colors thumbnail-1
IR UV Adhesive Sticker Label Printing Machine With Die Cutting Inline For 2 Colors,5 Colors photo-1
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Letterpress
Place of Origin:
Zhejiang, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Letterpress
Place of Origin Zhejiang, China
Brand Name XIAOHAI
Model Number RY320
Usage Bill Printer, Label Printer, Paper Printer
Automatic Grade Automatic
Voltage 220V/380V
Gross Power 8kw
Dimensions(L*W*H) 3000x1500x3000mm
Weight 2000kg
Certification ISO9001 CE
After-sales Service Provided Engineers available to service machinery overseas

IR UV Adhesive Sticker Label Printing Machine With Die Cutting Inline For 2 colors,5 colors

Product Description

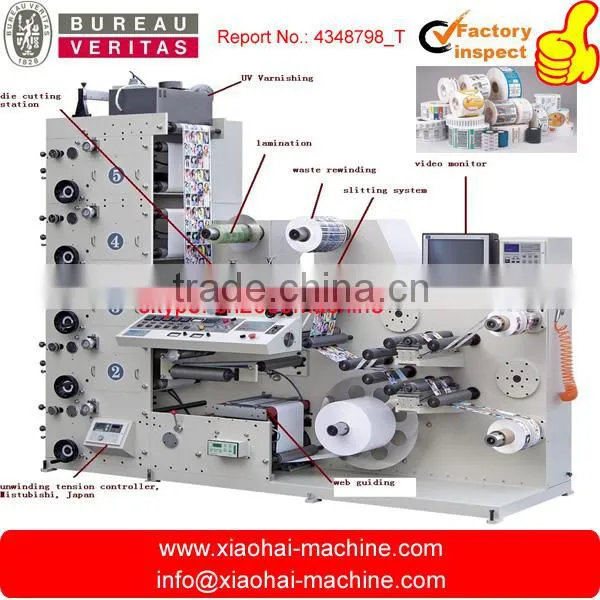

MACHINE NAME:  RY SERIES AUTOMATIC IR  LABEL FLEXO PRINTING MACHINE



 IR UV Adhesive Sticker Label Printing Machine With Die Cutting Inline For 2 colors,5 colors

Usage:
1.It is used for printing various kinds of label with samll or middle or large order quanity printing service.
Also it is an ideal printing machine for the commercial bill,card paper,high grade adhesive tape trademark.

2.Performance and Features:
1. The main motor adopts inverters.
2. Unwinder and rewinder are controlled by magnetic powder brake and clutch(Japanese Mitsbish auto tension controller).
3. Unwinder system is controlled by auto-rectify sensor.
4. The machine adopts high quality ceramic anilox roller which is with long life and wear resisting and corrosion resistance.
5. The prining unit can register in 360 degrees.Each printing unit can independently gear and loosen,so other printing units can continue do printing.
6. The printing units are all equipped with a group of infrared dryers respectively .
7. Each IR dryer device of printing unit can interchange of UV dryer device.
8.The unwinder and rewinder all are with air shafts..
9. The inking roller can automatically fall off at stoppage and transfer at low speed in order to keep the ink from being dry and solid.
10. The roll feeding, printing, polising, auto infrared drying, lainating and rolling can be processed in one processing. It is characterized by wide application, non-population of printing ink and fast drying, quick printing. So it is an ideal printing machine for the commercial bill to print high-Gradded free adhesive trademark.


Specification:



Model No.RY-320RY-450
Colors4-6colors,8 colors4-6colors,8 colors
Web maximum width320mm450mm
Max printing width 310mm440mm
Printing length175-320mm175-320mm
Max printing speed10-60m/ min10-60m/ min
Unwinder diameter 600mm600mm
Rewinder diameter

550mm

550mm

Machine weight2000kg2300kg
Machine dimension3000x1500x3000mm3000x1700x3000mm





Remark:The machine also can be equipped with UV,just inform us how many UV you want.Also you can let us your requirement on the machine,we will quote you on your demands.



IR UV Adhesive Sticker Label Printing Machine With Die Cutting Inline For 2 colors,5 colors

IR UV Adhesive Sticker Label Printing Machine With Die Cutting Inline For 2 colors,5 colors

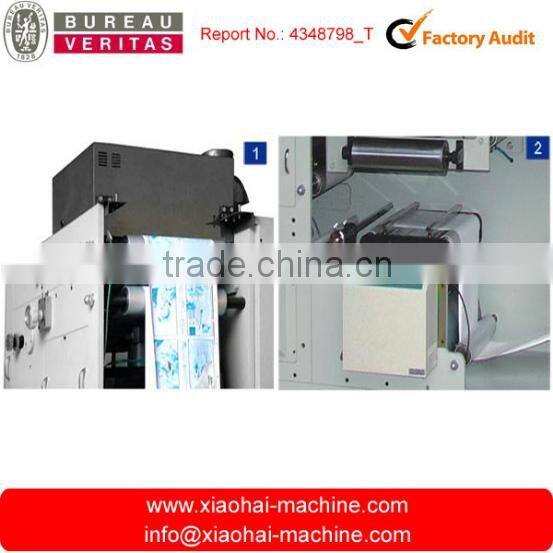

1, UV dryer

2, the correcting unit and reverse unit
