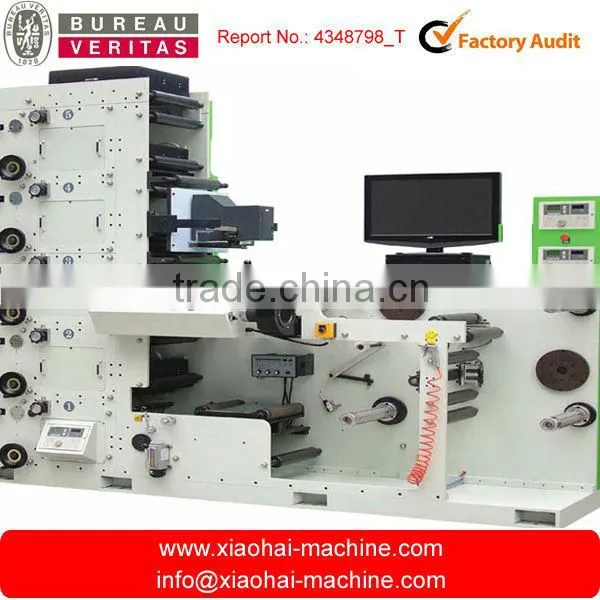

Label Printing Machine
Usage:
1,Adopt the ceramic anilox cylinder to transfer the ink,
2,Each printing unit adots 360 ° plate-adjustment.
3,Three die-cutting stations, the first and second die-cutting station can do double sides,working, the third die-cutting station can be used as sheeter.
4,computerized web-guiding system is installed in the front of printing unit,it ensures the material always in the right position.(standard configuration).
5,After sheeting in the third die-cutting station, conveyor belt can output the products orderly.
6,unwinding and rewinding tension are auto-controlled by magnetic powder.two rewinders is possible in this machine.
7,video inspecting system is an option ,it can watch the printing quality when in high speed.
8,The ik rollers will be separated from the printing roller, and keep running when the macine stops.
9,Main machine inverter is imported.
10,The machine can finish material-feeding,printing, varmshing, drying, laminating, die-cutting,rewinding and sheeter in a lump. it is an ideal machine for printing note and top-grade adhesive label.
Model |
RY-320 |
RY-450 |
RY-650 |
RY-850 |
Printing speed |
5-60M/min |
5-60M/min |
5-60M/min |
5-60M/min |
Printing color |
1-6color |
1-6color |
1-6color |
1-6color |
Max feeding width |
350mm |
48mm |
650mm |
850mm |
Max printing width |
320mm |
450mm |
620mm |
820mm |
Max unwinding diameter |
600mm |
600mm |
1000mm |
1000mm |
Max rewinding diameter |
600mm |
600mm |
1000mm |
1000mm |
Roll core inner diameter |
76mm(3inch) |
76mm(3inch) |
76mm(3inch) |
76mm(3inch) |
Printing girth (circumference) |
175-380mm |
175-380mm |
175-380mm |
175-380mm |
Overprint precision |
±0.1mm |
±0.1mm |
±0.15mm |
±0.15mm |
Overall dimensions(L×W×H) |
2400×1200×2400 |
2400×1350×2400 |
2400×1500×2400 |
2400×1600×2400 |
machine weight |
about 3000KG |
about 3500KG |
about 3800KG |
about 4000KG |
Power |
380V/AC(Three-phase) 50Hz |
380V/AC(Three-phase) 50Hz |
380V/AC(Three-phase) 50Hz |
380V/AC(Three-phase) 50Hz |
Total power |
6.8KW (not include UV device) |
8KW (not include UV device) |
10KW (not include UV device) |
12KW (not include UV device) |
|
Remark: If you have interest,please feel free to contact us,we will provide you details.thanks. |
