Home > Industrial Equipment & Components > Power & Generating Sets > Wind Generator > 4KW Wind and Solar Hybrid Energy System

4KW Wind and Solar Hybrid Energy System

Name: 4KW Wind and Solar Hybrid Energy System
Brand: SAIAM POWER
SKU: 100975275
Availability: InStock

4KW Wind and Solar Hybrid Energy System thumbnail-1

4KW Wind and Solar Hybrid Energy System thumbnail-2

4KW Wind and Solar Hybrid Energy System thumbnail-3

4KW Wind and Solar Hybrid Energy System thumbnail-4

4KW Wind and Solar Hybrid Energy System thumbnail-5

4KW Wind and Solar Hybrid Energy System thumbnail-6

4KW Wind and Solar Hybrid Energy System photo-1

4KW Wind and Solar Hybrid Energy System photo-2

4KW Wind and Solar Hybrid Energy System photo-3

4KW Wind and Solar Hybrid Energy System photo-4

4KW Wind and Solar Hybrid Energy System photo-5

4KW Wind and Solar Hybrid Energy System photo-6

US$ 9,180 - 9,180 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

SAIAM POWER

Model Number:

H400

Contact Supplier Request Quote Chat Now

Zhangzhou Saiam Power Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name SAIAM POWER

Model Number H400

Type Solar Generator

GOOD NEWS: SAIAM has been verified as a gold supplier with TRADE ASSURANCE service, which means your purchase here directly through our web is perfectly secured by Alibaba. You're highly recommended to order via TRADE ASSURANCE!

To know more about Alibaba TRADE ASSURANCE, please CLICK HERE

Product Description

OVERALL:

SAIAM H400 hybrid energy system is a plug & play generator.

Its monthly power output can reach 517KWh under the common average wind speed of 6m/s and average daily solar radiation time of 5.5 hours, it is a very capable power source for residential and commercial use.

Innovative design and CE approved quality ensure excellent utility experience!

FEATURE:

♦ Minimum installation needed and maintainance free

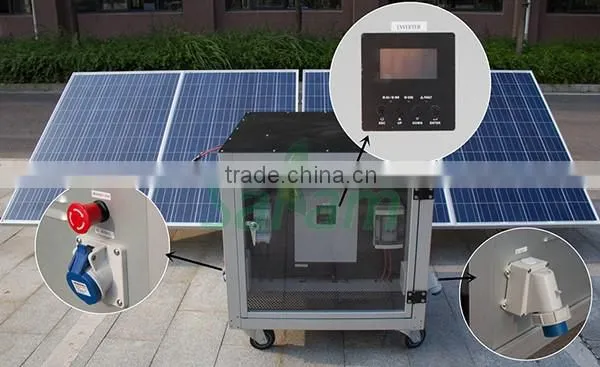

♦ System kits & control panel integrated within a compact cube

♦ NSK bearing used on the wind turbine

♦ Controller-inverter integrated kit ensures the high conversion efficiency of 95%

♦ Long lifespan

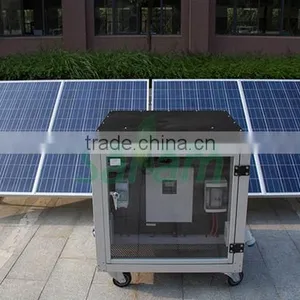

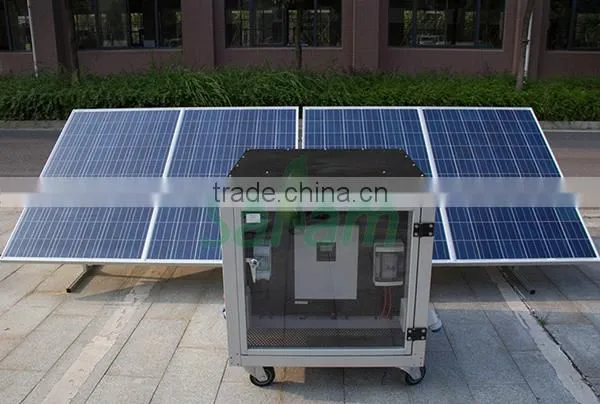

PHOTOGRAPHIC SHOW:

SPECIFICATION:

H400 Overall Tech Specification
PV Power	2000W
Number of PV Modules	8*250W
Rated Wind Power	2000W
Number of Wind Generator	1*2000W HAWT
Inverter Power	4000W
Batteries	16pcs 6V 225A lead acid battery
Battery Capacity	21600W
Case Dimension	10095102cm
Case Net Weight	560kg
Total Net Weight	815kg

Solar Cube Tech Specification (M200)
PV Power (Poly)	2000W
Inverter Power	3200W
Battery	16pcs 6V 225Ah
Battery Capacity	21600W (24V 225Ah)
Case Dimension	10095102cm
Case Weight	56kg
Total Weight (Case & panels)	740kg
Optional Tweaks	DC Output 5V/12V/24V/48V AC Output 110V 60Hz Mounting systems for solar panels PV string combiner box Remote Monitor Control System Add Recharge from Wind Turbine

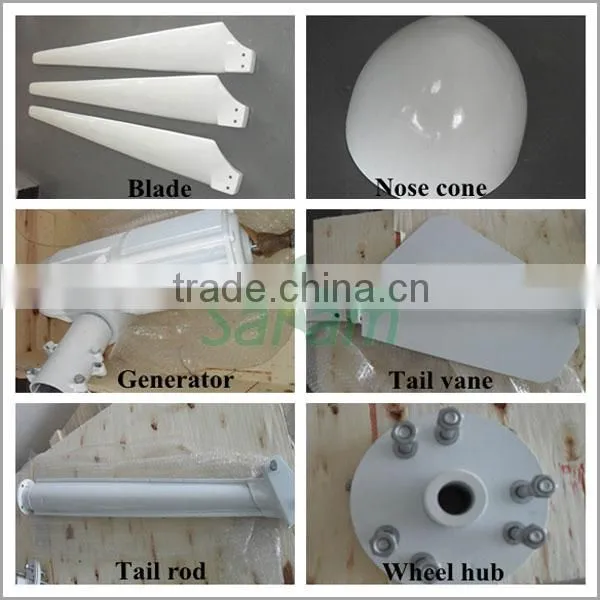

Wind Turbine Tech Specification (SA-2KW)
Performance
Rated power	2000W @11m/s
Peak power	3000W
Start-up wind speed	3m/s
Cut-in wind speed	3.5m/s
Survival wind speed	40m/s
Rotor
Rotor diameter	3.2m
Swept area	8.04m2
Blade	3pcs reinforced fiber glass
Blade length	154cm
Shell material	Precision steel
Rated RPM	380
Net weight	75kg
Others
Generator type	3-phase AC PMG
Speed regulation & protection	Yawing + electromagnetic brake
Controller rated voltage	DC 48-300V
Suggested battery capacity	4pcs 200AH/12VDC
Suggested tower	6m guyed cable/7m free standing tower
Working temperature	-40 - 60°C

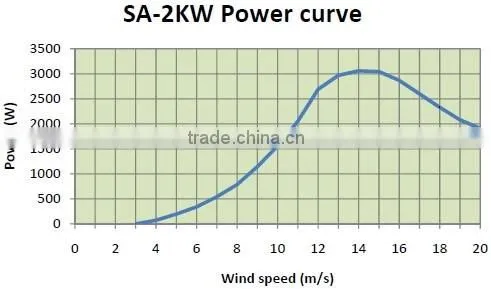

Power curve

APPLICATION:

DETAIL:

Packaging & Shipping

SAIAM H400 Packing
Packing type	3 Plywood cases
Carton dimension	120110120cm, 17211240cm, 1636332cm
Gross weight	940kg
Loadability	10sets/20'GP

Tips:

Sample order of H400 is acceptable, it is recommended to be delivered via LCL sea shipping. Please contact us to get the detailed suggestion on delivery.

RELATIVE PRODUCTS

Company Information

QUALITY CONTROL:

CERTIFICATION:

FAQ

Q: How to place order via TRADE ASSURANCE?

A: On the top of this page, please click "Start Order" button.

Q: Does the price of SA-1KW listed above include the charge controller and others? If not, where can I purchase the controller and inverter, etc.?
A: The listed price of is for wind turbine only (generator + blades), not including controller, inverter and other parts. Please contact us for the controller, inverter and other system parts for on-grid/off-grid application.

Q: What is the working voltage of SA-1KW for my battery bank or grid utility?
A: Please find our recommended working voltage for SA-1KW below:
SA-1KW: 24V/48V(off grid)/220V(on grid)
SA-2KW: 48V/96V(off grid)/220V(on grid)
SA-3KW: 48V/96V/120V(off grid)/220V(on grid)
SA-5KW: 96V/120V/240V(off grid)/220V(on grid)
SA-10KW: 120V/240V/360V(off grid)/380V(on grid)

Q: What thickness of pole shall I use for SA-1KW and what would be the height approximately of the section that we would add on to your unit?
A: We recommend you use 3mm-5mm thickness, 6-12m height guyed cable tower or 5mm-8mm thickness, 6-15m height free standing tower for our HAWT 1KW-10KW. Please contact us to get more tower information.

Q: How do your HAWTs realize the security protection during heavy winds?
A: Multi-protection ensure sour HAWTs' speed regulation and protection during high winds: yawing + electromagnetic brake(by controller) + manual brake(available on HAWT 5KW and 10KW models).
