The FUTURE of...
SOLAR POWER SYSTEM
When you get tired of or not familiar with installing the whole solar power system step by step, part after part, we know, all you want is a machine allows you to PLUG & PLAY.

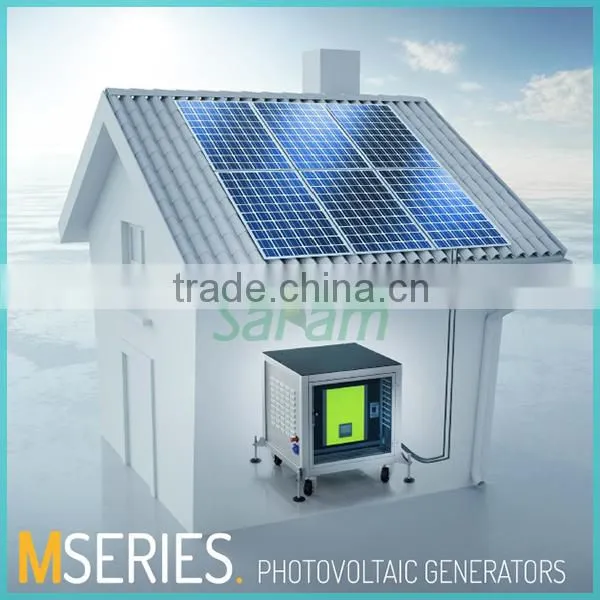

That's the reson why SAIAM gave birth to its M series PV generators, which have brought the form of PV system into the next generation.
What advantages does M series PV generator carry?
Convenient
PLUG & PLAY

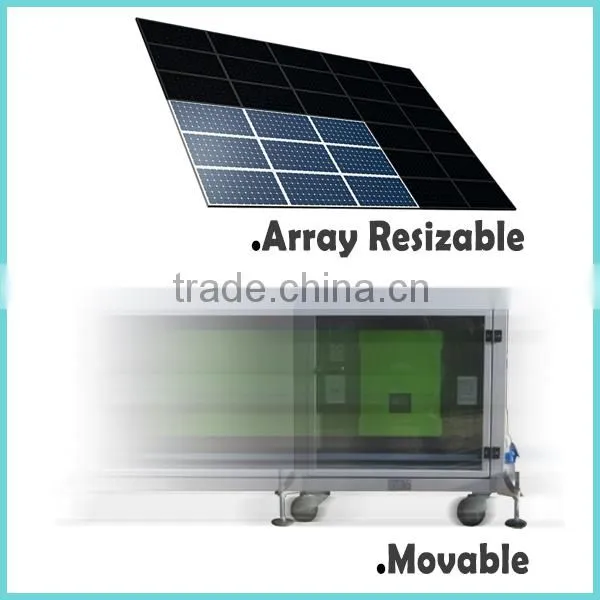

Mobility
Powerful

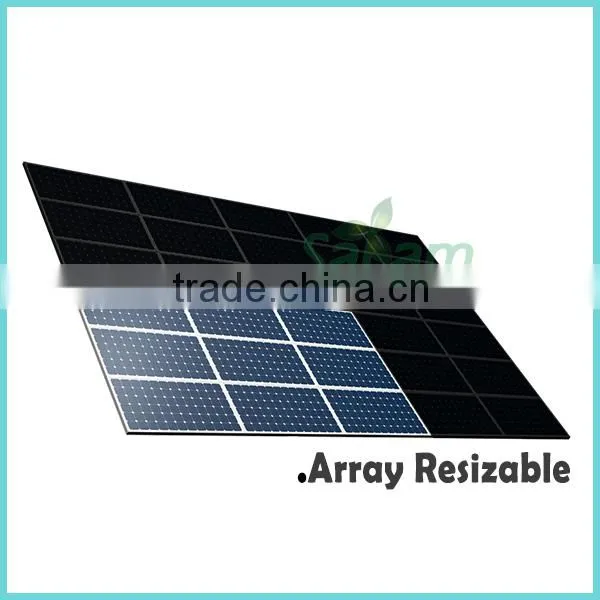

EXPANDABILITY
Stable
Triple-Input Availability
And...

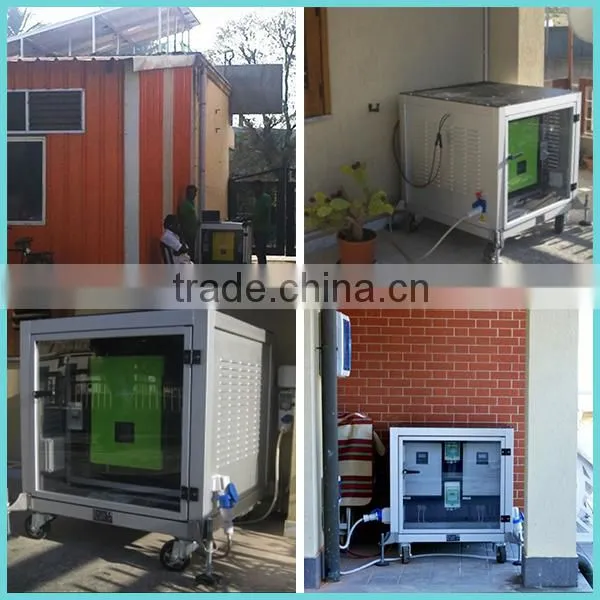

Actually, by far, we've supported many projects of many clients' with this solar energy system.
Tech Specification
System Overall
| M50 | |
| PV Power (Poly) | 1000W |
| Inverter Power | 1600W |
| Battery | 4pcs 6V 225Ah |
| Battery Capacity | 5400W (24V 225Ah) |
| Case Dimension | 49*49*90cm |
| Case Weight | 130kg |
| Total Weight (Case & panels) | 220kg |
| Optional Tweaks |
DC Output 5V 12V AC Output 110V 60Hz Mounting systems for solar panels Remote Monitor Control System Add Recharge from Wind Turbine |
| Battery Duration | |
| In the total absence of sunlight, how many working hours are remaining? This chart gives a clear indication. | |
| Power | Time |
| 100W | 18.5h |
| 500W | 3.7h |
| 1000W | 1.8h |
| 3000W | - |
| 4000W | - |
| 6000W | - |
| 8000W | - |
| Daily Production (KWh/day) | |||||
| M100 | Rome | Jo'Burg | Mexico City | Sydney | |
| January | 0.9 | 2.51 | 2.35 | 2.27 | |
| July | 2.54 | 1.63 | 2.37 | 1.59 | |
| Average anual | 1.72 | 2.14 | 2.44 | 1.98 | |
Solar Panel
| Poly 250W | |
| Electrical Characteristics | |
| At standard test-conditions (STC): 1000W/m², cell temperature 25ºC, AM1.5 | |
| Max power at STC | 250W |
| Voltage at max power | 29.6V |
| Current at max power | 8.45A |
| Open circuit voltage | 37.9V |
| Short circuit current | 9.13A |
| Module efficiency | 15.3% |
| α P | -0.48%/K |
| α Voc | -0.33%/K |
| α Isc | +0.02%/K |
| NOCT | 46±3ºC |
| Mechanical Characteristics | |
| Panel cell type | Poly |
| Glass | 3.2mm high transmission, low iron, tempered glass |
| Frame | Anodized Aluminum Alloy |
| Junction box | IP67 |
| Dimension | 164*99*45cm |
| Weight | 22kg |
| Limit Value | |
| Max system voltage | 1000V |
| Working temperature | -40 to 85ºC |
| Largest mechanical load | 540kg/m² |
Battery
| 12V 110Ah | |
| Cells per unit | 6 |
| Voltage per unit | 12 |
| Capacity | 110Ah @10hr-rate to 1.8V per cell @25ºC |
| Weight | Approx. 33kg (±2%) |
| Max discharge current | 1100A (5sec) |
| Internal resistance | Approx. 5mΩ |
| Operating temperature range |
Discharge: -20ºC~60ºC Charge: 0ºC~50ºC Storage: -20ºC~60ºC |
| Normal operating temperature range | 25ºC±5ºC |
| Float charging voltage | 13.6 to 13.8 VDC/unit @25ºC on average |
| Recommended max charging current | 33A |
| Equalization and cycle service | 14.6 to 14.8 VDC/unit @25ºC on average |
| Self discharge | The Valve Regulated Lead Acid (VRLA) battery can be stored for more than 6 months at 25ºC. Self-discharge ratio less than 3% per month at 25ºC. Please charge the battery before using |
| Terminal | Terminal F9 |
| Container material | A.B.S. UL94-HB, UL94-V0 optional |

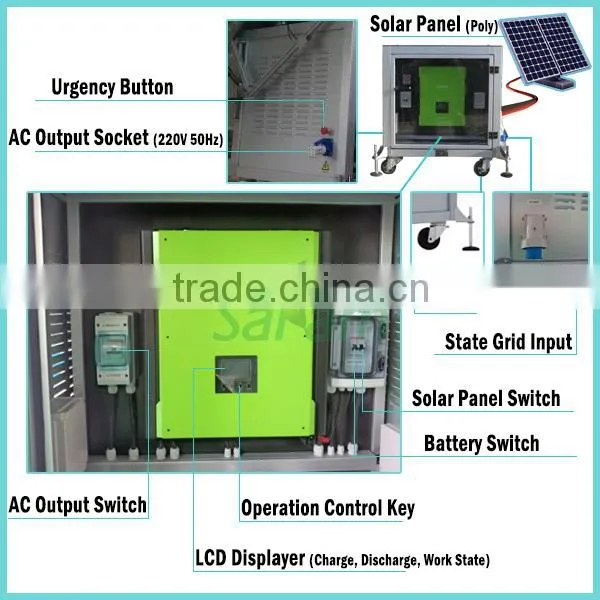

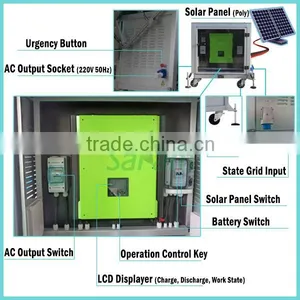

Details
Exploded View

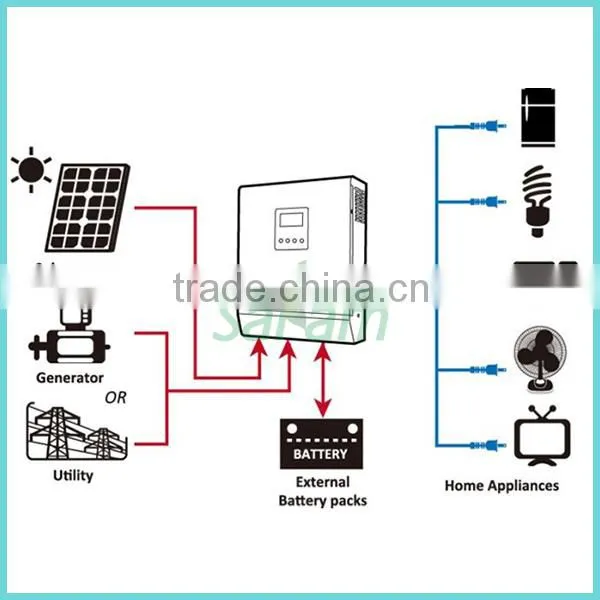

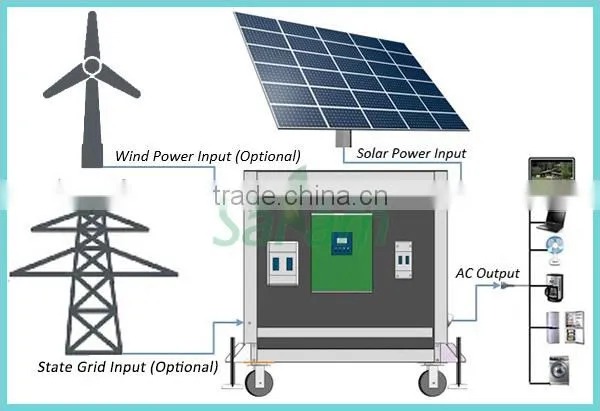

System Wiring Diagram
PS: When the system completely discharges, system output would be shut down or convert to the state grid. When the battery is charged half, the system will automatically restore power supply again. Please turn-off the machine when you are not using it to conserve energy.
Packing
| M50 500W Solar Power System Packing | |
| The entire machine is fully assembled before packing, then packed into a plywood case. And the solar panels are pabked into another plywood case. | |
| Package type | Plywood case |
| Quantity per package | 1 set / 2 cases |
| Dimension | 60*60*62cm, 172*112*10cm |
| Gross weight | 188kg |
| Loadability | 67 sets / 20'GP; 134 sets / 40'GP; 163 sets / 40'HQ |
| |

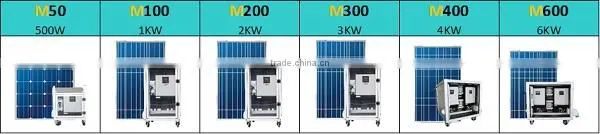

M100: Click Here
