OVERALL:

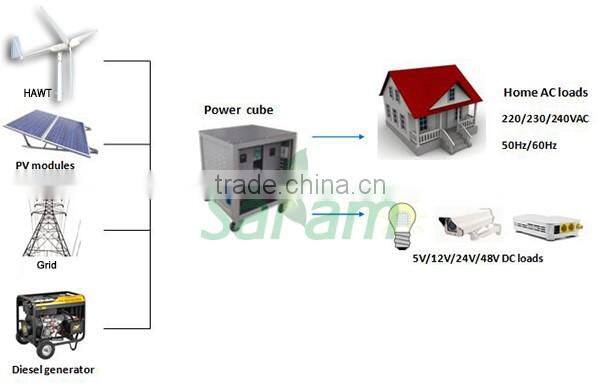

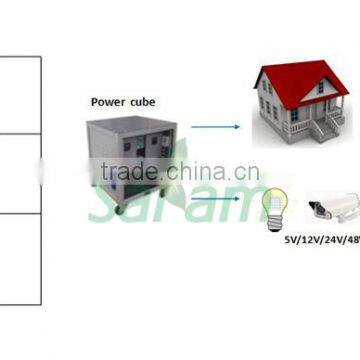

SAIAM H200 wind solar hybrid power system is a plug & play generator.
Its monthly power output can reach 314KWh under the common average wind speed of 6m/s and average daily solar radiation time of 5.5 hours, it is a very capable power source for residential and commercial use.
Innovative design and CE approved quality ensure excellent utility experience!
FEATURE:
♦ Minimum installation needed and maintainance free

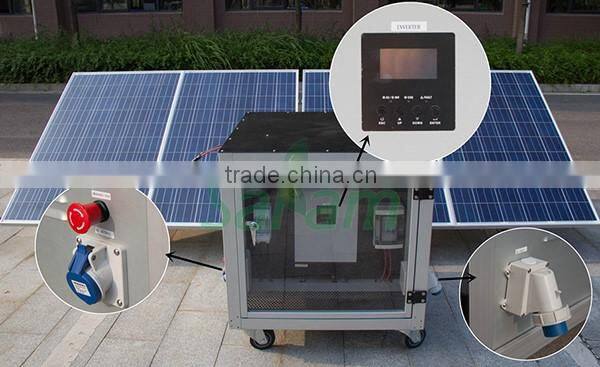

♦ System kits & control panel integrated within a compact cube
♦ NSK bearing used on the wind turbine
♦ Controller-inverter integrated kit ensures the high conversion efficiency of 95%
♦ Long lifespan

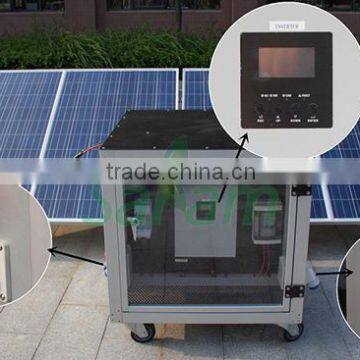

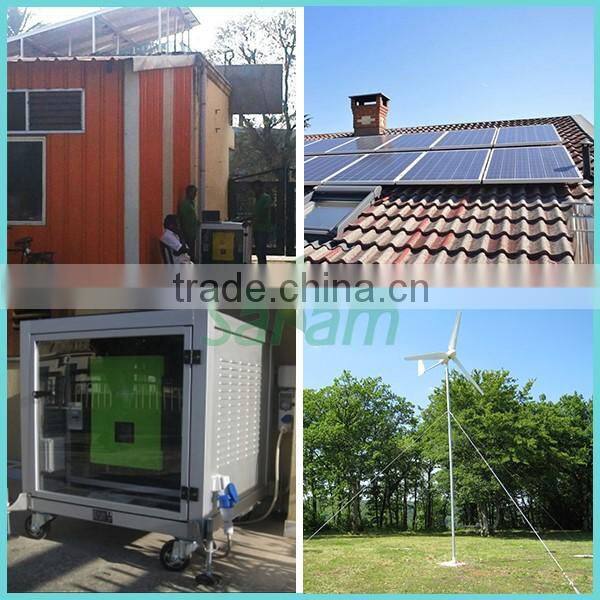

PHOTOGRAPHIC SHOW:
SPECIFICATION:
H200 Overall Tech Specification | |
PV Power |
1000W |
Number of PV Modules |
4*250W |
Rated Wind Power |
1000W |
Number of Wind Generator |
1*1000W HAWT |
Inverter Power |
3200W |
Batteries |
8pcs 6V 225A lead acid battery |
Battery Capacity |
10800W |
Case Dimension |
100*95*102cm |
Case Net Weight |
310kg |
Total Net Weight |
450kg |
| Solar Cube Tech Specification (M100) | |
| PV Power (Poly) | 1000W |
| Inverter Power | 1600W |
| Battery | 4pcs 6V 225Ah |
| Battery Capacity | 5400W (24V 225Ah) |
| Case Dimension | 49*49*90cm |
| Case Weight | 310kg |
| Total Weight (Case & panels) | 400kg |
| Optional Tweaks |
DC Output 5V 12V AC Output 110V 60Hz Mounting systems for solar panels PV string combiner box Remote Monitor Control System Add Recharge from Wind Turbine |

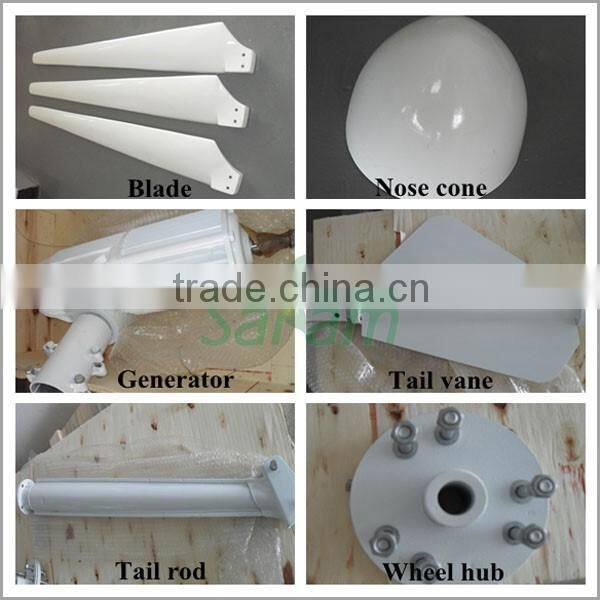

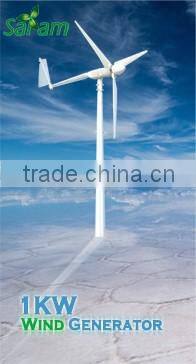

Wind Turbine Tech Specification (SA-1KW) | |
Performance | |
Rated power |
1000W @9.7m/s |
Peak power |
1500W |
Start-up wind speed |
3m/s |
Cut-in wind speed |
3.5m/s |
Survival wind speed |
40m/s |
Rotor | |
Rotor diameter |
2.8m |
Swept area |
6.15m2 |
Blade |
3pcs reinforced fiber glass |
Blade length |
134cm |
Shell material |
Precision steel |
Rated RPM |
380 |
Net weight |
56kg |
Others | |
Generator type |
3-phase AC PMG |
Speed regulation & protection |
Yawing + electromagnetic brake |
Controller rated voltage |
DC 24-240V |
Suggested battery capacity |
4pcs 150AH/12VDC |
Suggested tower |
6m guyed cable/free standing tower |
Working temperature |
-40 - 60°C |

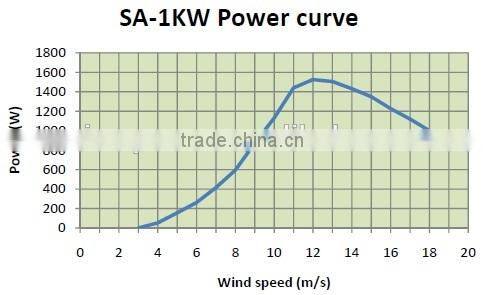

Power curve | |
| |
| SAIAM H200 Packing | |
| Packing type | 3 Plywood cases |
| Carton dimension | 60*60*90cm, 172*112*20cm, 142*52*37cm |
| Gross weight | 535kg |
| Loadability | 28sets/20'GP |
| |
Tips:
Sample order of H200 is acceptable, it is recommended to be delivered via LCL sea shipping. Please contact us to get the detailed suggestion on delivery.
| ||||
|
|
|
|
|

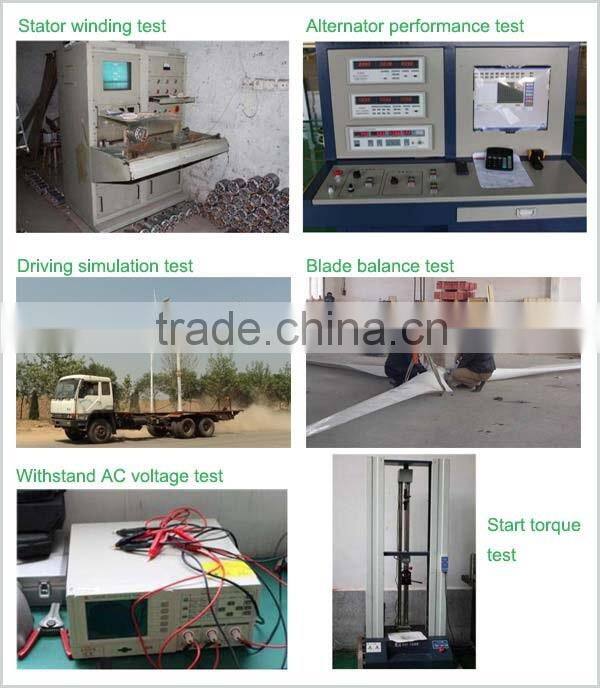

QUALITY CONTROL:
Q: How to place order via TRADE ASSURANCE?
A: On the top of this page, please click "Start Order" button.
Q: Does the price of SA-1KW listed above include the charge controller and others? If not, where can I purchase the controller and inverter, etc.?
A: The listed price of is for wind turbine only (generator + blades), not including controller, inverter and other parts. Please contact us for the controller, inverter and other system parts for on-grid/off-grid application.
Q: What is the working voltage of SA-1KW for my battery bank or grid utility?
A: Please find our recommended working voltage for SA-1KW below:
SA-1KW: 24V/48V(off grid)/220V(on grid)
SA-2KW: 48V/96V(off grid)/220V(on grid)
SA-3KW: 48V/96V/120V(off grid)/220V(on grid)
SA-5KW: 96V/120V/240V(off grid)/220V(on grid)
SA-10KW: 120V/240V/360V(off grid)/380V(on grid)
Q: What thickness of pole shall I use for SA-1KW and what would be the height approximately of the section that we would add on to your unit?
A: We recommend you use 3mm-5mm thickness, 6-12m height guyed cable tower or 5mm-8mm thickness, 6-15m height free standing tower for our HAWT 1KW-10KW. Please contact us to get more tower information.
Q: How do your HAWTs realize the security protection during heavy winds?
A: Multi-protection ensure sour HAWTs' speed regulation and protection during high winds: yawing + electromagnetic brake(by controller) + manual brake(available on HAWT 5KW and 10KW models).
