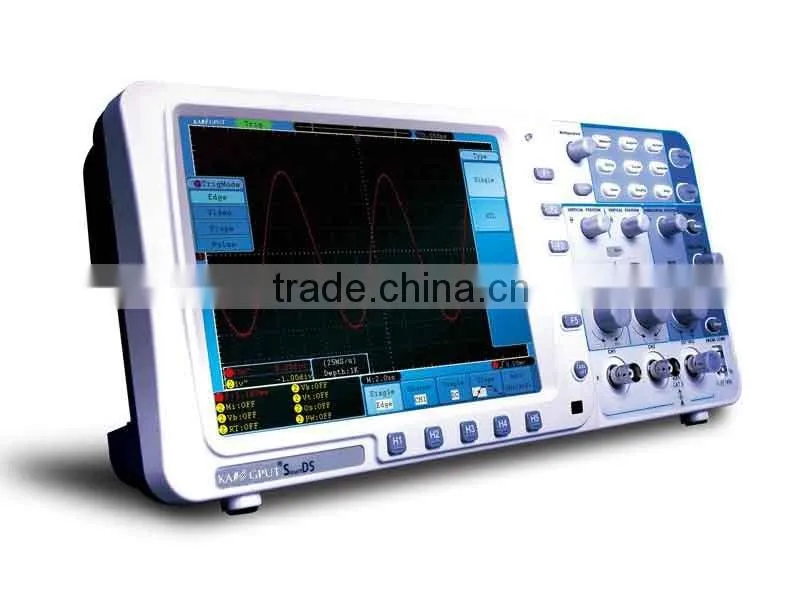

NEW 8inch Smart DS Series dual digital storage pc oscilloscope(60MHz) (SDS6062)
Application:
Design and Debug
Circuit function test
Mixed signal circuit test
Identified signals logic information
Education & Training
Models in the SmartDS Series
Model: SDS6062
Bandwidth: 60MHz
Sample rate(Real time) :500MS/s
Horizontal Scale:(S/div) 5ns/div-100s/div, step by 1-2-5
Rise time (at input, typical): 5.8ns
Channels: Dual
Display: 8" color LCD,TFT display,800x600 pixels,65535 colors
Dimension :340mm155mm70mm
Weight: 1.82k
Specification
Vertical System
Vertical resolution (A/D) 8 bits Resolution (2 channels simultaneously )
Vertical sensitivity 2mV/div-10V/div(at input)
Displacement 10div(5mV-10v)
Analog Bandwidth 60MHz
Single bandwidth Full bandwidth
low frequency 5Hz
Rise time (at input, typical) 5.8ns
DC gain accuracy 3%
DC accuracy(Average) Average 16: (3% rdg + 0.05 div) for V
Measurement
Cursor measurement V and T between cursors
Automatic measurement Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time,Fall Time, DelayA→B , DelayA→B , +Width, -Width, +Duty, -Duty
Waveform Math +, -, , / ,FFT
Waveform storage 15 waveforms
Lissajou’s figure Bandwidth Full bandwidth
Phase difference 3 degrees
Communication interface USB, support USB flash disk storage USB,SVGA,support USB flash disk storage,LAN
Trigger
Trigger level range 6 divisions from screen center
Trigger level accuracy 0.3div
Horizontal Trigger displacement Pre-trigger: 655 div,Post-trigger: 10 div
Trigger Holdoff range 100ns~10s
Edge trigger Rising,Falling
Pulse Trigger Trigger status Positive pulse: negative pulse
Pulse width 30ns~10s
Video Trigger NTSC,PAL,SECAM
Slope Treigger Trigger status Positive pulse: negative pulse
Time setting 30ns~10s
Alternate Trigger Edge, Pulse, Video, Slope
Waveform record
Waveform: quantity 1-1000
Interval time :1ms-1000s
Display 8" color LCD,TFT display,800x600 pixels,65535 colors
Power Supply 100-240 VAC RMS, 50/60Hz, CAT II
Power comsumption 18W
Dimension 340mm155mm70mm
