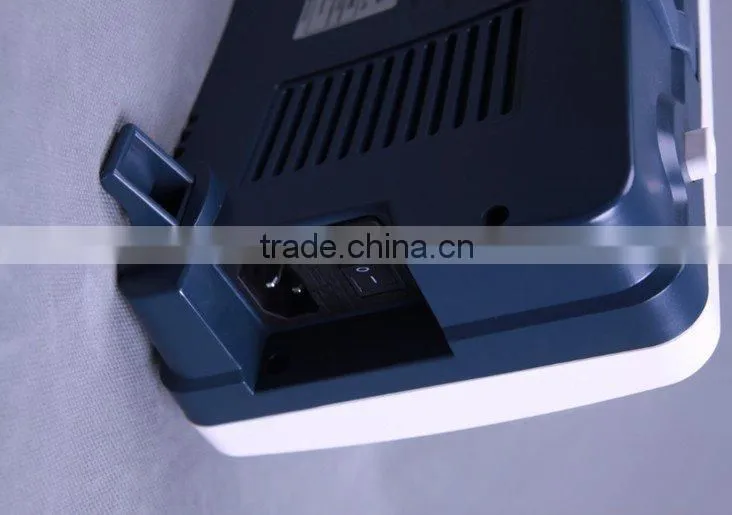

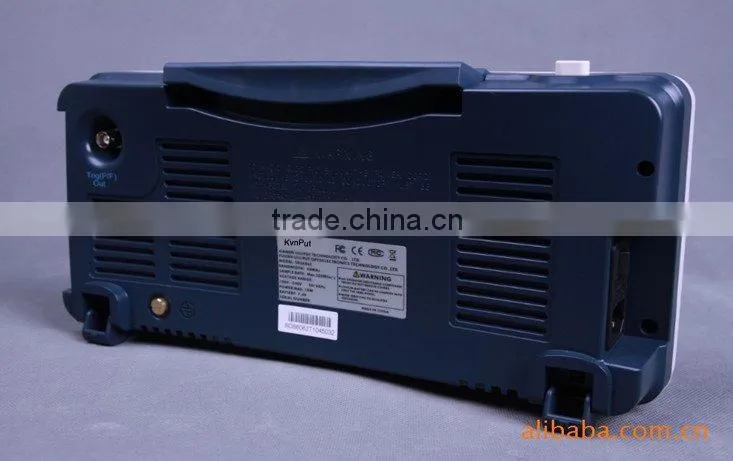

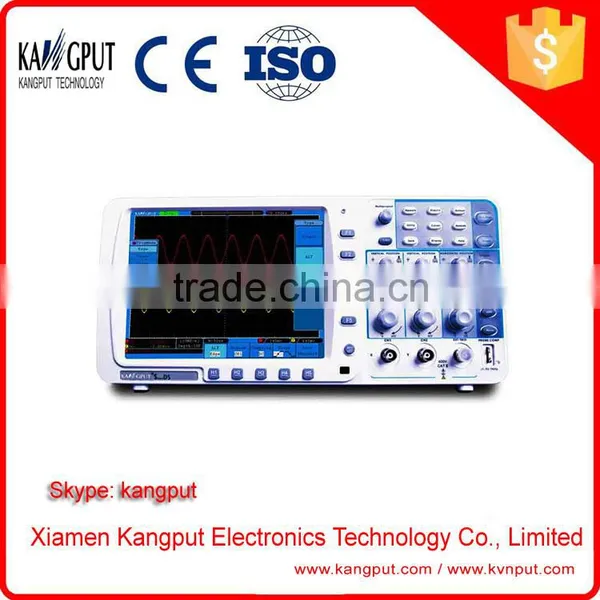

2015 NEW 8''SmartDS Series Dual Digital Storage Oscilloscope(100MHz)
SDS7102
Model |
SDS6062 |
SDS7072 |
SDS7102 |
SDS8102 |
SDS8202 |
SD8302 |
SD9302 |
||
Bandwidth |
60MHz |
70MHz |
100MHz |
200MHz |
300MHz |
||||
Sample Rate |
500MS/s |
1GS/s |
2GS/s |
2.5GS/s |
3.2GS/s |
||||
Horizontal Scale (s/div) |
5ns/div~100s/div,step by 1~2~5 |
2ns/div~100s/div, step by 1~2~5 |
1ns/div~100s/div, step by 1~2~5 |
||||||
Rise Time |
≤5.8ns |
≤5ns |
≤3.5ns |
≤1.7ns |
≤1.17ns |
||||
Display |
8”color LCD, 800 x 600 pixels, 65535 colors |
||||||||
Channel |
2 + 1 (external) |
||||||||
Record Length |
10M |
||||||||
Input Coupling |
DC, AC, and GND |
||||||||
Input Impedance |
1MΩ ± 2%, in parallel with 10pF ± 5pF |
||||||||
Channel Isolation |
50MHz : 100 : 1, 10MHz : 40 : 1 |
||||||||
Max Input Voltage |
400V (PK - PK) (DC + AC, PK - PK) |
||||||||
DC Gain Accuracy |
±3% |
||||||||
DC Accuracy |
average≥16 : ±(3% reading + 0.05 div) for Δ V |
||||||||
Probe Attenuation Factor |
1X, 10X, 100X, 1000X |
||||||||
LF Respond (AC, -3dB) |
≥10Hz (at input, AC coupling, -3dB) |
||||||||
Sampling Rate / Relay Time Accuracy |
±100ppm |
||||||||
Interpolation |
sin (x) / x |
||||||||
|
Interval ( Δ T) Accuracy (full bandwidth) |
Single:±(1 interval time + 100ppm × reading + 0.6ns); Average>16 : ±(1 interval time + 100ppm × reading + 0.4ns) |
||||||||
Vertical Resolution (A/D) |
8 bits (2 channels simultaneously) |
||||||||
Vertical Sensitivity |
2mV/div~10V/div |
||||||||
Trigger Type |
Edge, Pulse, Video, Slope, Alternate |
||||||||
Trigger Mode |
Auto, Normal, Single |
||||||||
Trigger Level |
±6 divisions from screen center |
||||||||
Acquisition modes |
Sample, Peak Detect, and Average |
||||||||
Line / Field Frequency (video) |
NTSC, PAL and SECAM standard |
||||||||
Cursor Measurement |
ΔV, and ΔT between cursors |
||||||||
Automatic Measurement |
Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot, Rise Time, Fall Time, Delay A→B, Delay A→B, +Width, -Width, +Duty, -Duty |
||||||||
Waveform Math |
+, -, ×, ÷, invert, FFT |
||||||||
Waveform Storage |
15 waveforms |
||||||||
|
Lissajous Figure |
Bandwidth |
full bandwidth |
|||||||
Phase Difference |
±3 degrees |
||||||||
Communication Interface |
USB, USB flash disk storage, Pass / Fail, LAN, VGA (optional), or RS232 (optional) |
||||||||
Cymometer |
available |
||||||||
Power Supply |
100V - 240V AC, 50/60Hz, CAT Ⅱ |
||||||||
Power Consumption |
< 24W |
||||||||
Fuse |
2A, T class, 250V |
||||||||
Battery (optional) |
7.4V, 8000mA |
||||||||
Dimension (W × H × D) |
340 × 155 × 70 (mm) |
||||||||
Weight (without package) |
1.80 kg |
||||||||
10M record length with highest 1GS/s sample rate;AutoScale function to simplify the operation;
Smart design body with easy workplace;Come with SVGA port to enlarge waveform display;
Super capacity lithium battery for optional.
Main Features:
1.10M record length for each channel
2.Autoscale function
3.Large 8-inch 800x600 pixels display
4.Pass/Fail function
5.SVGA output
6.Waveform record & replay
