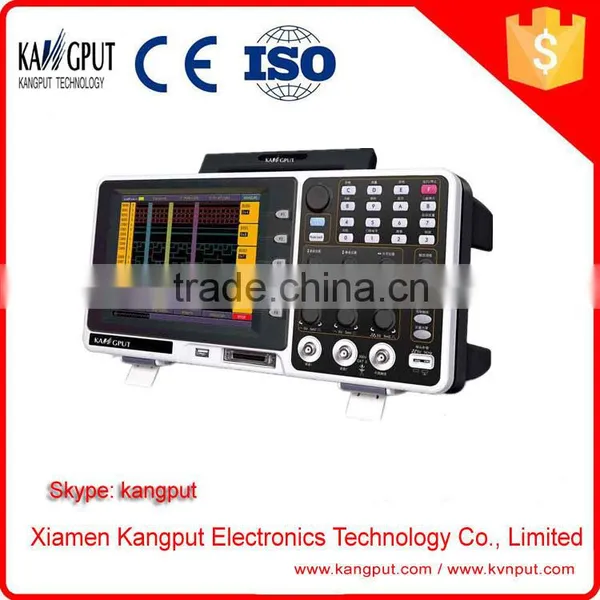

8inch TFT LCD digital oscilloscope with logic analizer Bandwidth 100MHz(MSO7102T)
Model: MSO7102T
Performance Specifications
Model | MSO7062TD | MSO7102TD | MSO8102T | MSO8202T | |
Bandwidth | 60MHz | 100MHz | 200MHz | ||
Sample Rate (real time) | 1GS/s | 2GS/s | |||
Rise Time | ≤5.8ns | ≤3.5ns | ≤1.7ns | ||
Display | 8.0'' color LCD , TFT screen, 640 × 480 pixels | ||||
Channel | dual + external trigger | ||||
Horizontal Scale (s/div) | 2ns/div~100s/div, step by 1~2~5 | 1ns/div~100s/div, step by 1~2~5 | |||
DC Accuracy (average) | average>16 : ±(3% reading + 0.05div) for V | ||||
Vertical Sensitivity | 2mV/div - 10V/div | ||||
DC Gain Accuracy | ±3% | ||||
Vertical Resolution (A/D) | 8 bits (2 channels simultaneously) | ||||
Interpolation | sin (x) / x | ||||
Max Input Voltage | 400V (DC + AC, PK - PK ) | ||||
Probe Attenuation Factor | 1X,10X,100X,1000X | ||||
Trigger Mode | Edge, Video, Alternate, Pulse, Slope | ||||
Acquisition Mode | Normal, Peak Detect, and Average | ||||
Record Length | max 2M points | ||||
Waveform Storage | 4 waveforms | ||||
Automatic Measurement | Vpp, Vavg, RMS, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot, Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Delay A→B, Delay A→B | ||||
Waveform Math | +, -, ×, ÷, invert, FFT | ||||
Power Supply | 100 - 240V AC, 50Hz / 60Hz, CATⅡ | ||||
Lissajous Figure | Bandwidth | 60MHz | 100MHz | 200MHz | |
Phase Difference | ±3 degrees | ||||
Communication Interface | USB host, and USB device | ||||
Fuse | 1A, T class, 250V | ||||
Dimensions (W × H × D) | 370 × 180 × 120 (mm) | ||||
Weight (without package) | 2.20 kg | ||||
Performance Specifications
Model | MSO7062TD | MSO7102TD | MSO8102T | MSO8202T | |
Sample Rate (real time) | 20S/s - 2GS/s | ||||
Bandwidth | 100MHz | 200MHz | |||
Channel | 16 | ||||
Record Length | max 4M each channel | ||||
Input Impedance | 660KΩ ± 5%, in parallel with 15 ± 5pF | ||||
Trigger Mode | Edge, Bus, State, Data Alignment, Data Width, Distributed Queue | ||||
Trigger Position Setting | Pre-trigger, Mid-trigger, and Re-trigger | ||||
Threshold Voltage | ±6V (4 settings) | ||||
Input Signal Range | ±30V | ||||
Data Search | available | ||||
Data System | binary, decimal, hex | ||||
Digital Filter | 0, 1, 2 optional | ||||
Setting Storage | 10 settings | ||||
USB Flash Disk Storage | available | ||||
Accessories:
