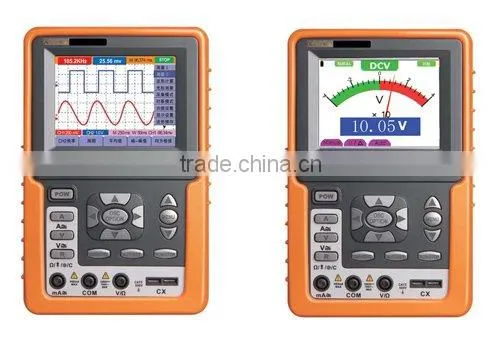

HDS1021M Single channel Oscilloscope
Model: HDS1021M
Bandwidth:20M
Sample rate (Real time):100MS/s;
Horizontal Scale(S/div):5ns/div-100s/div,step by 1-2.5-5
Rise time (at input typical):≤17.5ns
Channels:Single
Display:3.5 color display with TFT panel(320x240 pixels)
Input coupling:DC, AC,GND;
Acquisition modes:Sample, Peak Detect and Average;
Input impedance:1MΩ±2%, in parallel with20pF±3pF
Probe attenuation factor:1X,10X,100X,1000X
Max. input voltage:400V (PK-PK)DC + AC PK-PK , 1MΩ input impedance, Probe attenuation 10:1)
Record length:Max.6K on each channel
Interpolation:(sin x)/x;
Vertical resolution (A/D):8 bit (2 channels simultaneously )
Vertical sensitivity:5mV/div5V/div(at input);
DC gain accuracy:±3%
Trigger type:Edge, Video
Trigger level: ±6 divisions from screen center
Trigger mode:Auto, Normal, Single
Automatic measurement:Vpp, Vavg, RMS, Frequency, Period, Vmax,
Vmin, Vtop, Vbase, Width, Overshoot, Pre - shoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Delay A B, Delay A B
Waveform Math:Unavailable
Waveform storage:4 waveforms
Communication interface:USB
Power supply: 100V-240V AC, 50/60Hz;
Li-ion battery:7.4V,6 hours operation
