Professional and High Quality TV Signal Level Meters HSV-128

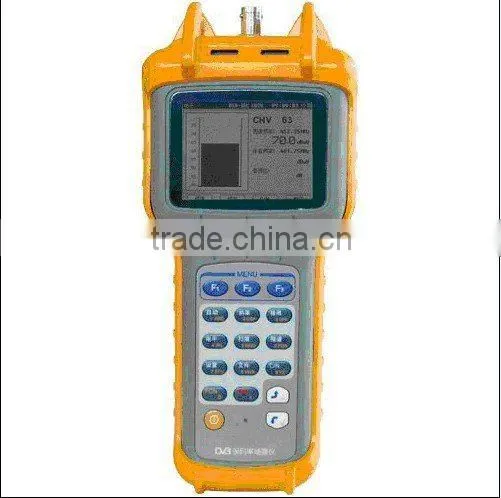

Professional and High Quality TV Signal Level Meters HSV-128 photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
HSV
Model Number:
HSX-128
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin China
Brand Name HSV
Model Number HSX-128

Specifications

HSV-128a portable signal level meter is a powerful device designed for the CATV engineers and managers.

                                 professional and high quality TV Signal Level Meters HSV-128

HSV-128  is a portable signal level meter is a powerful device designed for the CATV engineers and managers.

This  device can measure data for every technical indicator of the CATV system with high-resolution color display.. This device is special for its function of analyzing all the technical indicators generated by the signal TV.

professional and high quality TV Signal Level Meters HSV-128





                                                           Technical Data



Frequency/ Channel



       Frequency range: 5(47)MHz ~ 870MHz



      Channel range:???



      Frequency resolution: 10 KHz



      Measurement bandwidth: 280KHz



Level Measurement



      Range: 25dBuV ~ 120 dBuV



      Accuracy: ±2dB



      Resolution: 0.1 dB



      Scan: peak value demodulation

      Input impedance: 75Ω



Carrier-Noise Ratio(C/N)



      Input range: 70dBuV—105dBuV



      Accuracy: ±2 dBuV



Voltage Measurement



       Input range: 10 ~ 80V(AC/DC)



      Accuracy: ±2V



      Resolution: 0.1V

Technical indicators above worked in temperature 25°C



Other

Dimensions:215mm×93mm×48mm

Net Weight: < 550g

Temperature: -10°C ~ 45°C

Display:   320 X 240 TFT LCD

Audio Output: Build-in speaker



Power



DC supply: 7.2V rechargeable battery



AC Supply:  AC220V/50Hz ±10%



Working time:  >4hrs (full charged battery)









Inquire us! we will provide more detail information of products,professional suggestion according to your situation!!!
