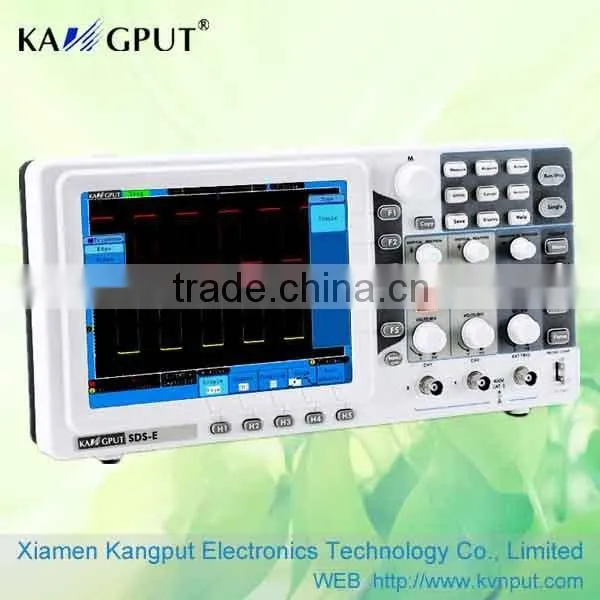

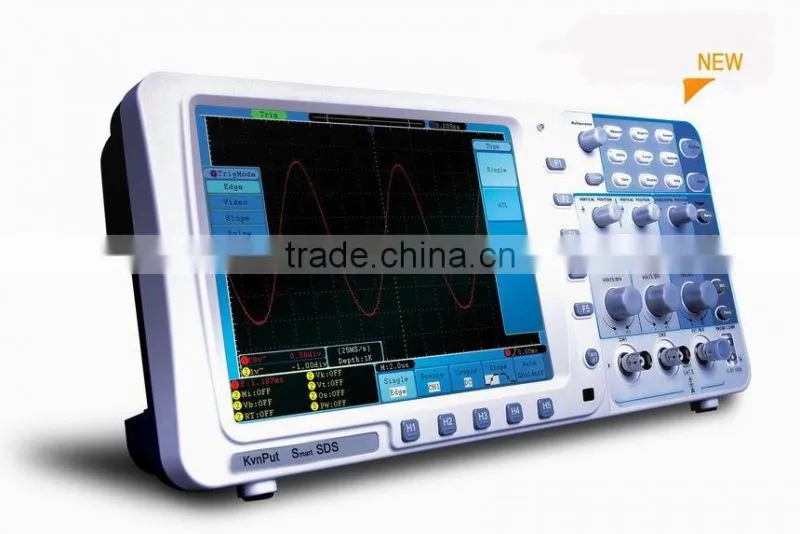

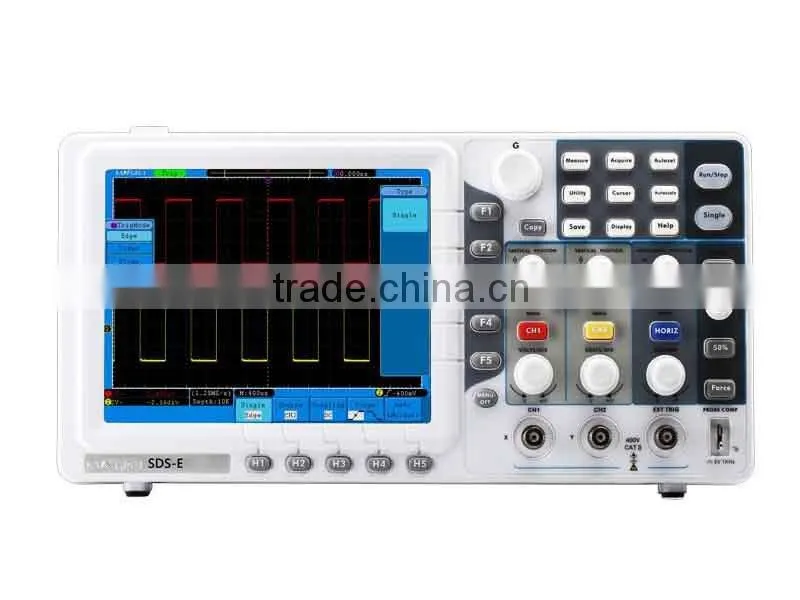

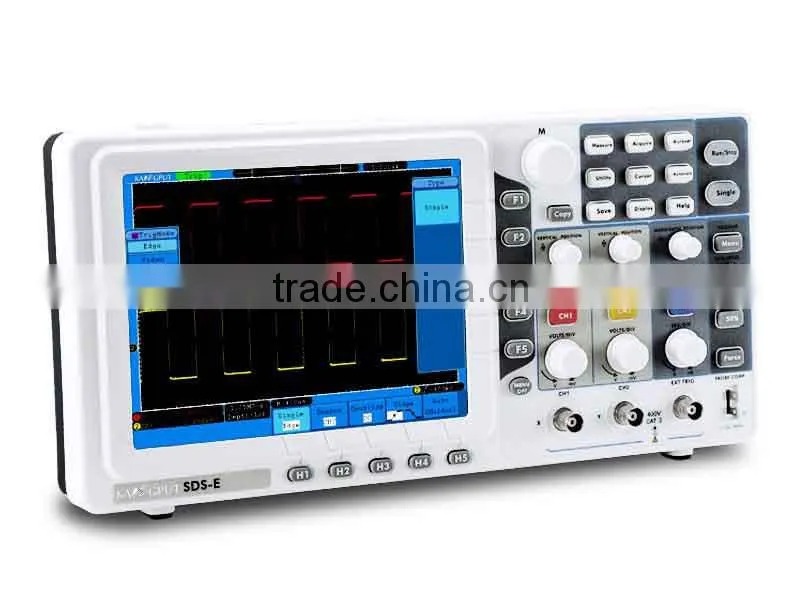

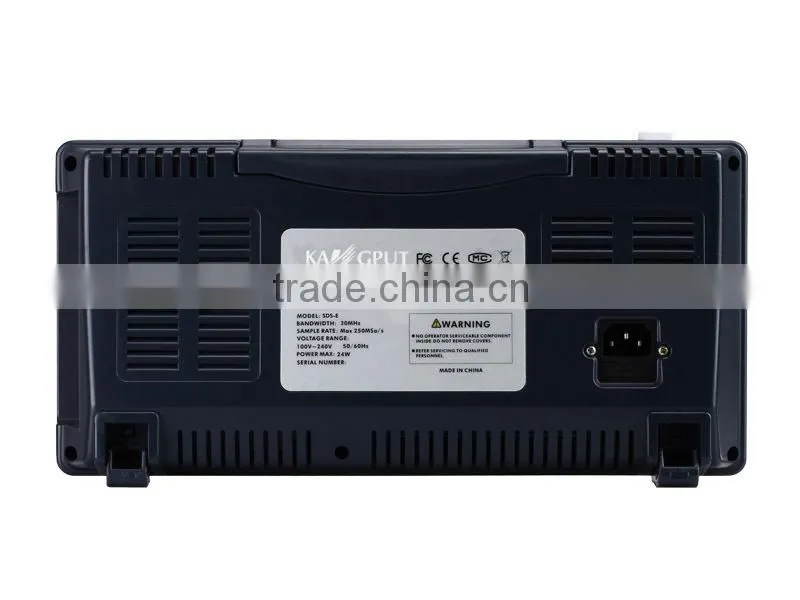

HOT Sale!!!8''SmartDS Series Dual Digital Storage Oscilloscope with VGA output, 100MHz,dual channels
Model |
SDS7102-E (with VGA output) |
||||
Bandwidth |
100MHz |
||||
Sample rate(Real time) |
1GS/s |
||||
Horizontal Scale(S/div) |
2ns/ div~100s/div, step by 1~2~5 |
||||
Rise time (at input, typical) |
3.5ns |
||||
Channels |
Dual |
||||
Display |
8" color LCD,TFT display,800x600 pixels,65535 colors |
||||
Vertical System |
Vertical resolution (A/D) |
8 bits Resolution (2 channels simultaneously ) |
|||
|
Vertical sensitivity |
2mV/div~10V/div(at input) |
|||
|
Displacement |
1V(2mV~100mV), 10V(200mV~1V),100V(2V~10V) |
|||
|
Analog Bandwidth |
100MHz |
|||
|
Single bandwidth |
Full bandwidth |
|||
|
low frequency |
5Hz |
|||
|
Rise time (at input,typical) |
3.5ns |
|||
|
DC gain accuracy |
3% |
|||
|
DC accuracy(Average) |
Average .16: (3% rdg + 0.05 div) for V |
|||
Measurement |
Cursor measurement |
V and T between cursors |
|||
|
Automatic measurement |
Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time,Fall Time, DelayAB , DelayAB , +Width, -Width, +Duty, -Duty |
|||
|
Waveform Math |
+, -,*, / ,FFT |
|||
|
Waveform storage |
15 waveforms |
|||
|
Lissajous figure |
Bandwidth |
Full bandwidth |
||
|
|
Phase difference |
3 degrees |
||
|
Communication interface |
USB, support USB flash disk storage, SVGA |
|||
Trigger |
Trigger level range |
6 divisions from screen center |
|||
|
Trigger level accuracy |
0.3div |
|||
|
Horizontal Trigger displacement |
Pre-trigger: 655 div,Post-trigger: 10 div |
|||
|
Trigger Holdoff range |
100ns~10s |
|||
|
Edge trigger |
RisingFalling |
|||
|
Pulse Trigger |
Trigger condition |
|
||
|
|
Pulse width range |
24ns~10 |
||
|
Video Trigger |
NTSC.PALSE.CAM |
|||
|
Slope Trigger |
Trigger condition |
|
||
|
|
Time setting |
24ns~10s |
||
|
Alternate Trigger |
Edge, Pulse, Video, Slope |
|||
Waveform |
Waveform quantity |
1~1000 |
|||
|
Interval time |
1ms~1000s |
|||
|
Display |
8" color LCD,TFT display,800x600 pixels,65535 colors |
|||
|
Power Supply |
100~240VAC RMS, 50/60Hz, CAT II |
|||
|
Power consumption |
< 18W |
|||
|
Dimension Weight |
340mm(L)*155mm(H)*70mm(W) 1.8kg (without battery) |
|||
10M record length with highest 1GS/s sample rate;AutoScale function to simplify the operation;
Smart design body with easy workplace;Come with SVGA port to enlarge waveform display;
Super capacity lithium battery for optional.
Main Features:
1.10M record length for each channel
2.Autoscale function
3.Large 8-inch 800x600 pixels display
4.Pass/Fail function
5.SVGA output
6.Waveform record & replay

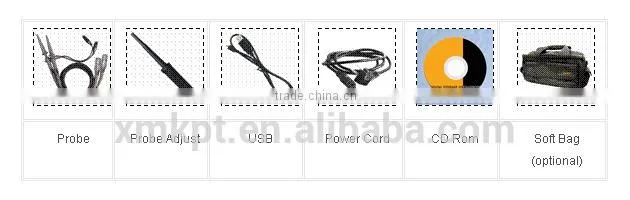

Accessories:
