Deep SDS6062 Memory Digital storage oscilloscope 60mhz bandwidth oscilloscope.
Application:
Design and Debug
Circuit function test
Mixed signal circuit test
Identified signals logic information
Education & Training
Specification:
Bandwidth: 100MHz
Sample rate(Real time) : 2GS/s
Horizontal Scale(S/div): 2ns/div-100s/div, step by 1-2-5
Rise time (at input, typical): ≤3.5ns
Channels: Dual
Display: 8" color LCD,TFT display,800x600 pixels,65535 colors
Dimension : 340mmx155mmx70mm
Weight: 1.8kg
Vertical System
Vertical resolution (A/D): 8 bits Resolution (2 channels simultaneously )
Vertical sensitivity: 2mV/div-10V/div(at input)
Displacement: ±1V(2mV~100mV), ±10V(200mV~1V),±100V(2V~10V)Analog Bandwidth: 60MHz
Single bandwidth: Full bandwidth
low frequency: ≥5Hz
Rise time (at input, typical): ≤3.5ns
DC gain accuracy: ±3%
DC accuracy(Average): Average 16: (3% rdg + 0.05 div) for ΔV
Measurement
Cursor measurement: ΔV and ΔT between cursors
Automatic measurement: Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time,Fall Time, DelayA→B , DelayA→B , +Width, -Width, +Duty, -Duty
Waveform Math: +, -, , / ,FFT
Waveform storage: 15 waveforms
Lissajou’s figure: Bandwidth Full bandwidth
Phase difference: ±3 degrees
Communication interface: USB, support USB flash disk storage USB, SVGA
Trigger
Trigger level range: ±6 divisions from screen center
Trigger level accuracy: ±0.3div
Horizontal Trigger displacement: Pre-trigger: 655 div,Post-trigger: 10 div
Trigger Holdoff range: 100ns~10s
Edge trigger: Rising,Falling
Pulse Trigger: Trigger condition Positive pulse: >, < , = negative pulse: >, < , =
Pulse width range 24ns~10s
Video Trigger: NTSC,PAL,SECAM
Slope Treigger: Trigger condition Positive pulse: >, < , = negative pulse: >, < , =
Pulse width range 24ns~10s
Alternate Trigger: Edge, Pulse, Video, Slope
Waveform record
Waveform: quantity: 1~1000
Interval time : 1ms~1000s
Display: 8" color LCD,TFT display,800x600 pixels,65535 colors
Power Supply: 100-240 VAC RMS, 50/60Hz, CAT II
Power comsumption: <18W
Dimension: 340mm(L)×155mm(H)×70mm(W) 1.8kg (without battery)

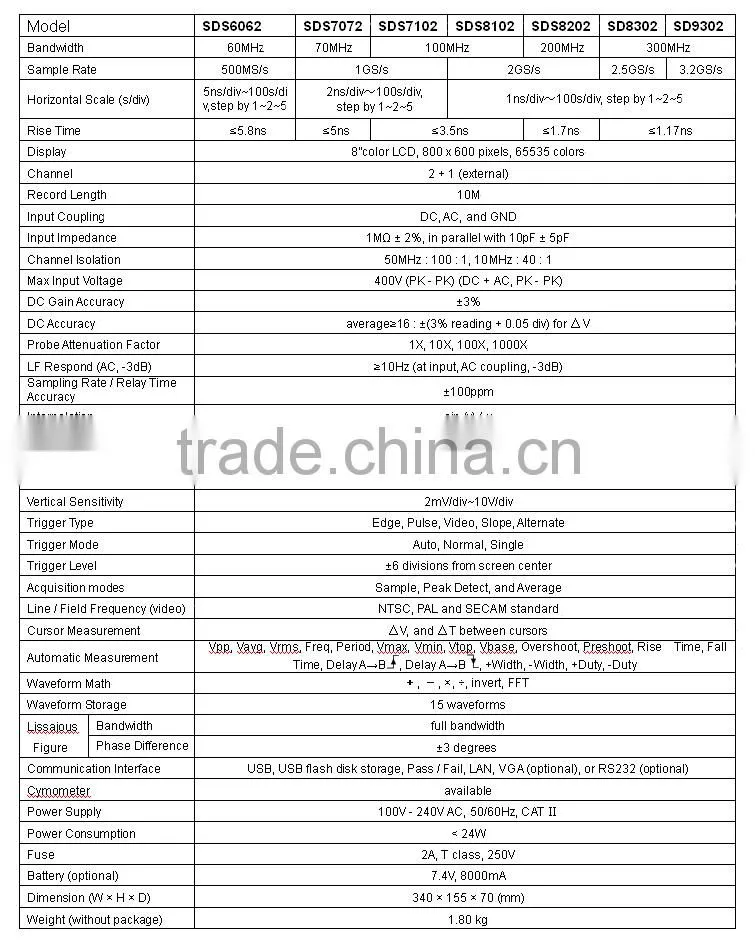

Specification

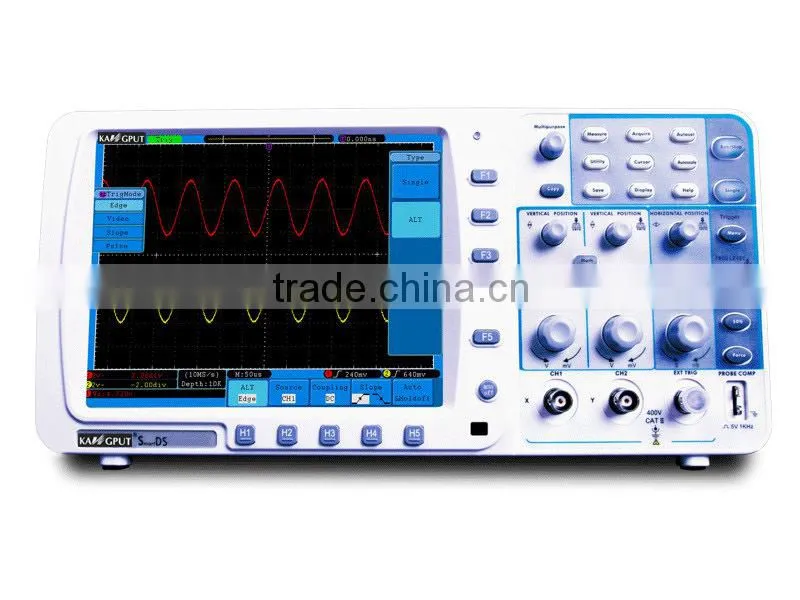

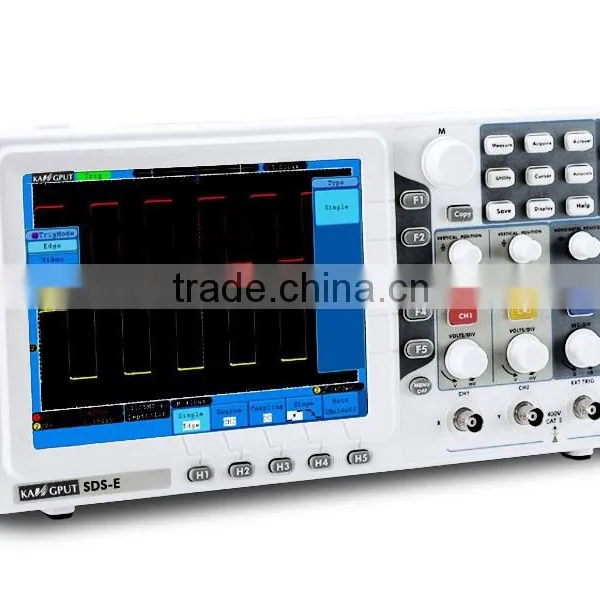

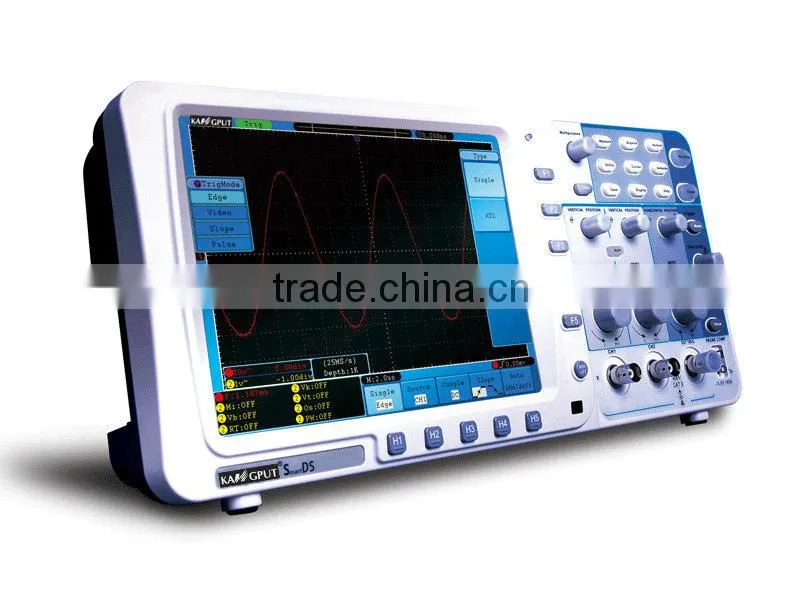

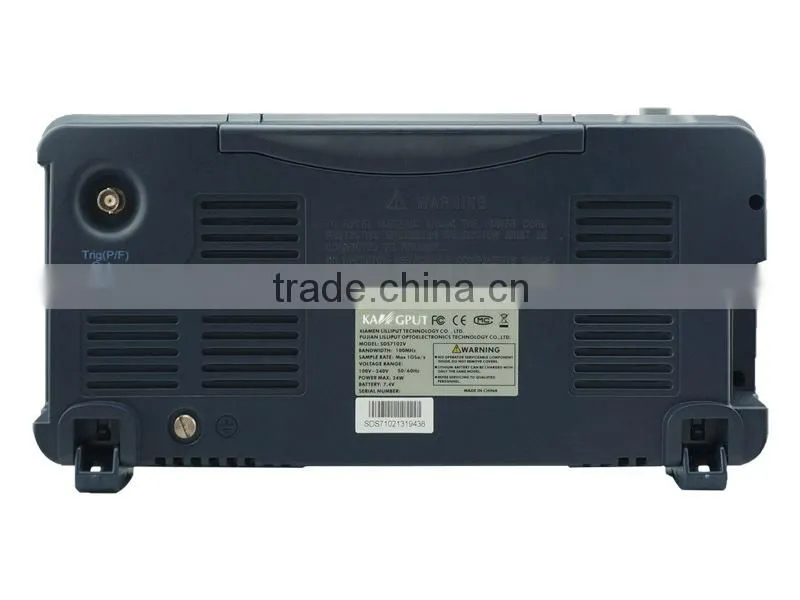

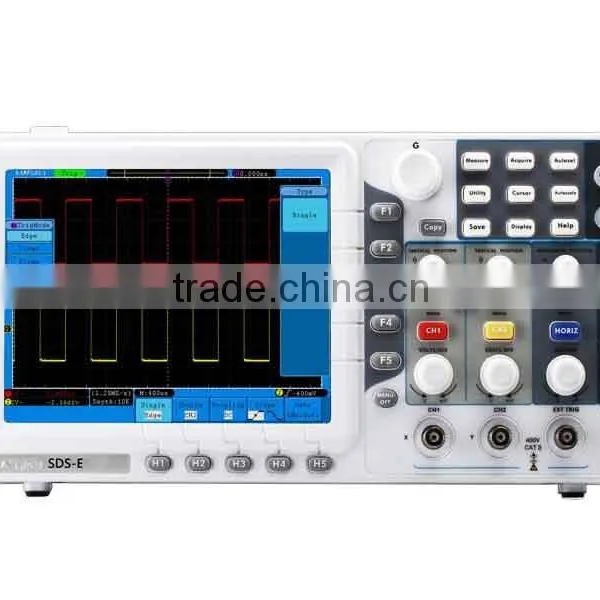

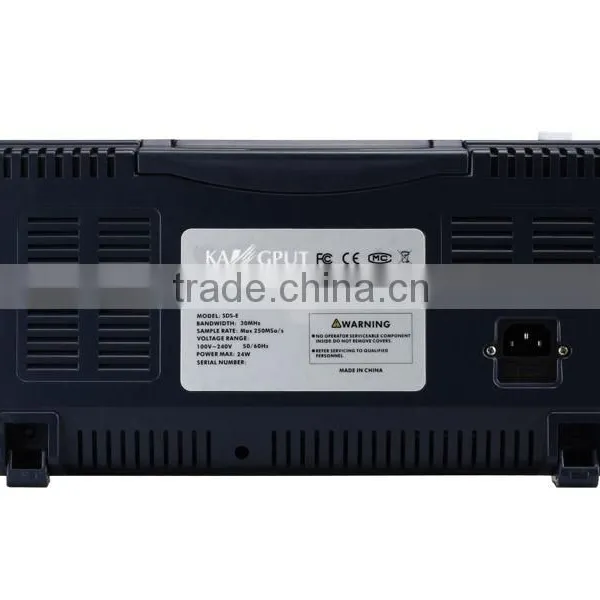

Photo Show

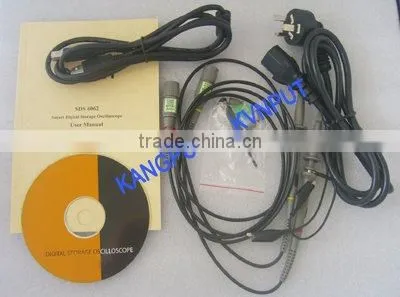

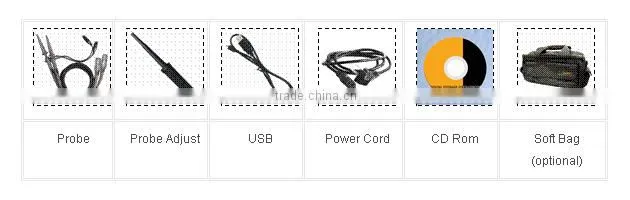

Accessories
Any problem please leave a message as below,
happy shopping
