Features |
Ÿ DSP-based 1 channel intelligent video encoder with embedded video analytics function, the automatic detection, real-time alarm notification and instant video confirmation can significantly improve the level of safety monitoring.
Ÿ 3D scenery based detection, automatically distinguishes the target type, size, speed and moving direction, excellent target detection on uneven terrain, and especially provides reliable detection of distant targets.
Ÿ Advanced pattern recognition technology and behavior analysis algorithms at a high detection rate (99.9%).
Ÿ Environmental adaptive sensitivity adjustment function, support automatic adjustment according to the site environment, full embedded stand-alone device, requires no external software.
Ÿ Accurate detection in severe and low light environment, include the moving target of camouflage, super-slow speed ( 6 cm / min) and sudden Moving
Ÿ Embedded web server enables remote configuration, management and monitoring through a web browser, easy for installation and setup
Ÿ Flexible network deployment due to digital and analog dual outputs.
Ÿ Relay alarm input and output
Ÿ Support schedule pre-set and user-defined events automatic trigger rules
Ÿ Support interconnection and functional linkage between the same series products in LAN.
Collaborate with the higher version encoders to activate alarm trigger, work with a high speed dome camera to achieve autonomous tracking on the object.

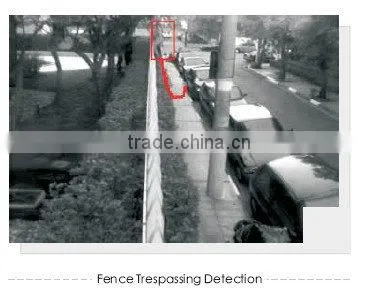

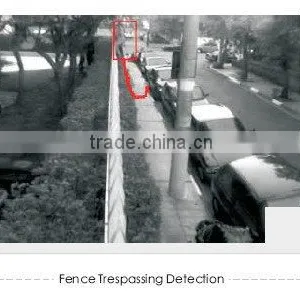

Product Picture
Specifications |
Hardware ( Embedded software) |
|
Embedded intelligent visual analysis module with multiple detections for regional intrusion, tripwire crossing, fence trespassing, converse moving, etc. Support multiple detection zones, rules and switch. Also support video quality diagnostic and video signal anomaly alert function. |
Application interface (API) |
Open API and SDK |
Physical Dimensions |
26×87×104mm (WxHxD) |
Analog Video Input |
NTSC/ PAL Single channel composite video, BNC 75Ω Physical Connector |
Analog Video Output |
|
Composite 1Vp-p – NTSC or PAL, Physical Connector Support OSD image overlay output |
Digital Video Output |
|
Coding standard: MPEG-4 Max resolution: CIF Bit Rate 128kbps~2.5Mbps adjustable Frame Rate: full real time ( PAL 25fps/NTSC 30 fps) Support fixed Bit rate (CBR) and variable Bit rate (VBR), user defined Support QOS |
Network |
|
Support 10/100 Base-TX Ethernet (auto-adaptive) Ethernet RJ-45 interface Support IEEE802.3/802.3U Use IGMP multicast by working with switch/ router which support 802.3 10/100MB Ethernet IGMP multicast protocol. TCP/IP based alert message and command. |
Serial I/O |
RS232 is used for reset of serial port, no use RS485 |
Alarm I/O Interface |
1ch alarm inputs (from Dry Contacts) (max 12VDC 50mA), 1ch alarm output (max 24VDC 1A/ 125VAC 0.5A) |
Power Source |
12VDC |
Power Voltage |
Power Consumption: 5W |
Working Environment |
|
Operating Temperature: 0°C~50°C (32°F~122°F) Operating Humidity: 5%~95% (Non-Condensation) |
