Features |
ŸDSP based single channel intelligent video encoder with the embedded intelligent video analysis capacity. The automated detection, instant alert and visual confirmation significantly improve the level of safety monitoring.
Ÿ3D scenery based detection, automatically distinguishes the target type, size, speed and moving direction, excellent target detection on uneven terrain, and especially provides reliable detection of distant targets.
ŸAdvanced pattern recognition technology and behavior analysis algorithm ensure high accurate detection rate up to 99.9%, and false alarm rate less than 1% per day.
ŸAuto adaptive sensitivity adjustment, the sensitivity can be adjusted by the site environment, full embedded standalone device, requires no external software.
ŸAccurate target detection in severe and low light environment, include the moving target of camouflage, super-slow speed (6 cm / min) and sudden Moving.
ŸEmbedded web server enables remote configuration, management and control by web browser.

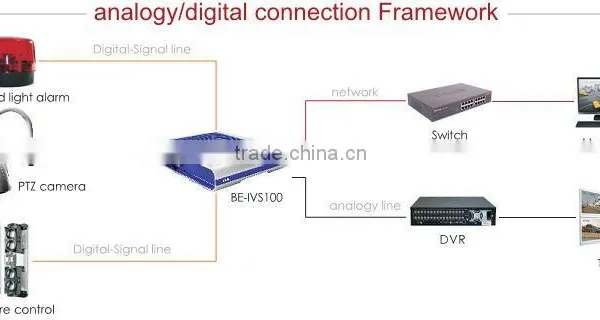

ŸFlexible deployment due to digital and analogue dual outputs, easily upgrades the traditional monitoring system to be intelligent.
ŸSupport alarm relay input/output
ŸSupport schedule pre-set and user-defined event auto trigger rules
ŸSupport interconnection and functional linkage in LAN between the same series of products.
ŸSupport manual, auto and autonomous PTZ tracking by a PTZ camera.
|
Specifications
|
Hardware ( Embedded software) |
|
Embedded intelligent visual analysis module with multiple detections for regional intrusion, tripwire crossing, fence trespassing, converse moving, left behind baggage, theft, illegal parking, loitering etc. Support multiple detection zones, rules and switch. Also support video quality diagnostic and video signal anomaly alert function.
|
|
Application interface (API)
|
Open API and SDK |
|
Physical Dimensions
|
33×189×153mm (WxHxD) |
|
Analog Video Input
|
NTSC/ PAL Single channel composite video signal, BNC 75Ω Physical Connector |
|
Analog Video Output
|
|
Composite 1Vp-p - NTSC or PAL, BNC 75Ω Physical Connector, Support OSD image overlay output |
|
Digital Video Output
|
|
Coding standard: MPEG-4 Max resolution: 4CIF Bit Rate 128Kbps~2.5Mbps adjustable, PTZ camera support max 2.0 Mbps, Frame Rate: full real time ( PAL 25fps/NTSC 30 fps) Support fixed Bit rate (CBR) and variable Bit rate (VBR)by user define Support QOS |
Network |
|
Support 10/100 Base-TX Ethernet (auto-adaptive) Ethernet RJ-45 interface Support IEEE802.3/802.3U Support video RTP/IP unicast and multicast Use IGMP multicast by working with switch/ router which support 802.3 10/100MB Ethernet IGMP multicast protocol. TCP/IP based alert message and command. |
|
Serial I/O
|
RS-232 , RS-485 |
Alarm I/O Interface |
|
4ch alarm inputs (max 12VDC 50mA), 2ch alarm output (max 24VDC 1A/ 125VAC 0.5A) |
|
Power Source
|
12VDC |
Power Voltage |
Power Consumption: 8W |
|
Working Environment
|
|
Operating Temperature: 0°C~50°C (32°F~122°F) Operating Humidity: 5%~95% (Non-Condensing) |
