Intelligent Video Analysis,regional Entrance Detection Functions,BE-IVS1

Intelligent Video Analysis,regional Entrance Detection Functions,BE-IVS1 thumbnail-1
Intelligent Video Analysis,regional Entrance Detection Functions,BE-IVS1 photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
BELLSENT
Model Number:
BE-IVS1
Contact Supplier Request Quote Chat Now
Shenzhen Bellsent Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name BELLSENT
Model Number BE-IVS1

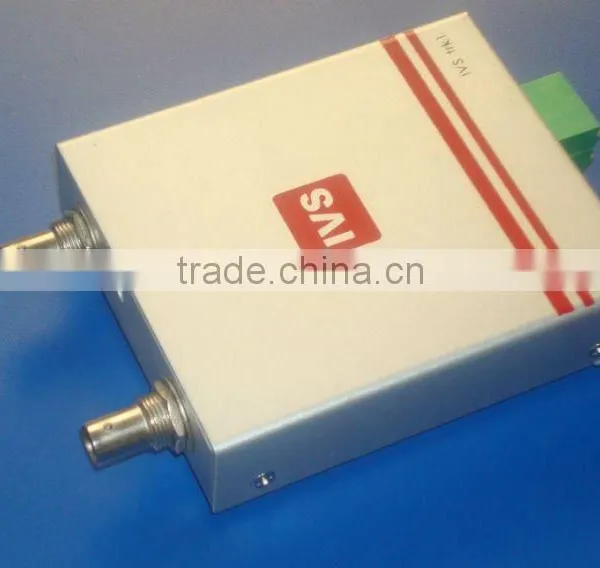

The BE-IVS 1 is an intelligent video analysis Encoder  built-in self sustained video analytics.It can connect any CCTV surveillance camera and automatically detect intruders, burglars, and other threats,



1.Easy to install, sets up in minutes.

intelligent video analysis,regional entrance detection functions,BE-IVS1



2.Single channel video encoder, embedded with Bellsent's DSP-based field-proven analytics,



3.Converts any analog CCTV surveillance camera (B/W, color, thermal, and infrared) to networked MPEG-4 CIF-quality video, streaming at full frame rate



4.Detection rate 99%,false alarm rate is less 1/day.


5.Detection types:Regional Entrance Detection,Tripwire Crossing Detection;Fence Trespassing Detection;Anomaly Detection.

intelligent video analysis,regional entrance detection functions,BE-IVS1intelligent video analysis,regional entrance detection functions,BE-IVS1intelligent video analysis,regional entrance detection functions,BE-IVS1

intelligent video analysis,regional entrance detection functions,BE-IVS1





full Specifications:

Channels

Number of Intelligent Video Analysis Channels

1

Analog Video Input

TV Standard

Composite 1Vp-p – NTSC or PAL

Physical Connector

1x BNC 75Ω

Analog Video Output

TV Standard

Composite 1Vp-p – NTSC or PAL

Physical Connector

1x BNC 75Ω

Digital Video Output

IP Video Streaming

MPEG-4 SP, M-JPEG

Max Resolution per Channel

CIF

Frame Rate

Up to Full Frame Rate

Bit Rate

CBR (128Kbps – 4Mbps), VBR

Network

Ethernet (IEEE 802.3/802.3U)

1x Ethernet RJ-45 Interface

Services and Protocols

TCP/IP, UDP/IP, HTTP, SMTP, DHCP, DNS, SNTP

Video Streaming

RTP/RTSP

Alarms/Commands

TCP/IP

I/O Interface

IN - Alarm Input

1 x Alarm inputs (from Dry Contacts)

OUT - Relay Output

1x Relay Output (rated load 1A@30VDC)

Power Source

Voltage

12VDC

Power over Ethernet (PoE)

Supported (IEEE 802.3af)

Power Consumption

5W

Physical Dimensions

Dimensions (mm)

88 x 26 x 130 mm (WxHxD)

Dimensions (inches)

3 7/16" x1" x 5 3/32" (WxHxD)

Mounting

Camera Housing/Shelf

Environmental Specifications

Operating Temperature

0° to 50° C

Operating Humidity

5% to 95% (Non-Condensing)

Certifications

Safety

CE, TUV
