BE-IVS 1 is intelligent cctv system with video analytics.
The users can customize the rules and criteria and define the perimeter.When the people,vehicles and objects cross the perimeter or enter a pre-defined region or leave behind or remove from a scene,the equipment can analyzes the input video and alarm.
The features:
1.Single channel video encoder,embedded with Bellsent's DSP,automated detection,instant notification and immediate visual verification.
2.high probability of detection(99%),low false alarm rate(less 1% per day).
3.hybrid video output(Analog & IP streaming MPEG-4).

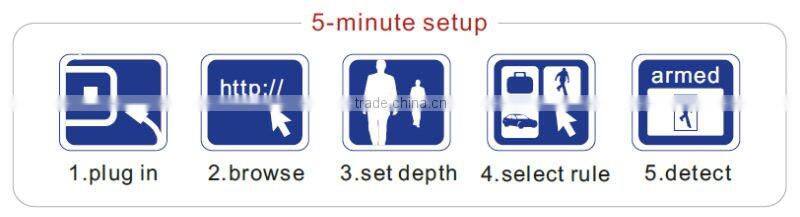

4.support remote set and monitor by WEB browser or control software.five minutes set up.

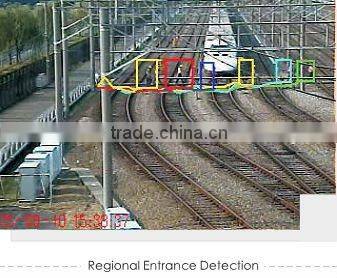

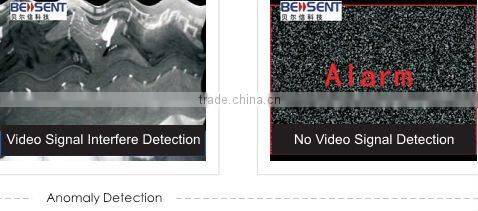

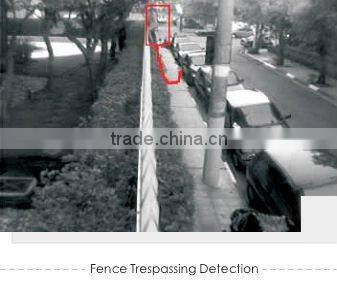

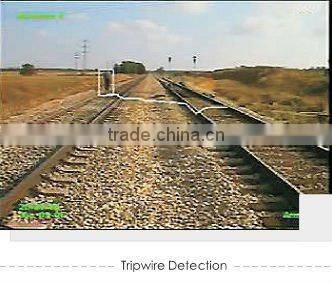

5.Detection types pictures:
The full specification:
Channels | |
Number of Intelligent Video Analysis Channels |
1 |
Analog Video Input | |
TV Standard |
Composite 1Vp-p – NTSC or PAL |
Physical Connector |
1x BNC 75Ω |
Analog Video Output | |
TV Standard |
Composite 1Vp-p – NTSC or PAL |
Physical Connector |
1x BNC 75Ω |
Digital Video Output | |
IP Video Streaming |
MPEG-4 SP, M-JPEG |
Max Resolution per Channel |
CIF |
Frame Rate |
Up to Full Frame Rate |
Bit Rate |
CBR (128Kbps – 4Mbps), VBR |
Network | |
Ethernet (IEEE 802.3/802.3U) |
1x Ethernet RJ-45 Interface |
Services and Protocols |
TCP/IP, UDP/IP, HTTP, SMTP, DHCP, DNS, SNTP |
Video Streaming |
RTP/RTSP |
Alarms/Commands |
TCP/IP |
I/O Interface | |
IN - Alarm Input |
1 x Alarm inputs (from Dry Contacts) |
OUT - Relay Output |
1x Relay Output (rated load 1A@30VDC) |
Power Source | |
Voltage |
12VDC |
Power over Ethernet (PoE) |
Supported (IEEE 802.3af) |
Power Consumption |
5W |
Physical Dimensions | |
Dimensions (mm) |
88 x 26 x 130 mm (WxHxD) |
Dimensions (inches) |
3 7/16" x1" x 5 3/32" (WxHxD) |
Mounting |
Camera Housing/Shelf |
Environmental Specifications | |
Operating Temperature |
0° to 50° C |
Operating Humidity |
5% to 95% (Non-Condensing) |
