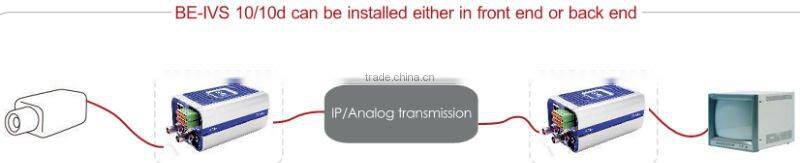

Help CenterIntelligent Surveillance System,installing Either in Front End or Back End
Related Products
-
1ch Network Video Cctv Server,with Video Analytics FunctionNegotiableMOQ: 1 Piece -
Intelligent Cctv System With Video Analytics,wireless Video ServerUS$ 100 - 500MOQ: 1 Piece
-
Intelligent Video Analytics PTZ CameraNegotiableMOQ: 1 Unit
-
Intelligent Video Analytics CameraNegotiableMOQ: 1 Unit
-
One Channel Network Video Server With Intelligent Video AnalyticsNegotiableMOQ: 1 Piece
BE-IVS10/10d are intelligent surveillance system which connected video input to alarm and notify of people, vehicles and objects that cross a perimeter, enter a pre-defined region, are left behind, or are removed from a scene.
Features:
1.one video detection channel;
2.CIF resolution-low latency-MPEG-4 audio &video streaming;
3. Intelligent video and network video encoder in one
4.Built-in high-performance self-sustained video analytics,no need additional HW/SW;
5. High probability of detection, low false alarm rate (POD is 99%,FAR is less 1/day,)
6. 5 minutes setup process
7. Integrated HTTP server for live view and configuration
8. Supports B/W, color, IR and thermal cameras (PAL/NTSC)
9.Detection Types:
(1) Intrusion detections:
-Regional entrance
-Tripwire
-Fence Trespassing
(2)
(3)
(4)
(5)
(6)Camera tampering detection
(7)
The full specification
Model |
BE-IVS10 |
BE-IVS10D |
Channels | ||
Number of Intelligent Video Analysis Channels |
1 |
1 |
Analog Video Input | ||
TV Standard |
Composite 1Vp-p – NTSC or PAL |
|
Physical Connector |
1x BNC 75Ω |
|
Analog Video Output | ||
TV Standard |
Composite 1Vp-p – NTSC or PAL |
|
Physical Connector |
1x BNC 75Ω |
|
Digital Video Output | ||
IP Video Streaming |
MPEG-4 SP and M-JPEG |
MPEG-4 SP and M-JPEG, Two separate, independent and configurable video streams |
Max Resolution per Channel |
CIF |
4CIF |
Frame Rate |
Up to Full Frame Rate |
|
Bit Rate |
CBR (128Kbps – 4Mbps), VBR |
|
Network | ||
Ethernet (IEEE 802.3/802.3U) |
1x RJ-45 Interface |
|
Services and Protocols |
TCP/IP, UDP/IP, HTTP, SMTP, DHCP, DNS, SNTP |
|
Video Streaming |
RTP/RTSP |
|
Alarms/Commands |
TCP/IP |
|
I/O Interface | ||
Serial (one interface per input for PTZ camera control) |
1x RS-232+1x RS-485 |
|
IN - Alarm Input |
1x Alarm inputs (from Dry Contacts) |
|
OUT - Relay Output |
1x Relay Output (rated load 1A@30VDC) |
|
Power Source | ||
Voltage |
12VDC |
|
Power Consumption |
5.5W |
8W |
Environmental Specifications | ||
Operating Temperature |
0° to 50° C |
|
Operating Humidity |
5% to 95% (Non-Condensing) |
|
Certifications | ||
Safety |
CE, TUV |
|
Electromagnetic Interference (EMC) |
FCC part 15, subpart B, Class A |
|
