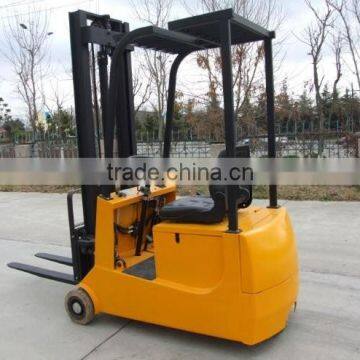

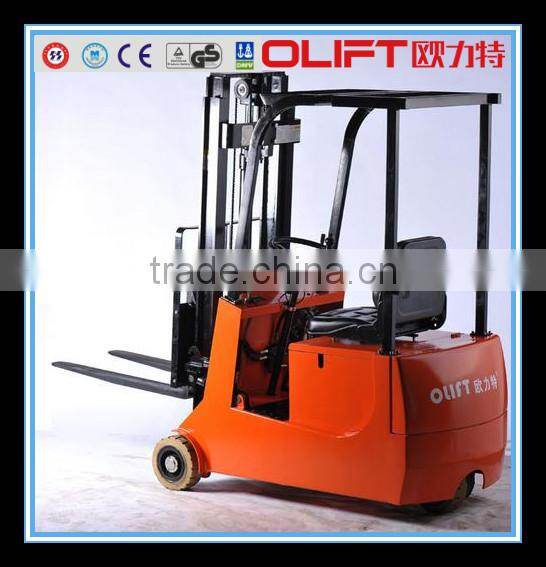

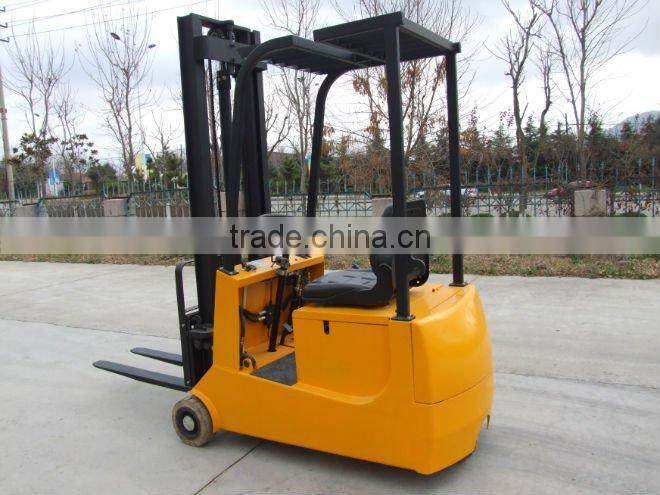

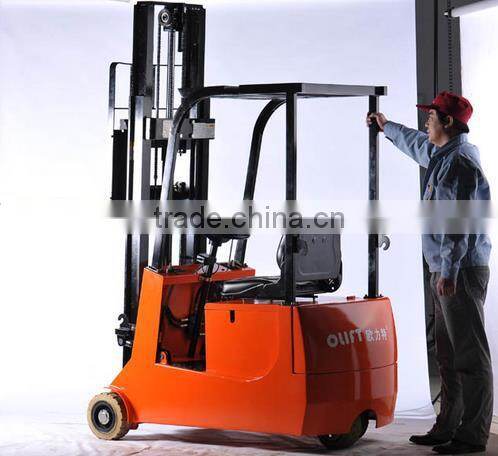

1 ton capacity small 3 wheels electric forklift
1.Our electric counterbalanced forklift is of small size and compact structure, which greatly improves its operational flexibility.
2.Curtis electrical control system from America for good reliabiity.
3.Winner hydraulic pump station for powerful performance
4.High capacity traction battery (300AH) to ensure suifficient electricity for a day's work.
5.High quality solid tire provides good buffer action.
6.Equipped with intelligent cherger to effectively prolong the life tme of battery.
7.Applicable to operations in restricted spaces.
8.Forged adjustable fork is suitable for pallets of various sizes.
| Model No. | FN0525 | FN07525 | FN1025 | |
| Capacity | kg | 500 | 750 | 1000 |
| Lifting height | mm | 2500 | 2500 | 2500 |
| Min.height of fork | mm | 32 | 40 | 40 |
| Fork width outside | mm | 160-710 | 200-650 | 200-650 |
| Single fork width | mm | 80 | 100 | 100 |
| Fork lenth | mm | 680 | 900 | 900 |
| Load center | mm | 400 | 400 | 400 |
| Min.turning radius | mm | 1250 | 1500 | 1500 |
| Max.speed(laden/unladen) | Km/h | 5.8/7.0 | 4.2/6.0 | 4.2/6.0 |
| Lifting speed(laden/unladen) | mm/s | 107/132 | 100/140 | 100/140 |
| Lifting speed(laden/unladen) | mm/s | 154/148 | 125/106 | 181/175 |
| Max.Travel Grade(laden/unladen) | % | 5/8 | 5/8 | 5/8 |
| Lifting motor | kw/h | 2.0/24 | 1.0-2.2/24 | 1.0-2.2/24 |
| Aneriod battery | V/Ah | 24/160 | 24/160-210 | 24/300 |
| Charger | A/V | 15-25/24 | 15-25/24 | 15-25/24 |
| Overall size(L*W*H) | mm | 2080*795*1800 | 2540*900*1800 | 2390*916*1871 |
| Fork angle | ° | 1/9 | 2/5 | 2/5 |
| Net weight(with battery) | kg | 968 | 1150 | 1470 |
more details
| Packaging Detail: | electric forklift truck will be packed by Flexible Package, Seaworthy Package. |
| Delivery Detail: | 15-30 days |
mini 3 three wheels electric forklift truck
Company Profile:
Olift Equipment Co.,Ltd. provides wide selection of products such as forklift trucks, pallet trucks and stackers, scissor lifts, moving tools, platform lifting and more.
The workforce engages in intense research to develop functional, easy-to-use products that can provide the clients total value for their investment. The company emphasizes on total customer satisfaction, thus all equipment are manufactured to international standard and with impeccable quality.
In addition, it has in-house technical capabilities to design and manufacture the equipment. Strict quality management is applied throughout all stages of production process to ensure the precision and high performance of products.

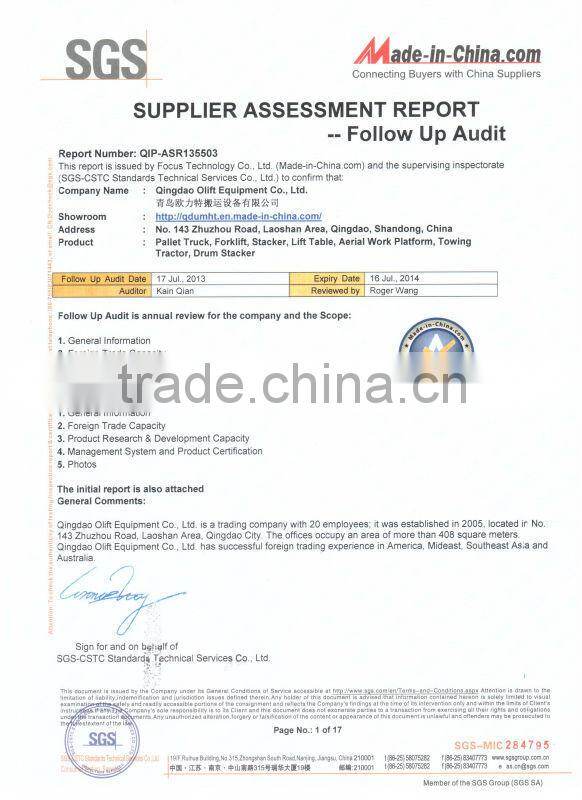

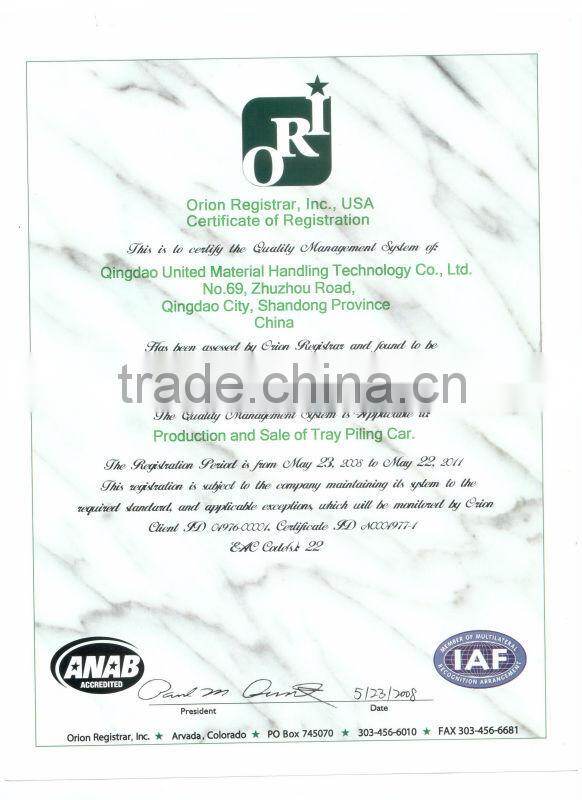

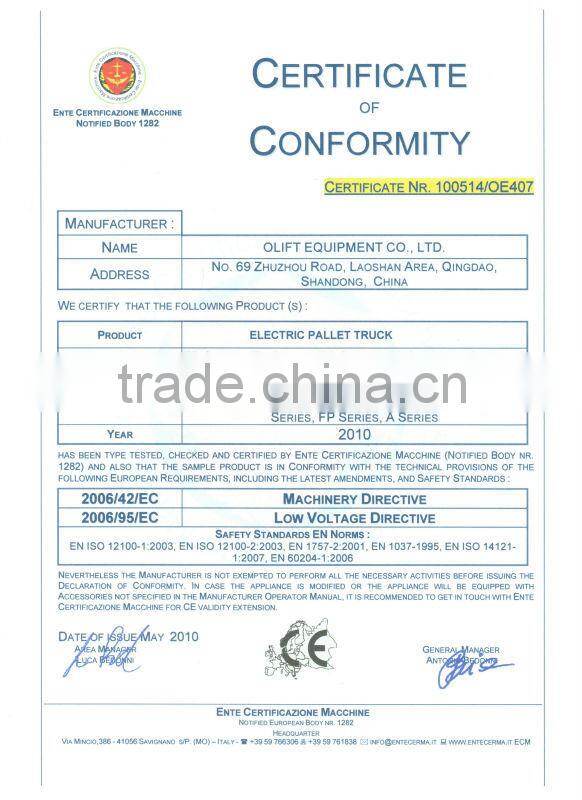

Certificate:
