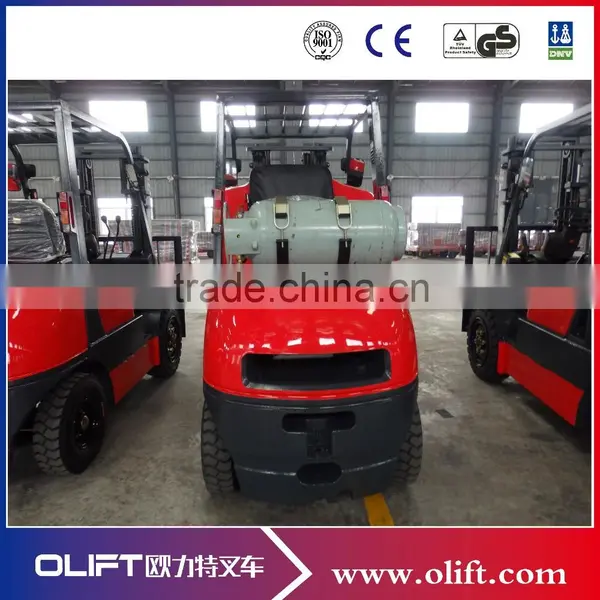

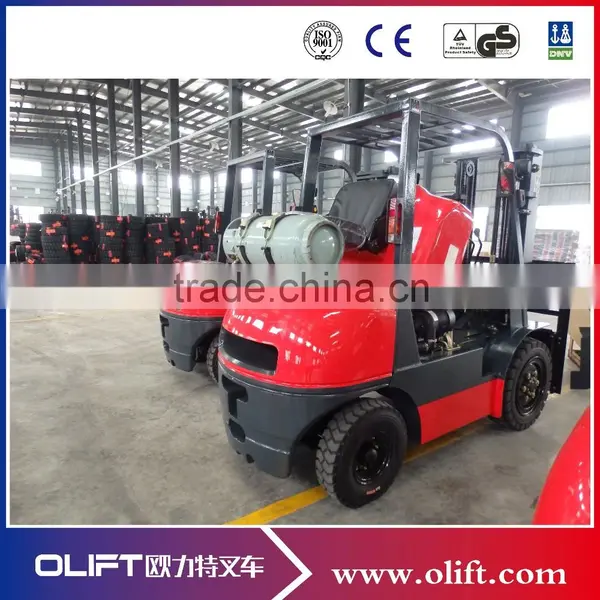

Gas Engine Power Souce and Powered Pallet Truck Type LPG Forklift Quality Choice
US$ 8,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Olift
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3-ponit Battery Forklift 1.5 Ton DC Electric Forklift Truck Quality ChoiceUS$ 1,000 - 3,000MOQ: 1 Set -
Mini Three Wheel Battery Operated Forklift for SaleUS$ 5,000 - 6,500MOQ: 1 Set
-
1 Ton Capacity Small 3 Wheels Electric Forklift With Good Reliablility Quality ChoiceUS$ 3,000 - 6,000MOQ: 1 Set
-
Forklift With A490bpg Engine Good Quality Japanese Engine Diesel Forklifts With Automatic TransmissionUS$ 7,000 - 15,000MOQ: 1 Piece
-
Olift 2.0 Ton Electric Cold Storage Type Forklift With CEUS$ 13,000 - 20,000MOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
Olift
Model Number
FP
Type
Powered Pallet Truck
Power Souce
LP Gas Engine
Rated Loading Capacity
3000kg
Max. Lifting Height
3000mm
Min. Lifting Height
110mm
Fork Length
1070mm
Fork Width
100mm
Overall Dimensions
2070*3646*1170mm
Certification
CE,SGS,ISO
After-sales Service Provided
Engineers available to service machinery overseas
Gas Engine Power Souce and Powered Pallet Truck Type LPG forklift
Product Description
A reliable mast :
- Emphasis on the inherent quality of the mast has provided operatoe a reliable security. Wide view mast makes vision more clearly.
- we adopted the German mast channel which has the world-class quality.
- The cross-section of mast channel has been increased and the structure become more strong.
New type of adjusting mechanism of the steering:
- The new type steering wheel dual threaded adjustment mechanism with patented technology has improved the operator comfort and adjustment reliability
New drive and control system :
- Adopt the international electric actuators and makes the truck steering more stable,and output power stronger.
- New electronic blanker improves the comfort and safety of the operation.
The world's leading forklift gas conversion system :
- Adopt US IMPCO gas system;provide customers with CNG,LNG,LPG and other power options to meet the different needs of customers.
Specifications:
| Model | FP20 | FP25 | FP30 | FP35 | |||||
| Load capacity kg | 2000 | 2500 | 3000 | 3500 | |||||
| Load center mm | 500 | 500 | 500 | 500 | |||||
| Power type | LPG&Gasoline | ||||||||
| Max.lifting speeds(with load)mm/s | 530 | 530 | 440 | 440 | |||||
| Max.Driving speeds(with/without load)km/h | 17/19 | 17/19 | 18/19 | 18/19 | |||||
| Max.Towing speeds(with/without load)kN | 20/15 | 20/15.2 | 20/16 | 20/16 | |||||
| Gradeability(with/without load)% | 21/20 | 18/20 | 20/20 | 20/20 | |||||
| H1 Lifting height mm | 3000 | 3000 | 3000 | 3000 | |||||
| Tilting angles(forward-backward) . | 6/12 | 6/12 | 6/12 | 6/12 | |||||
| Min. turning radius mm | 2170 | 2240 | 2400 | 2400 | |||||
| Min.intersecting aisle mm | 2200 | 2280 | 2380 | 2380 | |||||
| Min. under-clearance mm | 110 | 110 | 135 | 135 | |||||
| Dimensions | A Overall length (with/without fork) mm | 3422/2502 | 3646/2576 | 3752/2682 | 3752/2682 | ||||
| B Overall width mm | 1170 | 1170 | 1225 | 1225 | |||||
| H Overall height(mast lowered) mm | 2000 | 2000 | 2065 | 2065 | |||||
| H2 Overall height(mast extend) mm | 4030 | 4030 | 4262 | 4262 | |||||
| H3 Overall height to overhead guard mm | 2070 | 2070 | 2090 | 2090 | |||||
| A1 Fork overhang mm | 450 | 450 | 450 | 450 | |||||
| A2 Wheel base mm | 1600 | 1600 | 1700 | 1700 | |||||
| Tread | B1 Front tread mm | 970 | 970 | 1000 | 1000 | ||||
| B2 Rear tread mm | 970 | 970 | 970 | 970 | |||||
| Tyre | Front tyre | 7.00-12 | 7.00-12 | 28×9-15 | 28×9-15 | ||||
| Rear tyre | 6.00-9 | 6.00-9 | 6.50-10 | 6.50-10 | |||||
| Total weight kg | 3320 | 3680 | 4270 | 4550 | |||||
| B3 Fork width mm | 122 | 122 | 125 | 125 | |||||
| H4 Fork thickness mm | 45 | 45 | 45 | 45 | |||||
| Backrest height mm | 1000 | 1000 | 1225 | 1225 | |||||
| A3 Fork length mm | 900(1070) | 900(1070) | 1070 | 1070(1200) | |||||

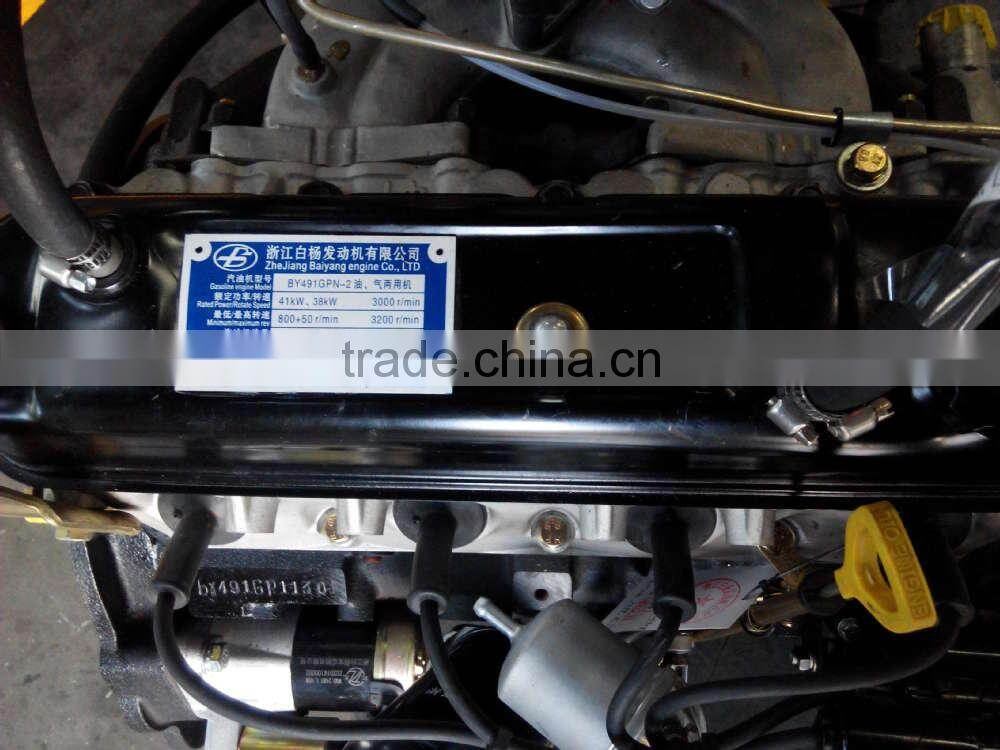

| Engine | Engine model | GQ-4Y | GQ-4Y | GQ-4Y | GQ-4Y | ||||
| Engine rated outpute kw/rmp | 34 | 34 | 34 | 34 | |||||
| Battery V/Ah | 12/80 | 12/80 | 12/80 | 12/80 | |||||
| Engine rated torque Nm/rmp | 142/1800 | 142/1800 | 142/1800 | 142/1800 | |||||
| Engine fuel tank capacity L | 60 | 60 | 60 | 60 | |||||

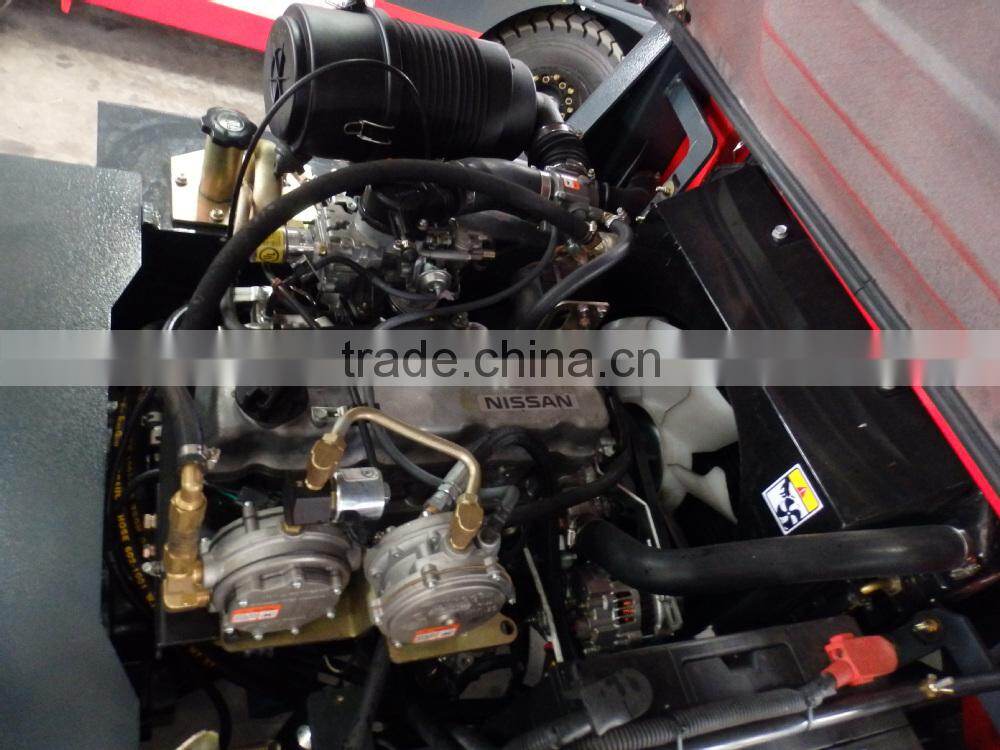

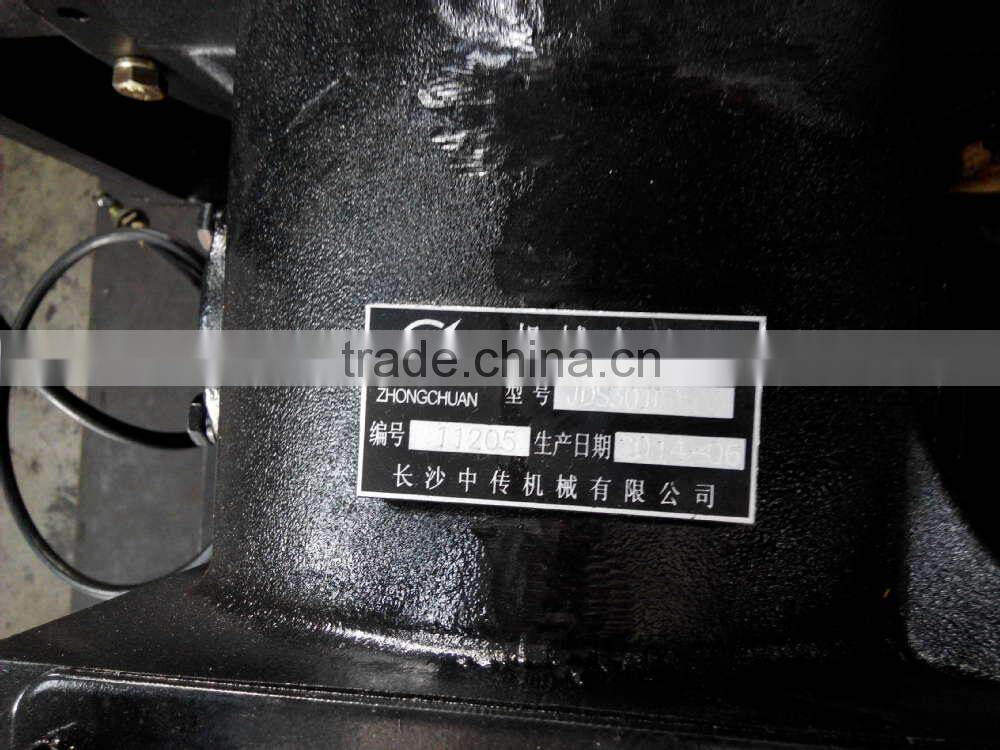

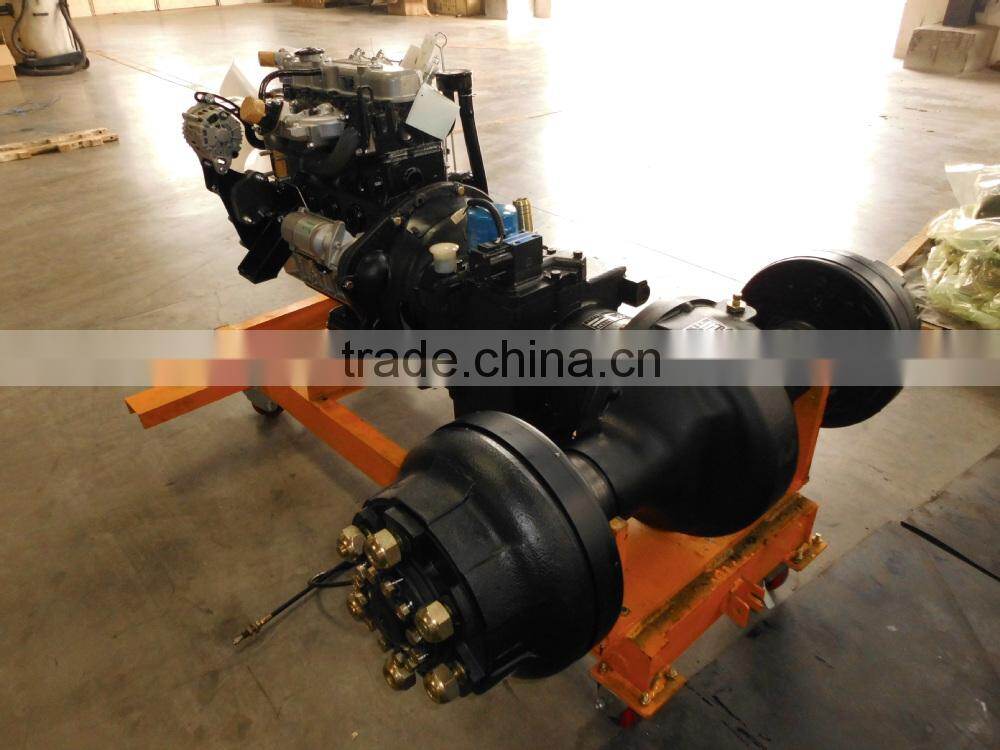

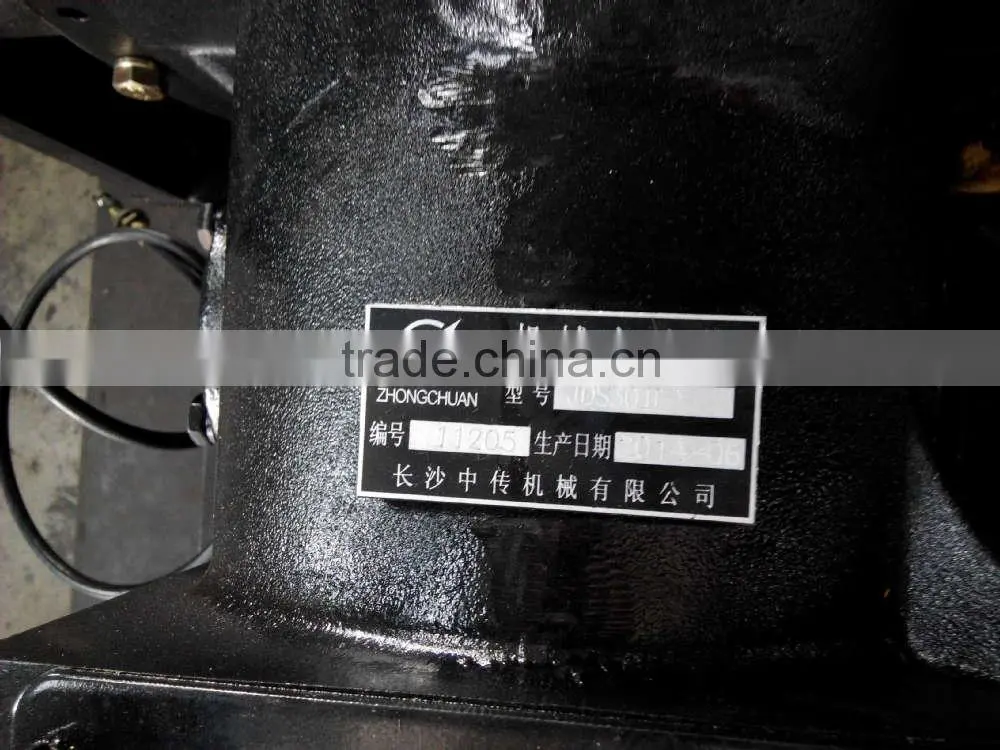

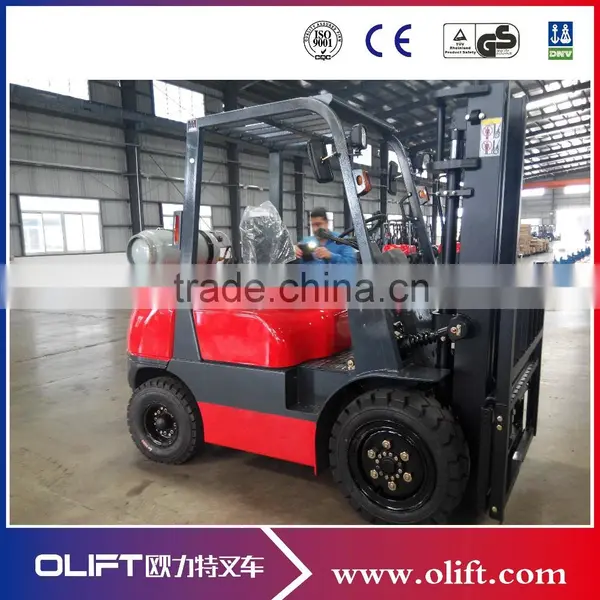

Detail Pictures
