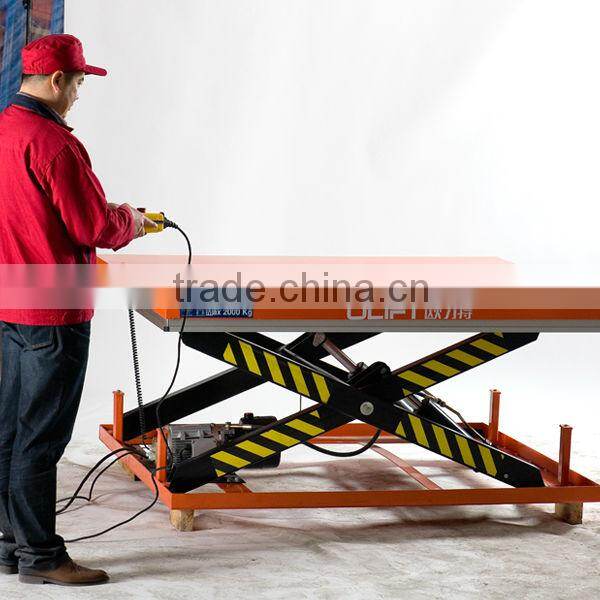

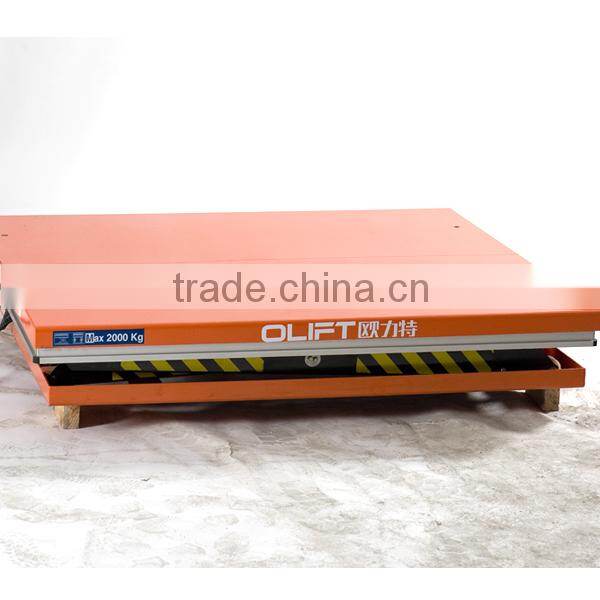

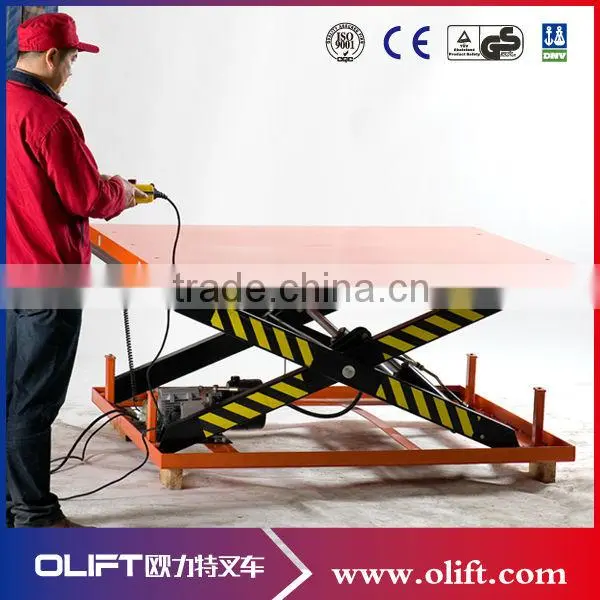

2000kg Electric scissor lift platform/table (with CE)
Introduction
UM series electric lift table meet EN norm and ANSI/ASME safety standards These models can be used in above-floor or in-floor.
1)Upper platform lifted with aluminum safety bar preventing descent on obstructions.
2)Low -tention(24v)control box with up-down buttons
3)Selflubricating bushings on pivot points.
4)Removealbe liftig eye to facilitable handling and lift table installation.
Specification:
Model.No |
| UM1001 | UM1002 | UM2001 | UM2002 | UM4001 | UM4002 |
Platform rated capacity | kg | 1000 | 1000 | 2000 | 2000 | 4000 | 4000 |
Min.platform height | mm | 205 | 205 | 230 | 230 | 240 | 240 |
Max.platform height | mm | 990 | 990 | 1000 | 1000 | 1050 | 1050 |
Platform size | mm | 1300*820 | 1600*1000 | 1300*850 | 1600*1000 | 1700*1200 | 2000*1200 |
Base size | mm | 1240*630 | 1240*630 | 1220*785 | 1220*785 | 1600*900 | 1600*900 |
Overall net weight | kg | 160 | 186 | 235 | 268 | 375 | 405 |

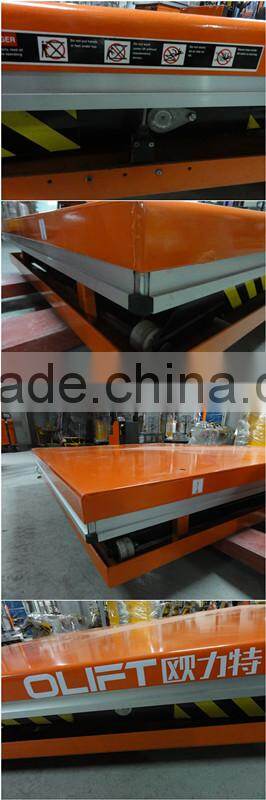

Structure

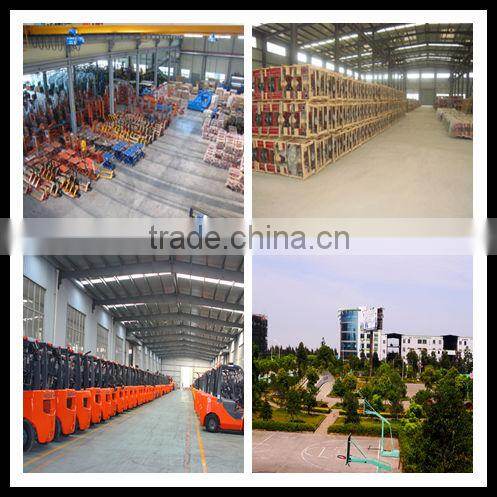

Our manufacturer
Certifications
