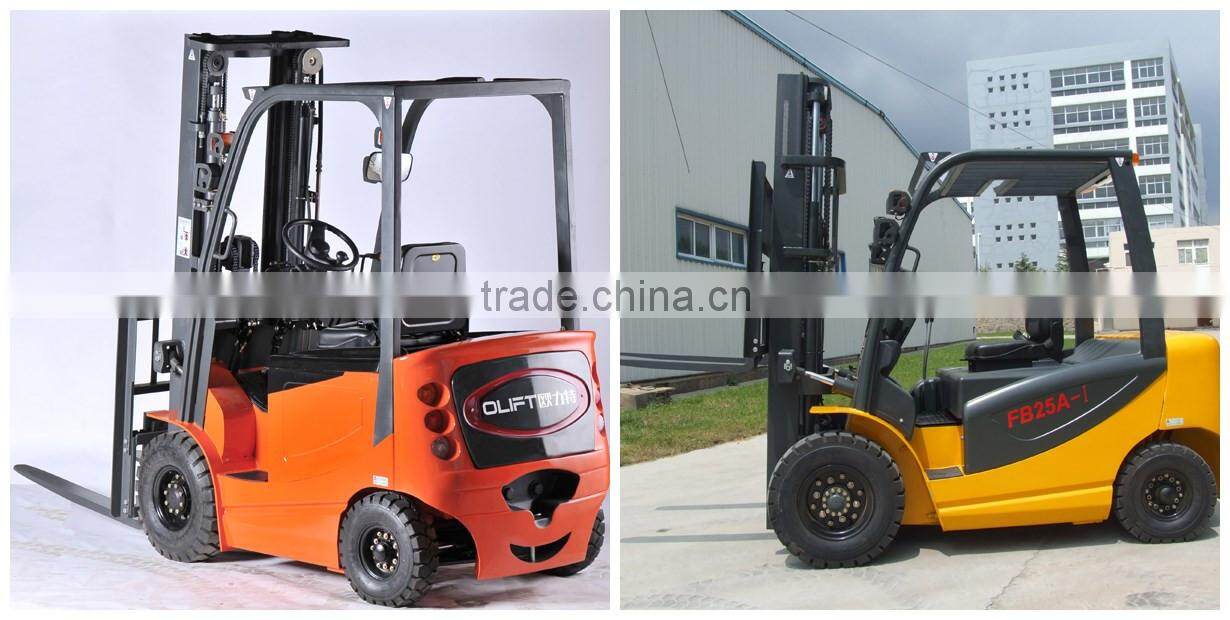

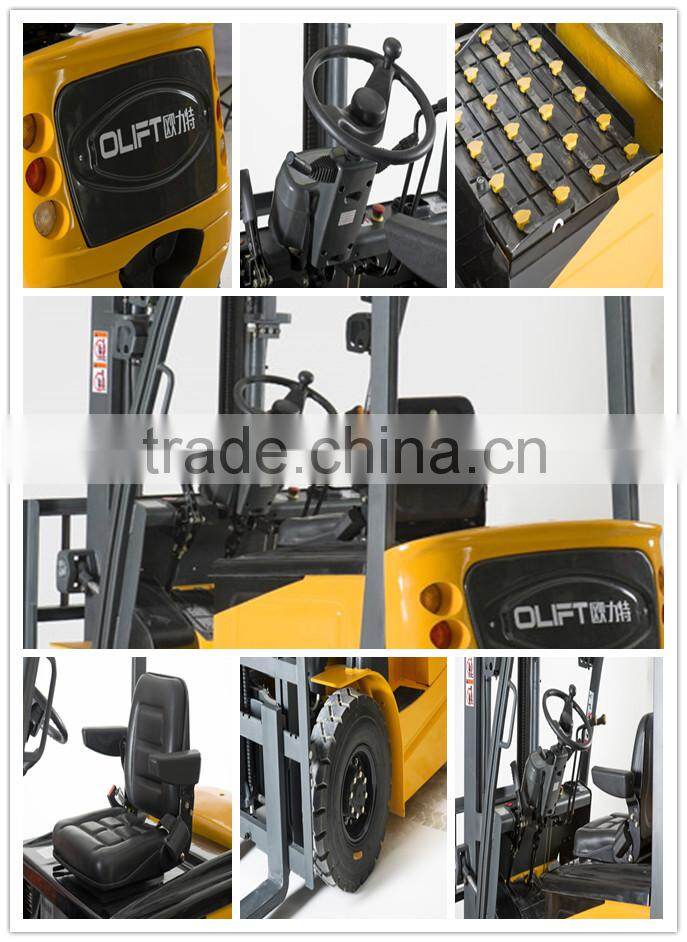

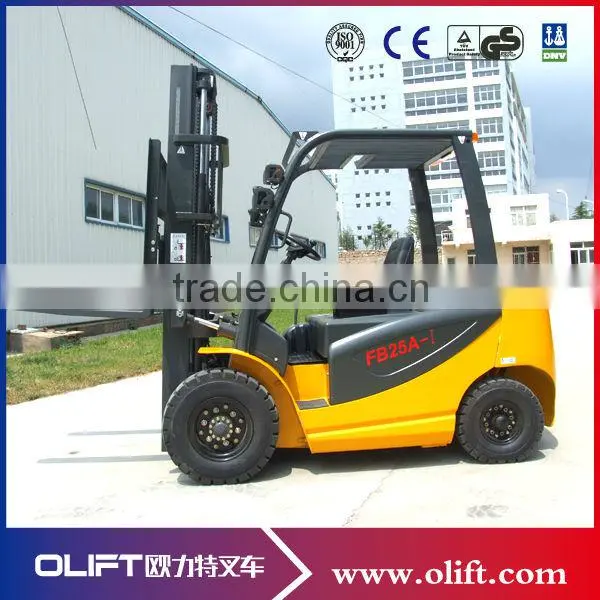

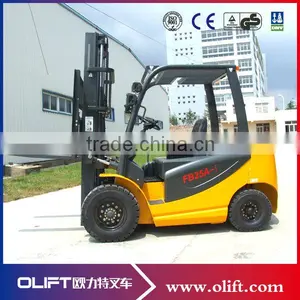

3000kg Four-Wheel Cheap DC/AC Electric Forklift FB30 Most Popular

Name: 3000kg Four-Wheel Cheap DC/AC Electric Forklift FB30 Most Popular
Brand: Olift
SKU: 100477275
Availability: InStock

US$ 1,000 - 3,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

Olift

Qingdao Olift Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name Olift

Model Number FB30

Type Other, Electric Forklift

Power Souce DC Motor

Rated Loading Capacity 3000kg

Max. Lifting Height 3000-6000mm

Min. Lifting Height 40mm

Fork Length 2135mm

Fork Width 1088mm

Overall Dimensions 3655*1205*2070mm

Certification CE,ISO,GS,DNV,TUV

1.6tons-3.0tons Four-wheel electric counterbalanced truck (with CE)

Introduction

FB Series electric forklift is a smart design for both indoor and outdoor material handling.

We have different design on capacity from 1600kgs to 3000kgs maximum for different demand of material weight.

While for stacking height, it could satisfy your request from 3m to 6m, you could handle with your loading, moving or stacking

works easily with it.

With 2350 turing radius, you could easily move it in your warehouse. A special feature of FB is that, he could steering with single point.

We get video for its steering function on hand now. Contact us now to ask for it!

Specifications:

model		FB16/FB16A	FB18/FB18A	FB20/FB20A	FB25	FB25A	FB30
capacity	kg	1600	1800	2000	2500	2500	3000
lifting height	mm	3000-6000	3000-6000	3000-6000	3000-6000	3000-6000	3000-6000
load center distance	mm	500	500	500	500	500	500
fork rack width	mm	1088	1088	1088	1160	1160	1200
height of overhead guard	mm	2015-2610	2015-2610	2015-2610	2040-2654	2040-2654	2070-2684
height mast extened	mm	4067-7067	4067-7067	4067-7067	4067-7067	4067-7067	4250-7250
fork length	mm	2135	2135	2135	2380	2585	2585
overrall width	mm	1100	1100	1100	1150	1150	1205
overrall length	mm	3205	3205	3205	3450	3655	3655
min.turning radius	mm	1900	1900	1900	2150	2350	2350
max.speed (laden/unladen)	km/h	0~15	0~15	0~13.5	0~13.5	0~13.5	0~13
lifting.speed (laden/unladen)	m/s	300	280	270	260	260	220
lifting.speed (laden/unladen)	m/s	<600	<600	<600	<600	<600	<600
max. travel grade (laden/unladen)	%	15	15	15	13	13	13
driving motor	kw	5	5	7	7	7	10.2
lifting motor	kw	8.2	8.2	8.2	8.6	8.6	10
aneroid battery	v/ah	48/450	48/450	48/450	48/630	48/630	80/450
net weight	kg	3050	3150	3280	4050	4150	4350
