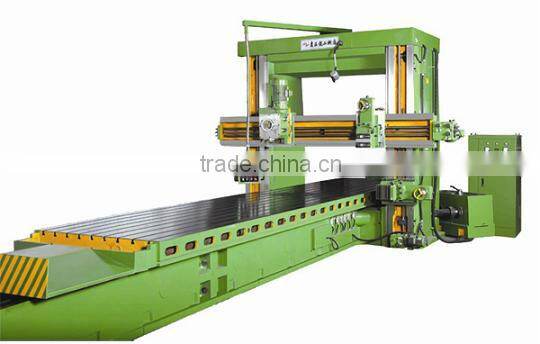

Double Housing Planer Milling Machine

Name: Double Housing Planer Milling Machine
Brand: Longshan
SKU: 100431091
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

Longshan

Zaozhuang Longshan Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Shanghai or negotiable

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name Longshan

Model Number BXM

Voltage negotiable, 380V 50HZ 3PH or negotiable

Power(W) negotiable

Dimension(L*W*H) negotiable

Weight negotiable

Certification ISO9001:2008

Warranty 1 year under normal operation

After-sales Service Provided Engineers available to service machinery overseas

Heavy planer milling machines				BXM220A	BXM220B	BXM220C	BXM220D	BXM220E	BXM225B	BXM225C	BXM225D	BXM230B
Max. allowable workpiece dimensions			Length mm	4000	6000	8000	10000	12000	6000	8000	10000	12000
			Width mm	2000	2000	2000	2000	2000	2500	2500	2500	3000
			Height mm	1500	1500	1500	1500	1500	1500	1500	1500	1500
Max. machining weight kg				18000	22000	32000	40000	48000	28000	35000	40000	45000
Main motor power kw				30	37	45	55	55	45	55	75	75
Table	Length mm			4000	6000	8000	10000	12000	6000	8000	10000	12000
	Width mm			1600	1600	1600	1600	1600	2200	2200	2200	2600
	Allowable pull of rack N.			100000
	Speed m/min			0.08-30 Stepless
Dis. between columns mm				2020	2020	2020	2020	2020	2520	2520	2520	3020
Feeding rate of vertical tool rest		Horizontal mm		0.2-25 Stepless
Feeding rate of vertical tool rest		Vertical mm		0.2-25 Stepless
Feeding rate of side tool rest mm				0.2-12 Stepless
Up/down speed of beam mm/min				360
Max. sectional area of planing arbor mm				60 x 60
External dimensions		Length mm		8700	12700	16700	20700	24700	12700	16700	20700	24700
		Width mm		4300	4300	4300	4300	4300	4800	4800	4800	5300
		Height mm		3500	3500	3500	3500	3500	4200	4200	4200	4650
