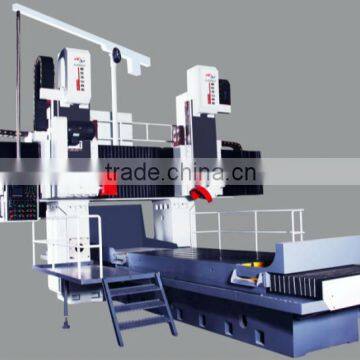

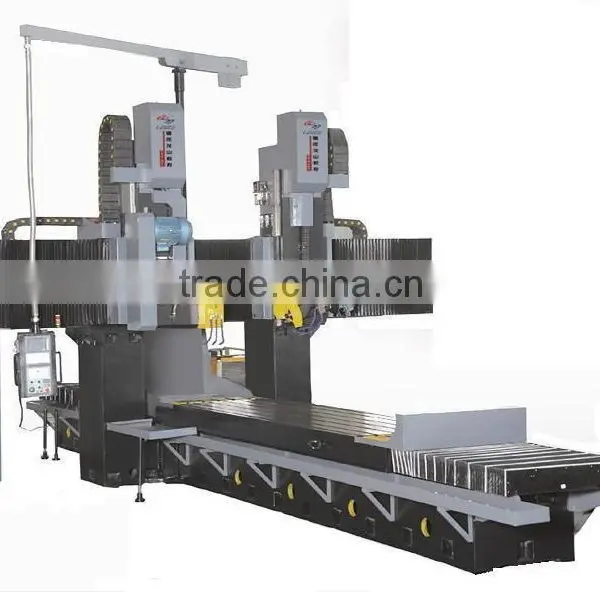

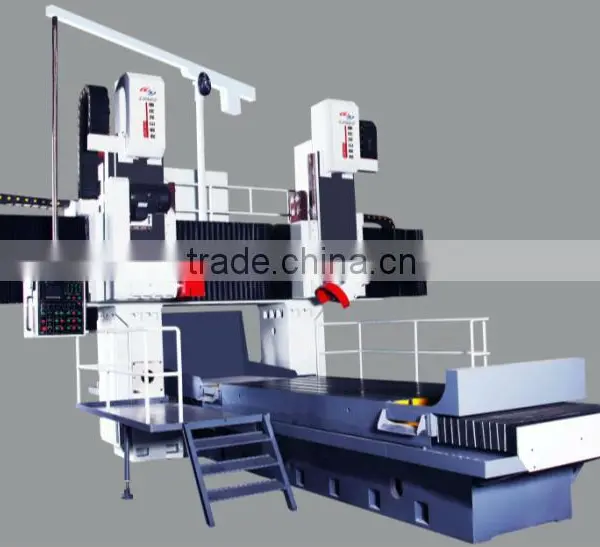

Help CenterMK Series Programmable Guideway Grinder
Related Products
Features:
1. Composed of PLC,hydraulic transmission system,servo motor-reducer-ball screw drive system,box shape frame,etc.
2. Horizontal grinding head is mainly for grinding level plane(Grinding incline 90°of V type guideway is possible),vertical grinding head is for side plane(Electrical angle adjustment & hydraulic locking,grinding incline of V type guideway & swallow-tail slot at any angle is possible).
3. Gantry structure and close,strong & box structure composed of double column,beam & bed.Rectangular staged guideway with good mechanical property & high rigidity.
4. State-patented spindle for horizontal grinding head and roller bearings for vertical grinding head.
5. Stepless & stable table motion with low noise,independent hydraulic station with cooling unit. Long-range-control & stepless table moving speed with inching & auto function.
6. It is with auto lubrication and it stops & alarms automatically if oil not enough.
NO. |
Specifications |
MK1630 |
MK1640 |
MK2040 |
MK2060 |
MK2080 |
MK2860 |
MK2880 |
|
1 |
Max. grinding width/length mm |
1600/3000 |
1600/4000 |
2000/4000 |
2000/6000 |
2000/8000 |
2800/6000 |
2800/8000 |
|
2 |
Max. grinding height(H./V.) mm |
800/750 |
800/750 |
1200/1050 |
1200/1050 |
1200/1050 |
1500/1200 |
1500/1200 |
|
3 |
Max. work-piece height mm |
800 |
800 |
1200 |
1200 |
1200 |
1500 |
1500 |
|
4 |
Max. work-piece weight kg |
5000 |
6000 |
8000 |
10000 |
12000 |
25000 |
30000 |
|
5 |
Distance between columns mm |
1700 |
1700 |
2100 |
2100 |
2100 |
3000 |
3000 |
|
6 |
Table width/length mm |
1250/3000 |
1250/4000 |
1600/4000 |
1600/6000 |
1600/8000 |
2500×6000 |
2500×8000 |
|
7 |
T-slot quantity/width |
7/28 mm |
7/28 mm |
9/28 mm |
9/28 mm |
9/28 mm |
11/28 mm |
11/28 mm |
|
8 |
Max. table travel mm |
3200 |
4200 |
4200 |
6200 |
8200 |
8200 |
8200 |
|
9 |
Table moving speed m/min |
5-18 |
5-18 |
5-18 |
5-18 |
5-18 |
5-18 |
5-18 |
|
10 |
Spindle speed (H./V.) rpm |
1300/1450 |
1300/1450 |
1300/1450 |
1300/1450 |
1300/1450 |
868/970 |
868/970 |
|
11 |
Sand-wheel size (O./W./I.) mm |
H. |
φ500/75/φ203 |
φ500/75/φ203 |
φ500/75/φ203 |
φ500/75/φ203 |
φ500/75/φ203 |
φ600×100×φ203 |
φ600×100×φ203 |
V. |
φ405/62/φ127 |
φ405/62/φ127 |
φ405/62/φ127 |
φ405/62/φ127 |
φ405/62/φ127 |
φ500×75×φ203 |
φ500×75×φ203 |
||
12 |
Main Motor power (H./V.)Kw |
11/7.5 |
11/7.5 |
11/7.5 |
11/7.5 |
11/7.5 |
22/11 |
22/11 |
|
13 |
Dimensions (L./W./H.) mm |
12000/6000/6000 |
16000/6000/6000 |
16000/6500/6500 |
21000/6500/6500 |
25000/6500/6500 |
21000×9000×6600 |
25000×9000×6600 |
|
