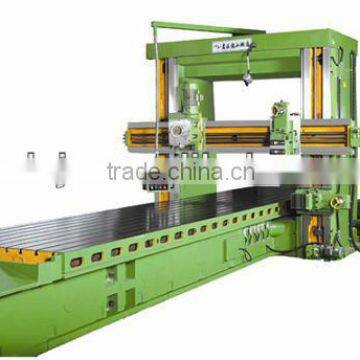

BXM Series Double Column Planer

Name: BXM Series Double Column Planer
Brand: Longshan
SKU: 100430913
Availability: InStock

BXM Series Double Column Planer thumbnail-1

BXM Series Double Column Planer thumbnail-2

BXM Series Double Column Planer thumbnail-3

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

Longshan

Contact Supplier Request Quote Chat Now

Zaozhuang Longshan Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao or negotiable

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Shandong, China

Brand Name Longshan

Model Number BXM

Voltage 380V 50HZ 3PH or negotiable

Power(W) negotiable

Dimension(L*W*H) negotiable

Weight negotiable

Certification ISO9001:2008

Warranty 1 year under normal operation

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Double column planer can be with plane and mill.
1.High cost performance.
2.Can be produced as customers' special requirement

Main transmission adopts SRD or servo system,wide range of stepless speed change of table's movement satisfies the requirements of planing/milling/grinding at different speed, independent spindle feeding box enables more balanced feeding to process plane/inclined plane/T slot/combined guideway/rack,etc.

1.To drag high-precision rack with multi-head worm to realize more stable table movement.

2.To get enough lubrication of table at any speed with independent lubrication system.

3.The adoption of heat-treatment techniques like drawing the temper off/quiver-ageing/hyperacoustic quenching on key parts as the machine body/column enables more stable accuracy and longer working life.

4.Machine body/column/beam/table are designed according to the parameters of heavy-duty machines, and the material is cast iron (≥HT250),so the machine is with better stability & accuracy retentivity.

Specifications						BXM20 series Heavy Planer Milling Machines
						BXM220A	BXM220B	BXM220C	BXM220D	BXM220E	BXM225B		BXM225C		BXM225D		BXM230B
Max. workpiece dimensions			Length mm			4000	6000	8000	10000	12000	6000		8000		10000		12000
			Width mm			2000					2500						3000
			Height mm			1500											2000
	Max. load kg					18000	22000	32000	40000	48000	28000		35000		40000		45000
	Motor power kw					30	37	45	55	55	45		55		75		75
Table		Length mm				4000	6000	8000	10000	12000	6000		8000		10000		12000
		Width mm				1600					2200						2600
		Max.allowable pull of rack N				100000
		Feeding speed m/min				0.08-30 Stepless
Distance between columns mm						2020					2520						3020
Vertical tool rest feeding rate					Horizontal mm	0.2-25 Stepless
					Vertical mm	0.2-25 Stepless
Side tool rest feeding rate mm						0.2-12 Stepless
Beam up/down speed mm/min						360
Max. sectional area of planing arbor mm						60 x 60
External dimensions				Length mm		8700	12700	16700	20700	24700		12700		16700		20700		24700
				Width mm		4300	4300	4300	4300	4300		4800		4800		4800		5300
				Height mm		3500	3500	3500	3500	3500		4200		4200		4200		4650
