Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > X20 Series Conventional Gantry Milling Machines

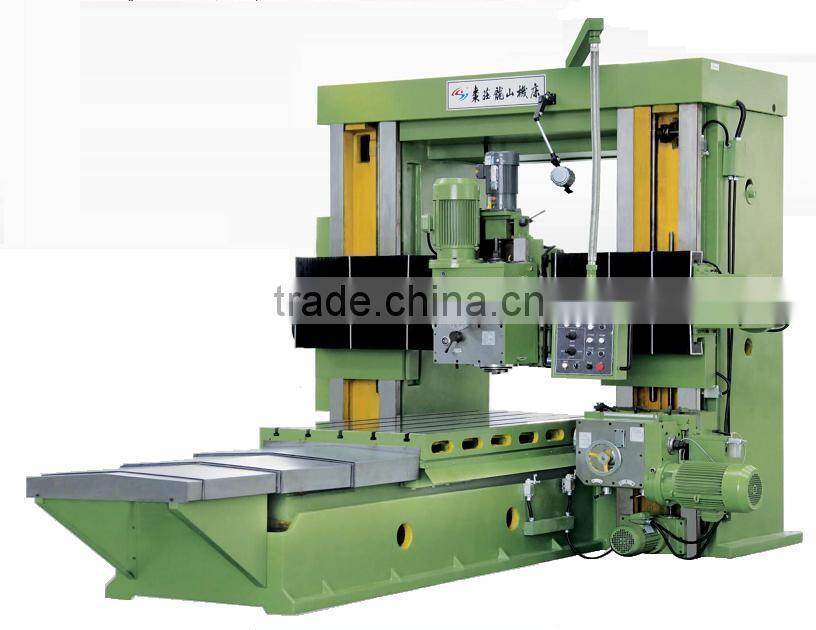

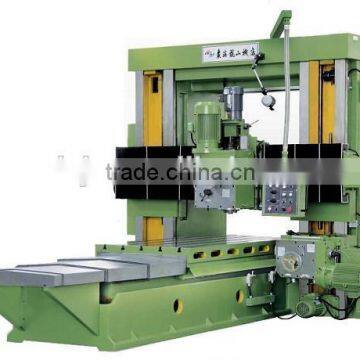

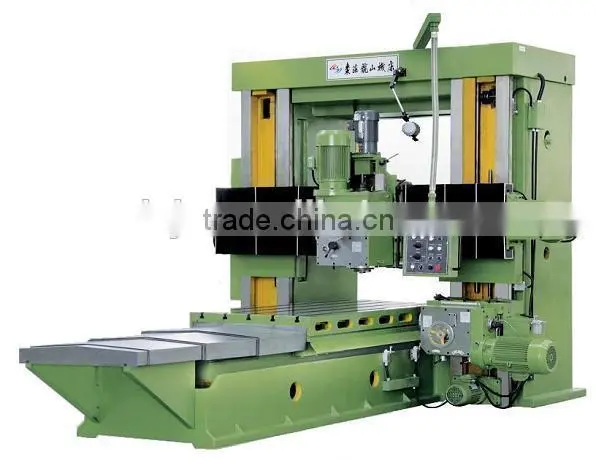

X20 Series Conventional Gantry Milling Machines

Name: X20 Series Conventional Gantry Milling Machines
Brand: Longshan
SKU: 100430953
Availability: InStock

X20 Series Conventional Gantry Milling Machines thumbnail-1

X20 Series Conventional Gantry Milling Machines thumbnail-2

X20 Series Conventional Gantry Milling Machines thumbnail-3

X20 Series Conventional Gantry Milling Machines thumbnail-4

X20 Series Conventional Gantry Milling Machines thumbnail-5

X20 Series Conventional Gantry Milling Machines thumbnail-6

X20 Series Conventional Gantry Milling Machines photo-1

X20 Series Conventional Gantry Milling Machines photo-2

X20 Series Conventional Gantry Milling Machines photo-3

X20 Series Conventional Gantry Milling Machines photo-4

X20 Series Conventional Gantry Milling Machines photo-5

X20 Series Conventional Gantry Milling Machines photo-6

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

Longshan

Contact Supplier Request Quote Chat Now

Zaozhuang Longshan Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao or negotiable

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Shandong, China

Brand Name Longshan

Model Number X20

Type Other, gantry

CNC or Not Normal

Voltage negotiable

Power(W) negotiable

Dimension(L*W*H) negotiable

Weight negotiable

Certification ISO9001:2008

Warranty 1 year under normal operation

After-sales Service Provided Engineers available to service machinery overseas

Core technique of it originates from Taiwan, scientific & logical design of the structure and adoption of the advanced function unit can realize strong cutting function,high working efficiency,safe & reliable movement and long working life.

1.Heat-treatment technics & mechanical lubrication are adopted on the guideway of the machine body to reduce friction & prolong working life of the machine.

2.Stepless table speed change.

3.Rectangular or flat-V bed guideways, rigid machine bed/beam/column ensure stability of the machine in strong cutting.

4.Milling head can move vertically/horizontally or swivel ±30°.

It is used in machining, moulding and some other industries, especially the machining of plane/end face/inclined plane/T slot/ combined guideway of large/medium/small machine parts.

Specifications			X20 series Gantry Milling Machines
Specifications			X2014-20	X2014-30	X2014-40	X2014-60	X2016-30	X2016-40	X2016-60	X2020-40	X2020-60	X2025-40	X2025-60
Table		Size(WxL) mm	1000 x 2000	1000 x 3000	1000 x 4000	1000 x 6000	1200 x 3000	1200 x 4000	1200 x 6000	1600 x 4000	1600 x 6000	2000 x 4000	2000 x 6000
		Feeding speed mm/min	30-300
		Fast feeding speed mm/min	2500
		Motor power kw	4	5.5					7.5	5.5	11
		Max. load kg	4000	5000	6000	7000	7000	8000	10000	9000	12000	10000	14000
Max. workpiece dimensions		Length mm	2000	3000	4000	6000	3000	4000	6000	4000	6000	4000	6000
		Width mm	1400				1600			2000		2500
		Height mm	800				1200			1500
Distance between columns mm			1450				1620			2020		2520
Milling head	Motor power kw		7.5									11
	Spindle taper		ISO50
	Spindle speed r/min		100-685(6 steps)									66-660(8 steps)
	Swivel angle		± 30°
Power of motor for spindle box feed kw												1.5
Recommendatory milling disc diameter mm			Φ160									Φ200
External dimensions		Length mm	6080	8080	10080	14080	8080	10080	14080	10080	14080	10080	14080
		Width mm	2630	2630	2630	2630	3230	3230	3230	3630	3630	4300	4300
		Height mm	2800	2800	2800	2800	3000	3000	3000	3500	3500	3500	3500
