UL758 Standard High Voltage EV Cable XLPE Insulated Internal Harness Wire

UL758 Standard High Voltage EV Cable XLPE Insulated Internal Harness Wire thumbnail-1
UL758 Standard High Voltage EV Cable XLPE Insulated Internal Harness Wire thumbnail-2
UL758 Standard High Voltage EV Cable XLPE Insulated Internal Harness Wire thumbnail-3
UL758 Standard High Voltage EV Cable XLPE Insulated Internal Harness Wire thumbnail-4
UL758 Standard High Voltage EV Cable XLPE Insulated Internal Harness Wire thumbnail-5
UL758 Standard High Voltage EV Cable XLPE Insulated Internal Harness Wire photo-1
UL758 Standard High Voltage EV Cable XLPE Insulated Internal Harness Wire photo-2

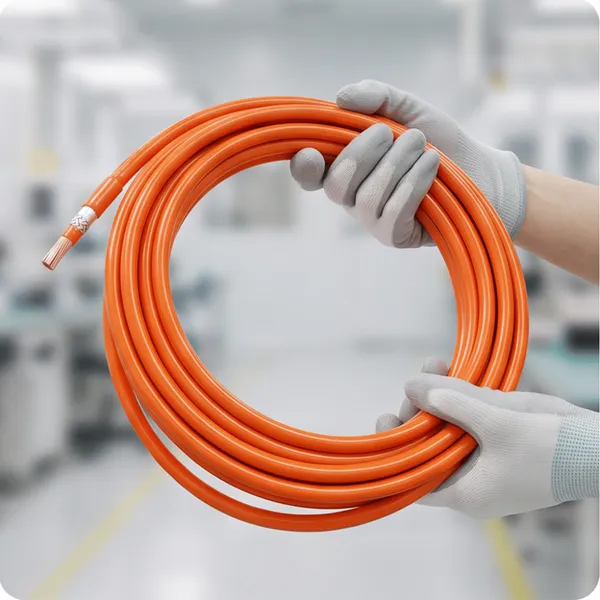

UL758 Standard High Voltage EV Cable XLPE Insulated Internal Harness Wire photo-3
UL758 Standard High Voltage EV Cable XLPE Insulated Internal Harness Wire photo-4
UL758 Standard High Voltage EV Cable XLPE Insulated Internal Harness Wire photo-5

Product Spotlights

• Full range of cables meets VW-1 flame retardant rating
• Performance retention ≥80% before and after ageing
• Resistant to high/low temperatures, oils, acids/alkalis, water, abrasion and cracking
• Comprehensive certification including UL and CE approvals
• UL conducts quarterly/annual sampling inspections at production facilities to ensure consistent cable quality
US$ 0.99 - 8 MOQ: 50 Meters
Key Specifications
Get Latest Price
Type:
Insulated
Certification:
ISO9001, ROHS
Application:
Heating, Other, Electric Vehicles, Harnss
Contact Supplier Request Quote Chat Now
Guangdong OMG Transmitting Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Insulated
Certification ISO9001, ROHS
Application Heating, Other, Electric Vehicles, Harnss
Insulation Material XLPE
Conductor Material Copper
Conductor Type Stranded
Brand Other, OMG EV CABLE
Sheath Material Other, XLPE
Material Shape Round Wire
Range of Application Cold-Resistant
Rated Temperature -40℃-+125℃
Rated Voltage Optional 1000V AC or 1500V AC
Aging 158℃*168h，comply with UL 758
Dielectric Voltage 3000V AC*1min；4000V AC*1min
Deformation Test 121℃*4h，comply with UL 758
Flame Test VW-1，comply with UL 758
Cold Bend Test -40℃*4h，comply with UL 758
Environmental Requirements Compliant with RoHS & REACH
Anti-tear Performance >20N/mm
Min Bending Radius 4*OD
Transport Package Rolled in Reels, Packed in Pallets.
Specification UL30088/UL3820 for 1000V, UL3886 for 1500V
Trademark OMG'
Origin China

UL758 Standard High Voltage EV Cable XLPE Insulated Internal Harness Wire

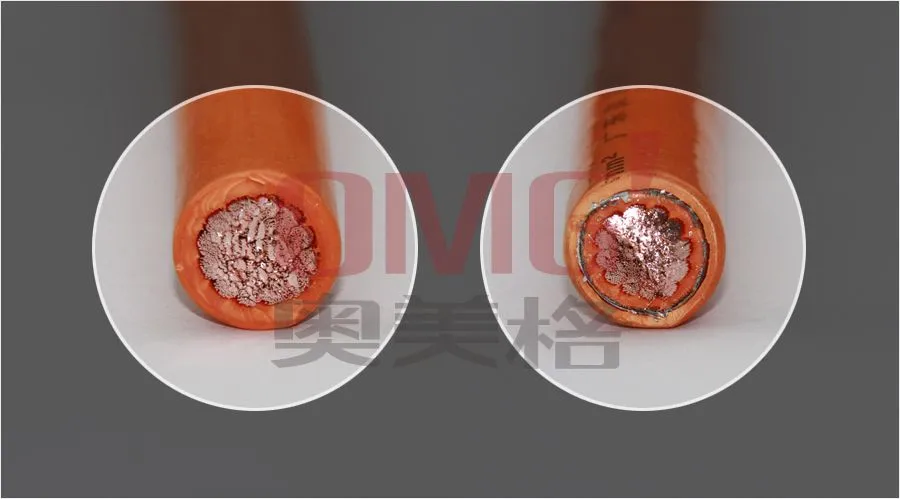

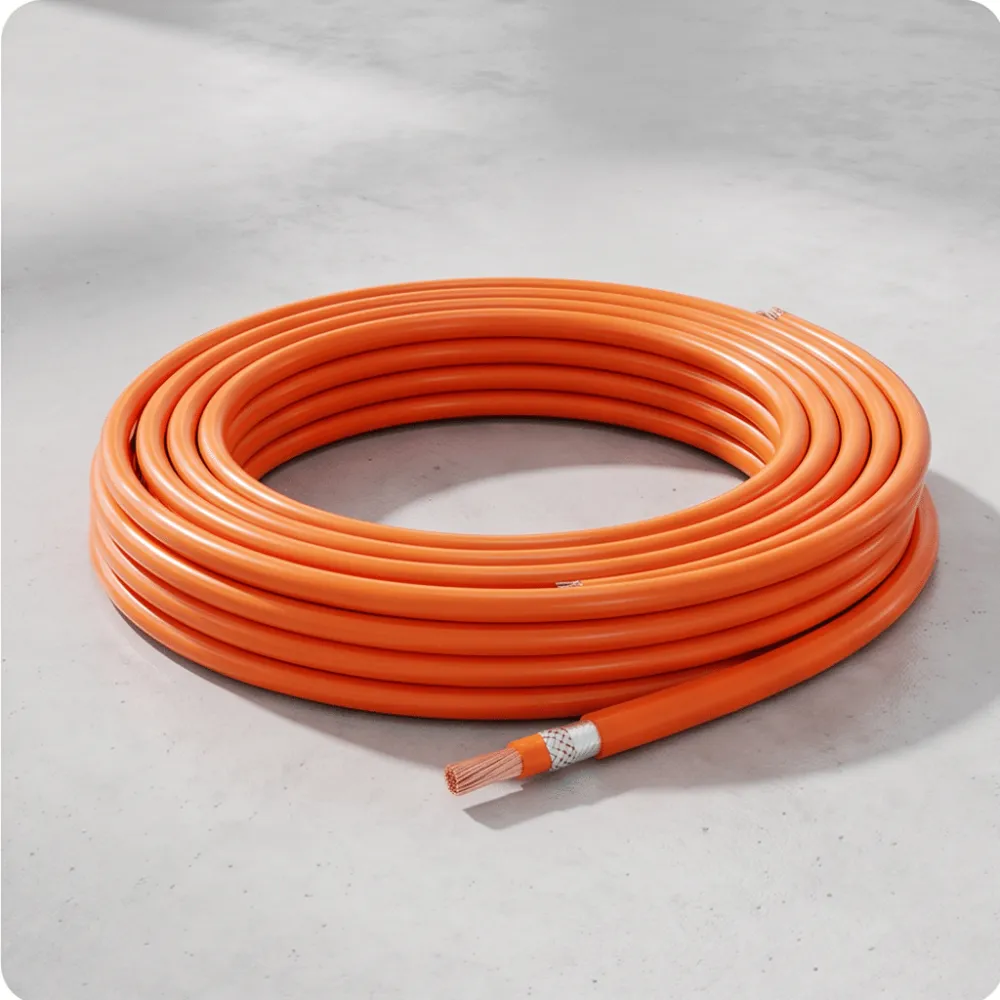

Guangdong-OMG-Transmitting-Technology-Co-Ltd- (1)高压线实物图
