SCHERZINGER 76‑FB‑ZK018 Cast Iron Gear Pump Industrial Medium Fluid Transfer Pump Unit

SCHERZINGER 76‑FB‑ZK018 Cast Iron Gear Pump Industrial Medium Fluid Transfer Pump Unit thumbnail-1
SCHERZINGER 76‑FB‑ZK018 Cast Iron Gear Pump Industrial Medium Fluid Transfer Pump Unit photo-1

Product Spotlights

The SCHERZINGER 76-FB-ZK018 Cast Iron Gear Pump is a durable, efficient solution for industrial fluid transfer. Features include robust cast iron housing, precision gears for smooth flow, customizable options, and ISO9001 factory quality. Ideal for oils, lubricants, and non-corrosive media. Backed by Rossonix's 10+ years of export experience and global market reach.
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Cast Iron
Type:
Gear Pump
Model:
76-FB-ZK018
Contact Supplier Request Quote Chat Now
Rossonix Co.,limited
Platinum Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Cast Iron
Type Gear Pump
Model 76-FB-ZK018
Brand SCHERZINGER
Application Industrial Fluid Transfer
Media Oil, Water, Chemicals (upon request)
Drive Type Electric Motor
Connection Flanged
Color Customizable
Certification ISO9001 Compliant Factory

Product Overview

Flexible options to meet your application needs: These pumps adjust their operating capacity based on energy requirements. This is how SCHERZINGER ensures that its pumps are optimally suited to your specific application scenarios. Our gray cast iron pumps are available in a variety of designs and configurations—ensuring you always get the best-suited performance.


Item Specification
Country of Origin Germany
Product Category Grey Cast Iron Pump with Shaft Seal
Omniclass No. 23.27.17.00
Delivery Displacement 2.8 ml/u
Max Volume Flow 5.0 l/min
Max Differential Pressure 40 bar
Viscosity Range 1 ~ 50000 mPas
Temperature Range -40 ~ 250 ℃
Dimension Tolerance Standard ISO 2768‑mK‑E
Dimension Range & Tolerance 0‑6：±0.130‑120：±0.2120‑400：±0.3400‑1000：±0.5 / ±0.8
Surface Standard DIN EN ISO 1302

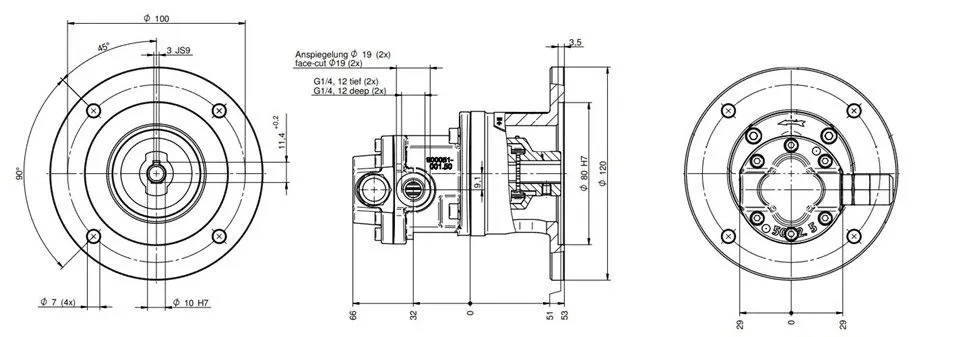

Product Dimensions

8

Performance Features

Flexibly Configurable Gray Cast Iron Pumps


Suitable for a Wide Range of Applications


Available with Various Sealing Designs


Robust and Durable, with Multiple Structural Types.


Rotary Pumps, External Gear Pumps, or Internal Gear Pumps

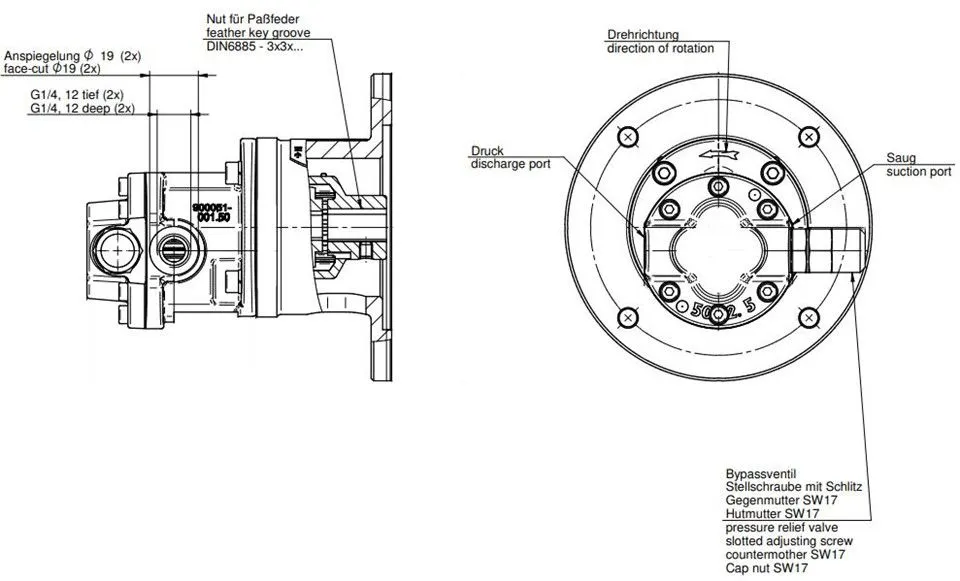

Product Structure and Details


Optional Features and Accessories

Available Types: Radial Shaft Seal, Double-Acting Radial Shaft Seal, Gland Packing


Available Materials: PTFE, NBR, FKM, EPDM

Product Applications

Wind Turbines, Refrigeration Compressor Lubrication, Electroforming
