Help CenterSCHERZINGER 551‑FB‑DU‑ZK3,0‑GN Cast Iron Gear Pump Motor‑mounted Industrial Fluid Handling Equipment
Product Spotlights
Related Products
-
Heavy‑duty Cast Iron Gear Pump SCHERZINGER 251‑FB‑ZK055 For Industrial Liquid Conveying SystemNegotiableMOQ: 1 Piece -
SCHERZINGER 76‑FB‑ZK018 Cast Iron Gear Pump Industrial Medium Fluid Transfer Pump UnitNegotiableMOQ: 1 Piece
-
SCHERZINGER 3050‑045‑ZK71‑140 Industrial Gear Pump High Viscosity Fluid Transfer Pump AssemblyNegotiableMOQ: 1 Piece
-
Teknopump SD 2500 Industrial High Flow Vacuum PumpNegotiableMOQ: 1 Piece
-
Teknopump J 2-170 Centrifugal PumpNegotiableMOQ: 1 Piece
Product Overview
A flexible choice to meet your application needs: These pumps adjust their operating capacity based on energy requirements. This is how SCHERZINGER ensures that its pumps are perfectly tailored to the specific demands of your application. Our gray cast iron pumps are available in a variety of designs and configurations—ensuring you always get the performance that best suits your needs.
| Item | Specification |
|---|---|
| Country of Origin | Germany |
| Product Category | Grey Cast Iron Pump with Shaft Seal |
| Omniclass No. | 23.27.17.00 |
| Delivery Displacement | 49 ml/u |
| Max Volume Flow | 88 l/min |
| Max Differential Pressure | 40 bar |
| Viscosity Range | 1 ~ 50000 mPas |
| Temperature Range | -40 ~ 250 ℃ |
| Dimension Tolerance Standard | ISO 2768‑mK‑E |
| Dimension Range & Tolerance | 0‑6：±0.16‑30：±0.230‑120：±0.3120‑400：±0.5400‑1000：±0.8 |
| Surface Standard | DIN EN ISO 1302 |
Performance Features
Flexibly Configurable Gray Cast Iron Pumps
Suitable for a Wide Range of Applications
Available in Multiple Seal Designs
Robust and Durable, with Various Structural Types
Rotary Pumps, External Gear Pumps, or Internal Gear Pumps

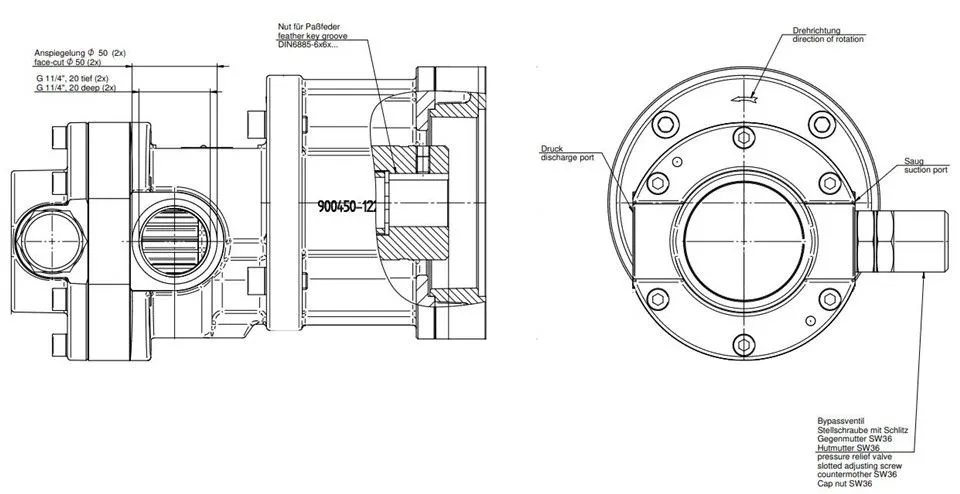

Product Structure and Details
Optional Features and Accessories
Available Types: Radial Shaft Seal, Double-Acting Radial Shaft Seal, Gland Packing
Available Materials: PTFE, NBR, FKM, EPDM

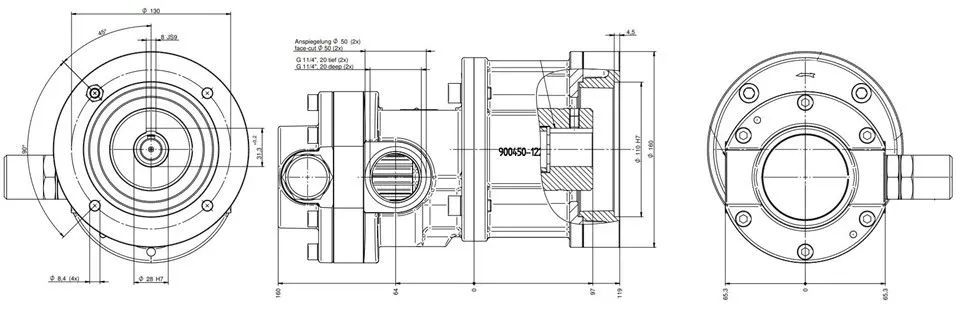

Product Dimensions
Product Applications
Wind turbines, refrigeration compressor lubrication, electroforming
