Oberdorfer Pumps Chemical Gear Pump Chemsteel R102
Product Overview
The CHEMSTEEL R102 M stainless steel gear pump is a high-performance solution designed to meet the demanding requirements of modern industry. It is far more than a simple piece of machinery; it plays a critical role in ensuring process efficiency and reliability across a wide range of applications—from the transfer of high-purity liquids to the handling of viscous or highly corrosive fluids in the food processing and chemical industries.
Constructed from corrosion-resistant stainless steel, the CHEMSTEEL R102 M maintains high performance even under harsh operating conditions. Its robust design supports the delivery of both standard and corrosive media under pressure, making it an ideal choice for applications demanding high durability and chemical resistance.
| Item | Specification |
|---|---|
| Origin | USA |
| Flow @1750 RPM | 0.6 GPM / 2.7 LPM (0.13 m³/h) |
| Theoretical Displacement | 1.9 cm³/rev |
| Max Differential Pressure | 110 psi (7.6 bar) |
| Max System Pressure | 300 psi (20.7 bar) |
| Max Rotation Speed | 1800 rpm |
| Max Fluid Temperature | 450°F (232°C) |
| Min Fluid Temperature | -50°F (-46°C) |
| Standard Port Size | 1/4" Female NPT (FNPT) or 1/4" Male BSPT (BSPT) |
| Motor Weight | 4 lbs (1.8 kg) |
With features such as low noise, ease of maintenance, and a long service life, this gear pump represents a wise and cost-effective investment. It embodies innovation through its adaptability, operational efficiency, and long-term reliability—qualities that are essential for industries where downtime is unacceptable.
Performance Features
High-Precision Fluid Handling: Precision is paramount for gear pumps, and the CHEMSTEEL R102 M excels in this regard. Its manufacturing process strictly adheres to tolerance standards, ensuring that every component operates seamlessly, effectively preventing system contamination and maintaining the purity and integrity of the pumped fluid.
Advanced Materials, Durability: The CHEMSTEEL R102 M gear pump is not just another gear pump for corrosive liquids; it is a paragon of durability. Its pump housing is made of stainless steel or Alloy C, while the gears are available in robust and durable materials such as 316 stainless steel, Alloy C, polytetrafluoroethylene (PTFE), and polyetheretherketone (PEEK), enabling it to withstand harsh environments and ensuring a long service life and superior performance.
Innovative Noise-Reduction Technology: Industrial environments are often plagued by noise pollution, but the CHEMSTEEL R102 M gear pump’s helical gear design effectively addresses this issue. The noise-reduction feature of the helical gear pump reduces operating noise by 10 decibels, providing a quieter and more comfortable working environment without compromising power or efficiency.

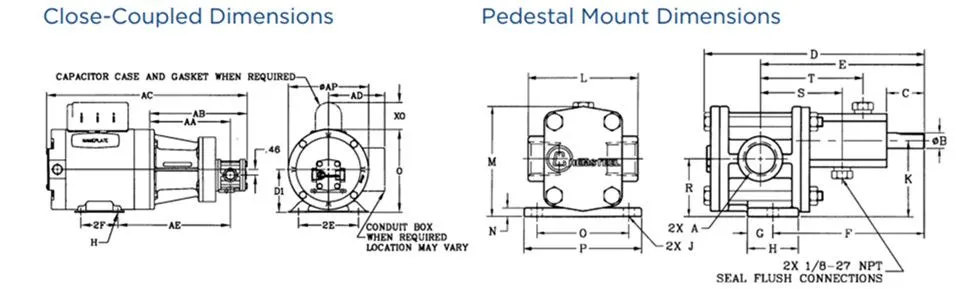

Product Dimensions
