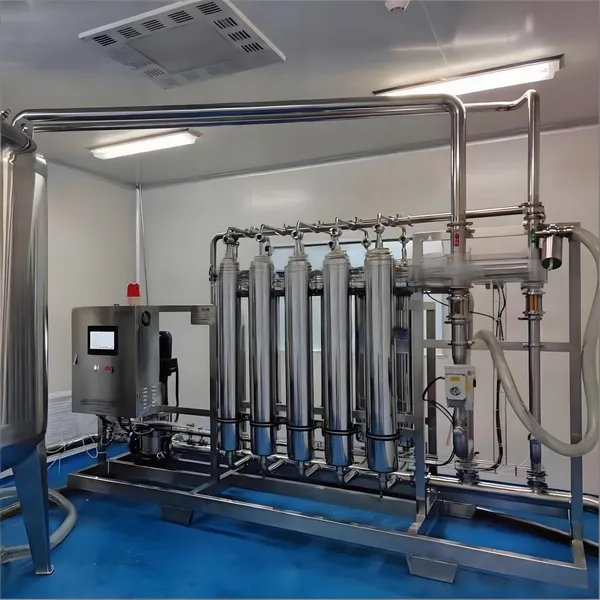

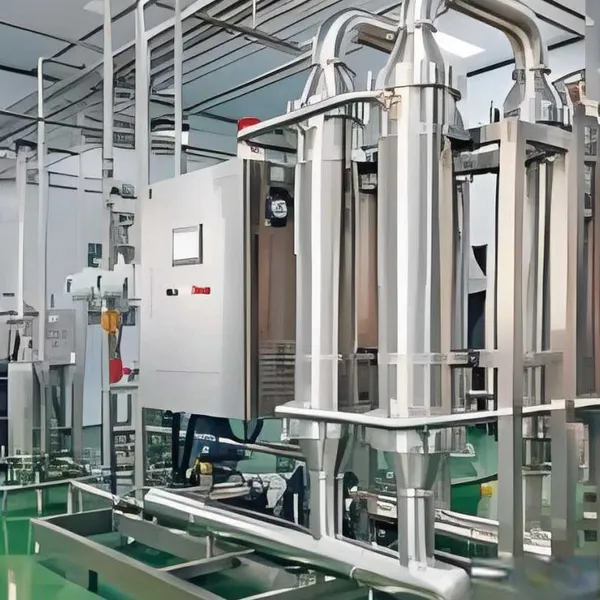

Reverse Osmosis System With 5-Stage Filtration, 1.5T/H, 220V/50Hz, 1-Year Warranty & Free Technical Training
Product Spotlights
5-stage RO system with 1.5T/H capacity, 220V/50Hz, automated controls, 1-year warranty, free technical training, customizable for various feed water conditions, reliable performance for commercial/industrial use.
US$ 100000 - 500000
MOQ: 1 Set
Key Specifications
Get Latest Price
Material:
Stainless Steel / Plastic
Capacity:
1.5 T/H
Power Supply:
220V/50Hz
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
30 days
Related Products
-
Microfiltration Membrane Filter, 0.2μm Pore Size, 304SS Housing, 1 Year Warranty, Mill Test ReportUS$ 100000 - 500000MOQ: 1 Set -
Ultrafiltration Membrane Filtration Plant for Pharmaceutical Industry, 10kDa MWCO, 220V, Standard CompliantUS$ 100000 - 500000MOQ: 1 Set
-
Automatic Microfiltration Membrane Filtration Unit, 0.1μm, 304SS, PLC Control, 1 Year Warranty, Low Energy ConsumptionUS$ 100000 - 500000MOQ: 1 Set
-
Ultrafiltration Membrane Filtration Equipment, 100kDa, Container Transport, 1-Year WarrantyUS$ 100000 - 500000MOQ: 1 Set
-
Nanofiltration Membrane Equipment for Food & Beverage Processing, 5000LPH, 304SS, 2-Year WarrantyUS$ 100000 - 500000MOQ: 1 Set
Material
Stainless Steel / Plastic
Capacity
1.5 T/H
Power Supply
220V/50Hz
Filtration Stages
5-Stage
Application
Commercial / Industrial
Warranty
1 Year
Brand
ZLN (Tianjin ZhuoLiNeng Technology Co., Ltd)
Customizable
Yes
Operation Type
Automatic
Inlet Water Pressure
0.2-0.6 MPa (customizable)
As a leading manufacturer based in Tianjin, China, Tianjin ZhuoLiNeng (ZLN) Technology Co., Ltd is proud to introduce our Reverse Osmosis System with 5-Stage Filtration, 1.5T/H, 220V/50Hz. This system is engineered to deliver high-purity water for commercial and industrial applications, combining robust performance with ease of operation. With a 1-year warranty and free technical training included, we ensure your investment is protected and your team is fully equipped to maintain peak efficiency. Whether you are in food processing, pharmaceutical, or general water treatment, this RO system offers a reliable solution to meet your water quality requirements.
Key Features & Technical Specifications
- 5-Stage Filtration Process: Includes sediment filter, granular activated carbon, block carbon, reverse osmosis membrane, and post-carbon filter to remove up to 99% of contaminants, including chlorine, sediment, heavy metals, and bacteria.
- 1.5 T/H Production Capacity: Ideal for medium to large-scale operations, delivering consistent water output for continuous use.
- 220V/50Hz Power Supply: Compatible with standard industrial electrical systems; other voltage options are available upon request.
- Automated Controls: Equipped with a PLC control system for easy operation, low-pressure protection, and auto-flush function to extend membrane life.
- Durable Construction: Main components made of high-grade stainless steel (frame and membrane housing) and food-grade plastic piping, ensuring long service life.
- Compact Design: Space-saving footprint with integrated pre-treatment and post-treatment, minimizing installation complexity.
| Parameter | Value |
| Model | ZLN-RO-1.5T |
| Rated Capacity | 1.5 m³/h |
| Recovery Rate | ≥75% |
| Desalination Rate | ≥99% |
| Operating Pressure | 0.8-1.2 MPa |
| Inlet Water TDS | < 2000 ppm (higher TDS requires customization) |
Benefits for Your Business
- Consistent Water Quality: The 5-stage filtration ensures stable water quality that meets international standards for drinking and industrial use.
- Cost-Effective Operation: Low energy consumption and high recovery rate reduce overall operating costs. The auto-flush function prolongs membrane life, minimizing replacement frequency.
- Easy Maintenance: Modular design allows quick filter changes and system inspections. Free technical training helps your team perform routine maintenance confidently.
- Scalable Solutions: The system can be customized to handle higher TDS levels or different capacities based on your specific requirements.
- Global Support: As a manufacturer with a worldwide market presence (North America, South America, Europe, Asia, Africa, Oceania, and more), we offer reliable after-sales service and spare parts availability.
Trust & Guarantee
Tianjin ZhuoLiNeng Technology Co., Ltd is a professional manufacturer located in Tianjin, China, with convenient access to the Tianjin Port for efficient global shipping. We have served markets across all continents, including Eastern Europe, Southeast Asia, Africa, and the Americas. Our 1-year warranty covers manufacturing defects, and we provide free technical training (online or on-site upon request) to ensure your system operates at peak performance from day one. With a commitment to quality and customer satisfaction, we invite you to contact us for a customized quotation or to discuss your water treatment needs. Choose ZLN for reliable, cost-effective, and high-performance reverse osmosis solutions.
Frequently Asked Questions (FAQ)
-
What is the recommended feed water quality for this RO system?
The system is designed for feed water with TDS below 2000 ppm. For higher TDS water, we can customize the pre-treatment and membrane configuration. Please provide your water analysis report for a tailored solution. -
How often should I replace the filters?
Sediment and carbon pre-filters typically need replacement every 3-6 months, while the RO membrane can last 2-3 years depending on feed water quality and usage. The system includes a pressure gauge and flow meter to monitor performance. -
Does the system require a water softener?
If your feed water hardness exceeds 100 ppm, we recommend adding a water softener as optional pre-treatment to prevent scaling on the membrane. This can be integrated into the system upon request. -
Is the installation difficult?
The system comes with a detailed manual and connection diagram. With standard plumbing and electrical connections, a qualified technician can install it within a few hours. Free technical training covers installation guidance. -
Can I use this system for seawater desalination?
This model is designed for brackish water or tap water. For seawater desalination, a different membrane type and higher pressure pump are required. We offer customized solutions for seawater applications. -
What is the noise level during operation?
The system operates quietly with a noise level below 60 dB, thanks to the low-noise pump and vibration-dampening design. It is suitable for indoor installation. -
Do you provide spare parts and after-sales service?
Yes, we stock common spare parts such as membranes, filters, and O-rings. Our technical team is available for remote support, and we can arrange on-site service in many regions. -
What is the lead time for this system?
Standard lead time is 15-20 working days after order confirmation. For urgent orders, we can expedite production based on material availability. Contact our sales team for current lead time.
