Steel Reinforcement Mesh: Complete Guide for Construction & Civil Engineering

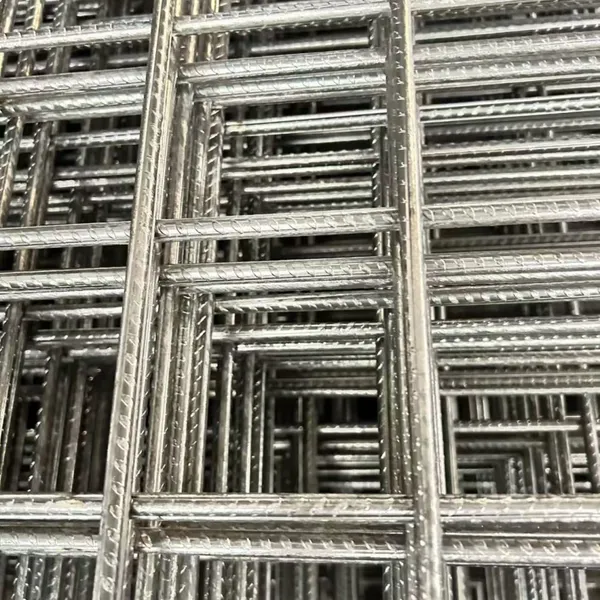

Steel reinforcement mesh, also known as welded steel mesh or reinforcing fabric, is a prefabricated steel structural material made of high-quality carbon steel or ribbed steel bars. Through fully automatic resistance welding technology, longitudinal and transverse steel bars are arranged vertically at standard intervals, with all intersections firmly welded into an integral grid structure.
As a core industrial building material replacing traditional on-site manual steel bar binding, reinforcement mesh has become a standard component in modern prefabricated construction, widely used in global civil engineering, infrastructure, hydraulic engineering and industrial building projects. It effectively enhances concrete tensile strength, prevents cracking, and improves overall structural stability.
1. Main Classification of Steel Reinforcement Mesh
According to raw material type, production process and structural characteristics, reinforcement mesh is divided into three mainstream types, meeting different engineering load and scenario requirements:
1.1 Cold Rolled Ribbed Reinforcement Mesh
Made of cold-rolled ribbed steel bars, with uniform specification, high surface adhesion and strong concrete bonding force. It features stable physical performance and low cost, suitable for ordinary building floors, wall panels and pavement projects.
1.2 Hot Rolled Ribbed Reinforcement Mesh
Adopts hot-rolled deformed steel bar raw materials, with high tensile strength, good toughness and strong bearing capacity. It complies with international construction standards, ideal for high-load structures such as bridges, tunnels and large industrial workshops.
1.3 Cold Drawn Plain Steel Mesh
Welded with smooth cold-drawn steel wires, with neat mesh surface and uniform grid. It is lightweight and cost-effective, mainly used for floor heating protection, small building isolation and ordinary concrete anti-cracking projects.
In addition, according to anti-corrosion requirements, it can be divided into black steel mesh and galvanized reinforcement mesh. Galvanized products have excellent rust and corrosion resistance, adapting to humid, coastal and high-corrosion working environments.
2. Core Technical Advantages
Compared with traditional manual steel bar binding technology, factory pre-welded reinforcement mesh has irreplaceable comprehensive advantages, which is the key reason for its wide promotion in international engineering projects:
2.1 Stable Engineering Quality
Produced by CNC automatic welding equipment, the mesh spacing, steel bar diameter and welding strength are strictly standardized. All welding points are firm without missing welding or virtual welding. The overall rigidity is strong, not easy to deform during concrete pouring, effectively avoiding quality problems such as uneven steel bar distribution in manual construction.
2.2 High Construction Efficiency
Finished mesh panels can be directly laid on site without cutting and binding one by one, which saves more than 60% of on-site working hours, greatly shortens the construction cycle, and is suitable for large-scale, standardized rapid construction projects.
2.3 Excellent Structural Performance
The integrated grid structure can evenly disperse building loads, improve the tensile, compressive and shear resistance of concrete structures, and significantly reduce concrete shrinkage cracks and structural damage, extending the service life of buildings.
2.4 Cost-Effective
Industrial centralized production reduces material waste and labor costs. Standardized specifications reduce on-site material inspection and processing costs, bringing higher economic benefits to engineering contractors.
2.5 Strong Customization
Supports customized production of mesh size, wire diameter, panel size and surface treatment to meet the differentiated requirements of various national construction standards and special engineering projects.
3. Standard Specification Parameters (Common Export Sizes)
We provide full-standard export reinforcement mesh products, compliant with GB, ASTM, BS and EU standard specifications. The conventional parameter range is as follows:
Parameter Item Standard Specification Range
Wire Diameter 2.0mm - 12.0mm
Mesh Spacing 50mm - 300mm (square/rectangular mesh)
Panel Size 1m2m, 2m4m, customizable
Raw Material Q195/Q235 low carbon steel, HRB400 ribbed steel
Surface Treatment Black steel (original), hot-dip galvanized, electro-galvanized
Welding Standard Full spot welding, firm solder joint, no desoldering
All products support third-party testing and can provide complete MTC material test certificates and factory inspection reports to meet international engineering bidding and customs clearance requirements.
4. Wide Application Scenarios
4.1 Building Construction
Used for building floor slabs, wall foundations, roof panels, basement concrete structures, effectively solving the problem of floor cracking and improving the overall seismic performance of buildings.
4.2 Traffic Infrastructure
Widely applied in highway pavements, bridge decks, tunnel linings, airport runways and railway subgrades. It enhances the compression and impact resistance of traffic facilities and adapts to long-term heavy-load operation.
4.3 Municipal & Hydraulic Engineering
Suitable for municipal road renovation, river slope protection, reservoir dam reinforcement, sewage tank anti-cracking structure. Galvanized reinforcement mesh is especially suitable for humid water conservancy environments.
4.4 Industrial & Civil Facilities
Used for factory floor reinforcement, parking lot pavement, floor heating insulation layer protection, residential community landscape engineering, with strong versatility.
5. Our Export Advantages
As a professional steel reinforcement mesh manufacturer for foreign trade, we have standardized production lines and mature export service systems:
1. Strict Quality Control: Raw material screening + online welding inspection + finished product sampling test, fully compliant with international standards, supporting 3.1 certification and third-party inspection.
2. Flexible Customization: Accept OEM & ODM orders, adjust specifications and surface treatment according to customer’s project standards and regional environment.
3. Complete Export Documents: Provide formal invoices, packing lists, MTC certificates, inspection reports and other full set of customs clearance documents.
4. Global Shipping Support: Cooperate with long-term cooperative freight forwarders, support FOB, CIF, DAP and other trade terms, deliver goods from Qingdao Port with fast logistics and low cost.
5. Sufficient Inventory: Conventional standard products are in stock for fast delivery, customized orders have a short production cycle to ensure project progress.
6. Final Summary
Steel reinforcement mesh is a high-efficiency, standardized and cost-effective building reinforcement material. With superior structural performance, convenient construction and wide adaptability, it has become an essential material for modern global construction and infrastructure projects.
Our company provides high-quality standard and customized reinforcement mesh products, focusing on overseas engineering supporting services. If you have size customization, price inquiry or bulk order demands, please feel free to contact us for the latest factory wholesale quotation.
