Model: MGFW1R5, MGFW3, MGFW6, MGFW10,

MGFW15, MGFW30, MGFW40, MGFW80

(Most models are available in stock. Welcome to consult.)

Country of origin: Japan




(The picture shows the MGFW series)



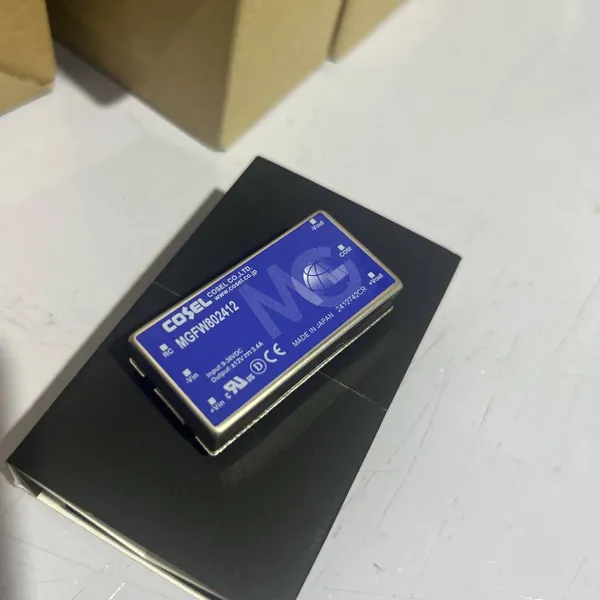

(The picture shows the MGFW10)



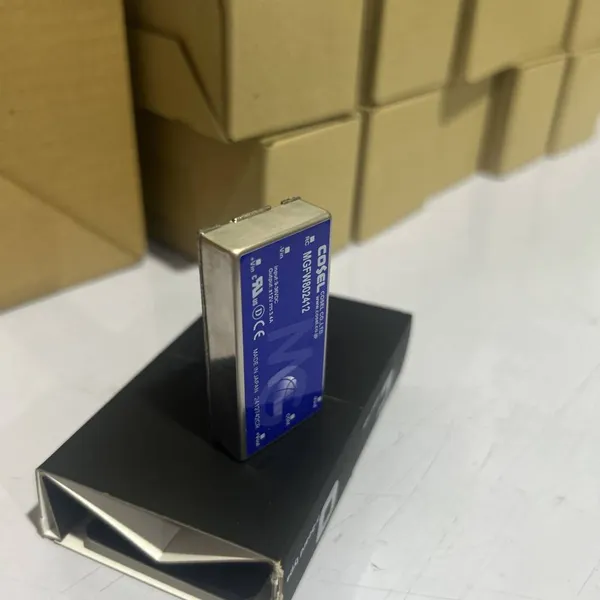

(The picture shows the MGFW30)





Parameter category
 Parameter category
Brand / Series
Japan COSEL / MGFW series (MGFW1R5 / MGFW3 / MGFW6 / MGFW10 / MGFW15 / MGFW30 / MGFW40 / MGFW80)
Product type
 Dual Output DC-DC converter, PCB through-hole (DIP / SIP6 / SIP8) or surface mount (part of models)
Application fields
Power supply for industrial automation PLC/DCS analog circuits (op-amp ±12V/±15V), communication equipment, embedded systems, test and measurement instruments
Input voltage
DC 4.5～13V (5V system) / 9～36V (24V system) / 18～76V (48V system), surge withstand voltage 50V (24V model) / 100V (48V model) for 100ms
Output power
1.5W / 3W / 6W / 10W / 15W / 30W / 40W / 80W (depending on the model)
Output voltage
±5V(+10V) / ±12V(+24V) / ±15V(+30V) (fully regulated); single-channel +24V/+30V can also be used for 30W and above models
Output current
MGFW1R5: ±12V @0.065A / ±15V @0.05A
MGFW6: ±12V @0.25A / ±15V @0.2A
MGFW30: ±12V @1.25A / ±15V @1A
MGFW80: ±12V @3.4A / ±15V @2.67A
Efficiency
Typical 79%～94% (about 79%～81% for 1.5W models; 94% for 80W models, synchronous rectification circuit)
Design features
Industrial standard packages: SIP6(1.5W/3W), SIP8(6W/10W), 1"×1"(15W/40W), 1"×2"(30W/80W)
Six-sided metal shielding (for 15W/30W/40W/80W models), low EMI
No built-in aluminum electrolytic capacitors or tantalum electrolytic capacitors (all-solid-state long-life design)
External fine-tuning of output voltage by ±10% (for 15W and above models)
Control functions
Built-in Remote ON/OFF (remote control on/off) (negative logic: L=ON, H=OFF, for 6W and above models)
External potentiometer connected to the TRM terminal for fine-tuning the output voltage
Protection function
Overcurrent protection (OCP) > 105% rated, automatic recovery
Overvoltage protection (OVP) (30W/40W/80W models) 115% - 140% rated, automatic recovery
Undervoltage lockout (UVLO)
Isolation withstand voltage
Input - output: DC 1,500V (1 minute) or AC 1,000V (1 minute)
Insulation resistance: DC 500V, 1,000MΩ min
Safety certification UL60950 - 1 / UL62368 - 1, c - UL
Safety certification
UL60950 - 1 / UL62368 - 1, c - UL (CSA62368 - 1), EN62368 - 1, EN60950 - 1, CE, RoHS, UKCA
Working environment
-40 to +85℃ (according to the derating curve, derating is required at high temperatures), humidity 20 - 95% RH (no condensation)
Vibration resistance 10 - 55Hz / 10G, shock resistance 490m/s² (50G)
Cooling method: natural convection / forced air cooling (large models)
Warranty
5 - year original factory warranty (10 - year for some models, refer to the instruction manual)
Typical models
MGFW1R52412 (1.5W/±12V/9 - 36V), MGFW63012 (6W/±12V/9 - 36V)
MGFW302415 (30W/±15V/18 - 76V), MGFW804812 (80W/±12V/18 - 76V)






Product Tags: Japanese Cosel , Switching power supply , Imported power supply , PCB-mounted , Cosel power supply
