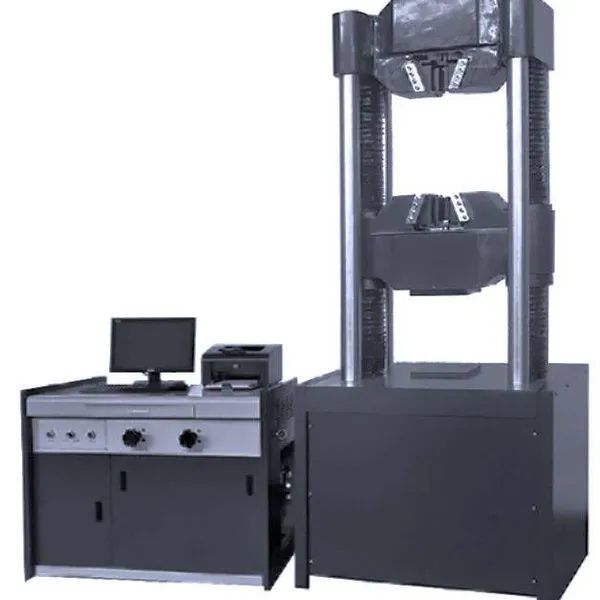

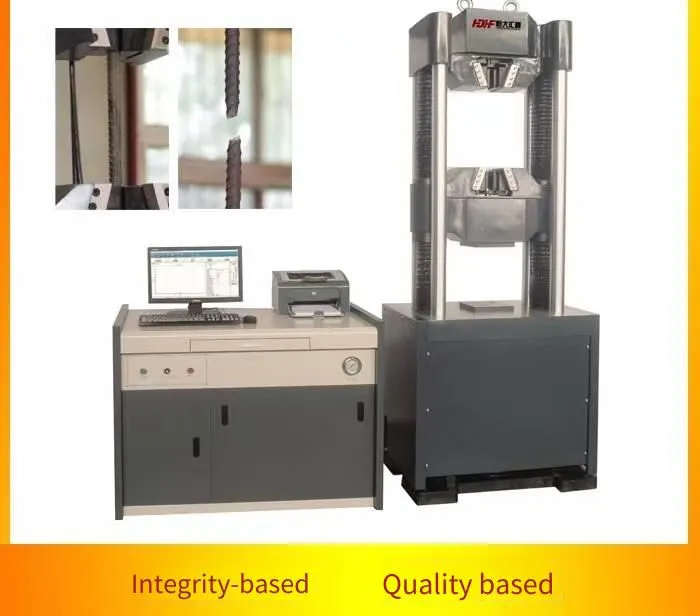

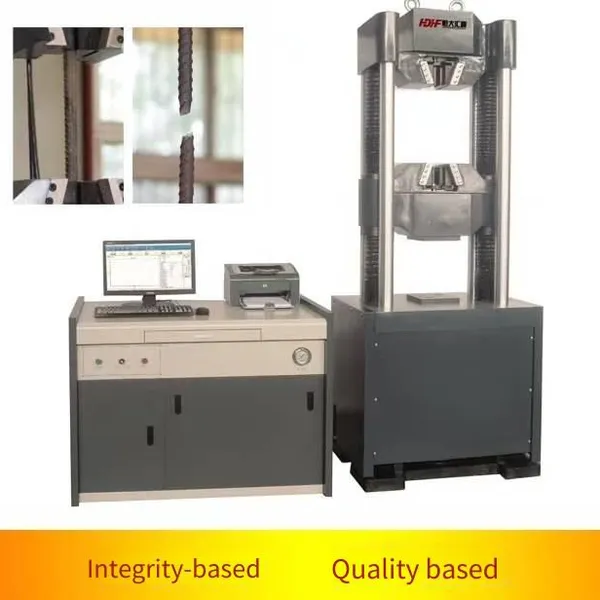

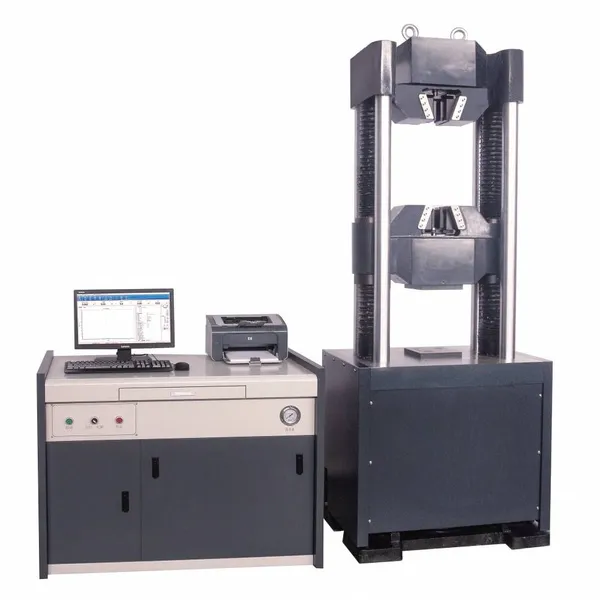

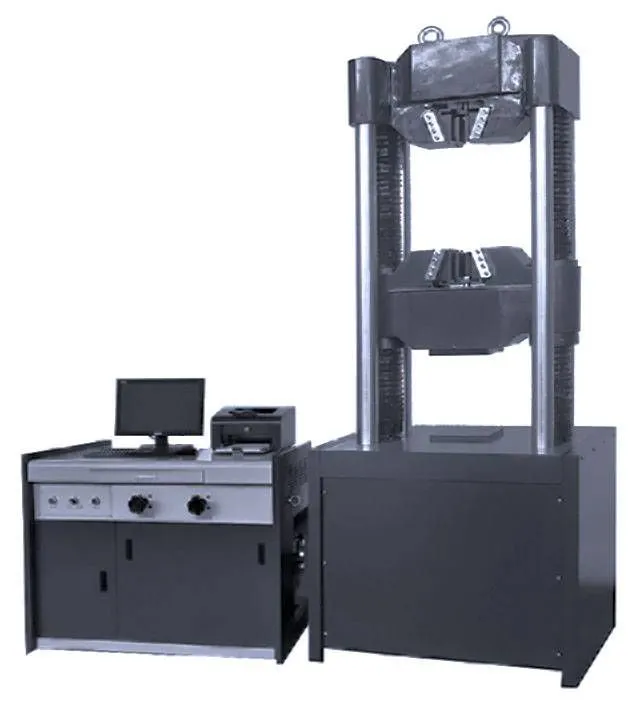

Help CenterModel an - Waw1000 Hydraulic Tensile Testing Machine Developed in Shanghai
Related Products
-
![[shanghai Manufacturer] Developed Digital Pressure Testing Machine, Automobile Roof Pressure Testing Instrument](https://res.goldsupplier.com/img/env2/common/load/circle-loading.svg)
[shanghai Manufacturer] Developed Digital Pressure Testing Machine, Automobile Roof Pressure Testing InstrumentUS$ 1.26MOQ: 1 Unit -
Nachi Gear Oil Pump, Nachi Variable Pump, Nachi High-pressure Oil Pump From JapanUS$ 1107.69 - 1153.85MOQ: 1 Unit
-
Shanghai Manufacturer-developed Durability Testing Machine for An-fm300 Floating Oil SealsNegotiableMOQ: 0 Unit
-
Shanghai Manufacturer Developed An-fg300 Floating Oil Seal Testing MachineUS$ 29230.77 - 29692.31MOQ: 1 Unit
-
Shanghai-developed Pendulum Impact Tester, Model an - 300jUS$ 10769.23 - 11076.92MOQ: 1 Unit
The hydraulic testing machine with microcomputer display is mainly used for mechanical property tests such as tension, compression, bending, and shear of metal and non-metal materials. This machine is equipped with a computer, a printer, an electronic extensometer, a photoelectric encoder, and general test software, which can accurately measure the mechanical properties of metal materials such as tensile strength, yield strength, specified non-proportional extension strength, elongation, and elastic modulus. The test results can be queried and printed (force - displacement, force - deformation, stress - displacement, stress - deformation, force - time, deformation - time) six kinds of curves and relevant test data. It has a software self - inspection function and can self - diagnose faults. For details, please refer to the software instructions. It is an ideal testing equipment for industrial and mining enterprises, scientific research institutions, colleges and universities, engineering quality supervision stations and other departments.
The hydraulic testing machine with microcomputer display Applicable standards:
GB/T 228.1 - 2021 "Metallic materials - Tensile testing - Part 1: Method of test at room temperature";
GB/T 2611 - 2007 "General technical requirements for testing machines";
JB/T 7406.1 - 1994 "Terms for testing machines - Material testing machines";
GB/T 16826 - 2008 "Electro - hydraulic servo hydraulic testing machines";
GB/T 22066 - 2008 "Evaluation of computer data acquisition systems for static uniaxial testing machines";
JJG 139 - 2014 "Tensile, compression and hydraulic material testing machines";
JB/T 6146 - 2007 "Technical specifications for extensometers";
GB/T 7314 - 2017 "Metallic materials - Compression test at room temperature";
GB/T 232 - 2010 "Metallic materials - Bend test";
ASTM A370 Standard Test Methods and Definitions for Mechanical Testing of Steel Products;
Technical parameters:
Test force (kN): 1000
Accuracy class: Class 1
Test force measurement range (kN): 2% - 100
Relative error of test force indication:
Relative error of deformation indication:
Deformation resolution (deformation amount): 1/500000
Tensile test space (mm): 550
Compression space (mm): 500
Piston stroke (mm): 200
Column spacing (mm): 470
Clamping range of round specimens (mm): Φ6 - Φ26
Clamping thickness of flat specimens (mm): 0 - 30
Clamping width of flat specimens (mm): 75
Size of pressure plate (mm): Φ160
Distance between two bending fulcrums (mm): 300
Bending support roller width (mm): 140
Clamping method: Hydraulic clamping
