Anping Xinye Metal Wire Mesh Products Co., Ltd., based in the industrial hub of Hengshui, Hebei, China, is proud to present our Heavy Duty Steel Grating Panels specifically engineered for wastewater treatment plants. With years of expertise in metal fabrication, we understand the demanding environments where corrosion resistance, structural integrity, and long service life are non-negotiable. Our 25x5mm bar grating panels are designed to withstand heavy loads, constant moisture, and chemical exposure, making them the ideal choice for walkways, trenches, platforms, and covers in water treatment facilities. Each panel comes with a 1-year warranty as a testament to our commitment to quality and reliability.

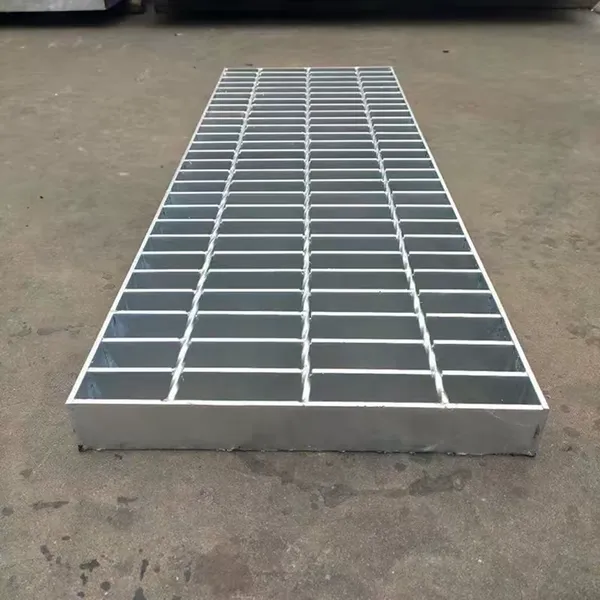

Our steel grating panels are manufactured using high-quality carbon steel bars, precisely welded to form a robust grid structure. The 25x5mm bearing bars provide excellent load-bearing capacity while maintaining a lightweight design for easy installation and handling. The surface treatment options include hot-dip galvanizing, which offers superior corrosion protection in wet and chemical-laden environments, ensuring the panels remain functional for years. Whether you need standard sizes or custom dimensions, our factory can accommodate your project requirements with fast turnaround times.
Key Features & Technical Specifications
- Robust Construction: Bearing bars of 25mm x 5mm (width x thickness) provide high strength-to-weight ratio.
- Welded Design: Each intersection is resistance-welded for maximum structural integrity and reduced maintenance.
- Corrosion Resistance: Optional hot-dip galvanized coating meets ASTM A123 standards (available upon request).
- Heavy Load Capacity: Suitable for pedestrian, light vehicle, and industrial equipment loads (custom load ratings available).
- Open Area: Typically 30-60% open area for efficient drainage, ventilation, and light transmission.
- Anti-Slip Surface: Serrated or plain bearing bars available for enhanced safety in wet conditions.
- Easy Installation: Panels can be cut, welded, or fixed with clips on-site; custom sizes reduce waste.
- Long Service Life: With proper surface treatment, panels can last 20-30 years in wastewater environments.
| Parameter | Specification |
|---|---|
| Material | Carbon steel (Q235, SS400, or equivalent) |
| Bearing Bar Size | 25mm (height) x 5mm (thickness) |
| Cross Bar Size | Typically 5mm or 6mm round or square bar |
| Spacing (Center-to-Center) | Bearing bars: 30mm, 40mm, or custom; Cross bars: 50mm, 100mm, or custom |
| Panel Dimensions | Length: up to 6m; Width: standard 1m, or custom |
| Surface Treatment | Hot-dip galvanized, epoxy painted, or plain (as per request) |
| Load Rating | Heavy duty (customizable based on span and bar size) |
| Warranty | 1 year against manufacturing defects |
Benefits for Wastewater Treatment Plants: Our steel grating panels offer superior drainage and ventilation, preventing the accumulation of water, sludge, or gases. The open grid design reduces the risk of slipping and allows easy cleaning and maintenance underneath. The heavy-duty construction can withstand the weight of equipment, personnel, and occasional vehicle traffic, providing a safe working environment. Additionally, the panels can be easily cut or modified on-site to fit around pipes, tanks, and other structures, saving time and labor costs.
Why Choose Anping Xinye?
Located in the famous wire mesh city of Hengshui, Hebei, our factory is equipped with advanced welding machines, galvanizing lines, and quality control equipment. We have been serving global clients in the water treatment, mining, petrochemical, and construction industries for over a decade. Every panel undergoes strict inspection for dimensional accuracy, weld strength, and coating thickness. Our team can provide technical support, load calculations, and custom fabrication to meet your specific project needs. With a 1-year warranty and competitive pricing, we are your reliable partner for industrial grating solutions.
Trust & Credibility: We have exported to more than 20 countries and maintain long-term relationships with EPC contractors and wastewater treatment plant operators. Our quality management system ensures consistent production, and we offer samples before mass production upon request. Contact us today for a quote or to discuss your requirements – we are committed to delivering durable, high-performance steel grating panels that exceed your expectations.
Frequently Asked Questions (FAQ)
-
Q: What is the typical lifespan of these grating panels in a wastewater treatment environment?
A: With proper hot-dip galvanized coating, the panels can last 20-30 years under normal exposure to moisture and chemicals. Regular maintenance can extend service life further. -
Q: Can I get custom sizes that are not listed in the standard table?
A: Absolutely. We can fabricate panels to your exact dimensions (length, width, bar spacing, etc.) for a seamless fit. Please provide your drawings or requirements. -
Q: Are these panels suitable for heavy vehicle traffic?
A: The 25x5mm bars are designed for heavy-duty industrial use. For specific load ratings (e.g., forklift or truck traffic), we recommend consulting our engineering team to confirm the span and bar configuration. -
Q: What surface treatment options are available besides galvanizing?
A: We offer hot-dip galvanizing, epoxy or polyurethane painting, and plain steel (for indoor use). Each option has different corrosion resistance properties. Let us know your environment. -
Q: Do you provide installation accessories like clips, brackets, or binding bars?
A: Yes, we can supply matching fasteners, hold-down clips, and edge trim as needed. Please inquire when ordering. -
Q: What is the minimum order quantity (MOQ)?
A: Our MOQ is flexible. For standard sizes, we accept small orders (e.g., 10 sqm) for sample testing. For custom sizes, MOQ may be higher depending on material usage. -
Q: How long does delivery take?
A: For standard sizes, delivery is usually 15-20 working days after order confirmation. Custom orders may take 20-30 days, depending on complexity and quantity. -
Q: Is the 1-year warranty applicable to all panels?
A: Yes, every panel we ship comes with a 1-year warranty against manufacturing defects in material and workmanship. Damage from improper use, corrosion due to aggressive chemicals, or modifications by the buyer are not covered.
