As a leading manufacturer based in Hengshui, Hebei, China, Anping Xinye Metal Wire Mesh Products Co., Ltd specializes in producing high-quality filtration solutions. Our 316L Stainless Steel Filter Screen with a 50 micron filtration rating and welded construction is designed to deliver reliable performance across various industries. Built to meet standard compliance requirements, this filter screen offers exceptional durability and precision for demanding filtration applications.
This product is engineered to provide consistent and efficient filtration, removing particles as small as 50 microns while maintaining high flow rates. The 316L stainless steel material ensures excellent corrosion resistance, making it suitable for use in harsh environments, including chemical processing, food and beverage, pharmaceutical, and water treatment industries.
Key Features and Benefits
- Material Excellence: 316L stainless steel offers superior resistance to pitting, crevice corrosion, and stress corrosion cracking, extending the service life of the filter screen.
- Precision Filtration: The 50 micron rating effectively captures fine particles while allowing efficient fluid flow, reducing pressure drop and maintenance frequency.
- Welded Construction: Each intersection is securely welded, ensuring uniform aperture size and structural integrity even under high pressure or temperature variations.
- Standard Compliance: Manufactured in accordance with industry standards, this product can be customized to meet specific customer requirements or regulatory frameworks.
- Versatile Applications: Suitable for liquid filtration (e.g., oil, water, chemicals), gas filtration, and as a support layer for finer media.
- Easy Maintenance: The non-clogging design and smooth surface allow for quick cleaning and reuse, reducing operational costs.
Technical Specifications
| Material | 316L Stainless Steel |
| Filtration Rating | 50 Micron |
| Construction | Welded (resistance welded) |
| Standard Compliance | Industry standard compliant (details available upon request) |

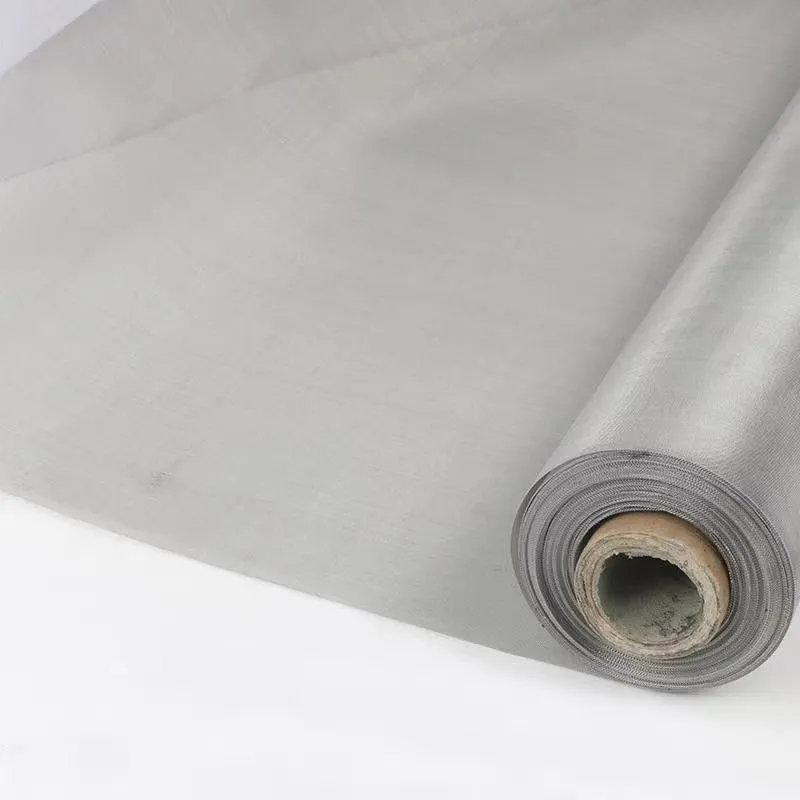

| Available Forms | Sheets, rolls, custom-cut pieces |
| Wire Diameter | Customizable per application |
| Operating Temperature | Up to 400°C (depending on environment) |
Detailed Product Description
The 316L Stainless Steel Filter Screen is manufactured using high-quality raw materials sourced from reputable suppliers. The welding process ensures that each mesh opening is accurately sized, providing consistent filtration performance. Unlike woven wire mesh, welded construction offers greater rigidity and prevents mesh distortion under mechanical stress. This makes our filter screen ideal for applications where dimensional stability is critical, such as in filter presses, strainers, and industrial sieves.
The 50 micron rating corresponds to a mesh opening size that effectively separates particles larger than 0.05 mm. This level of filtration is suitable for removing fine contaminants from liquids like hydraulic oils, coolants, and process water, as well as from gases in pneumatic systems. The 316L grade provides excellent resistance to chlorides and acidic environments, making it a preferred choice for marine and chemical processing applications.
Our welded construction process involves resistance welding each intersection, creating a strong bond that prevents the wires from shifting. This results in a filter screen with uniform aperture size and high tensile strength. The product can be fabricated into various shapes, including discs, cylinders, and custom panels, to fit existing equipment.
We also offer customization options such as edge treatments (welded edges, folded edges, or reinforced borders) and additional surface finishing (electropolishing or passivation) to enhance corrosion resistance and cleanability. These options allow the filter screen to meet specific operational requirements.
Frequently Asked Questions (FAQ)
Q1: What is the difference between 316L and 304 stainless steel filter screens?
A: 316L stainless steel contains molybdenum, which provides enhanced corrosion resistance against chlorides and acids. It is better suited for marine, chemical, and high-temperature applications compared to 304.
Q2: Can this filter screen be used for high-pressure applications?
A: Yes, the welded construction offers structural strength, making it suitable for high-pressure environments. However, the exact pressure rating depends on the wire diameter and support structure. Please consult our technical team for specific requirements.
Q3: Is the 50 micron rating absolute or nominal?
A: Our filter screen provides a nominal filtration rating based on the mesh opening size. For absolute filtration claims, we recommend testing under your specific conditions. We can also supply test certificates upon request.
Q4: How do I clean and maintain the filter screen?
A: The screen can be cleaned by backwashing, ultrasonic cleaning, or chemical cleaning with mild detergents. Avoid using abrasive tools that may damage the surface. The 316L material is easy to clean and resistant to fouling.
Q5: What standard does this product comply with?
A: Our product is manufactured in accordance with general industry standards for welded wire mesh and filter screens. Specific standards such as ASTM, DIN, or ISO can be met upon request. Please contact us for detailed compliance documentation.
Q6: Can you provide custom sizes and shapes?
A: Absolutely. We offer custom fabrication to match your equipment dimensions, including round, square, rectangular, and custom profiles. Minimum order quantities may apply.
Q7: What is the typical lead time for this product?
A: For standard sizes, lead time is 7-15 working days. Custom orders may require 15-25 working days depending on complexity. We work to meet your schedule.
Q8: Does the product come with a warranty?
A: Yes, we offer a warranty against manufacturing defects. The specific warranty period can be discussed during order confirmation. We stand behind the quality of our products.

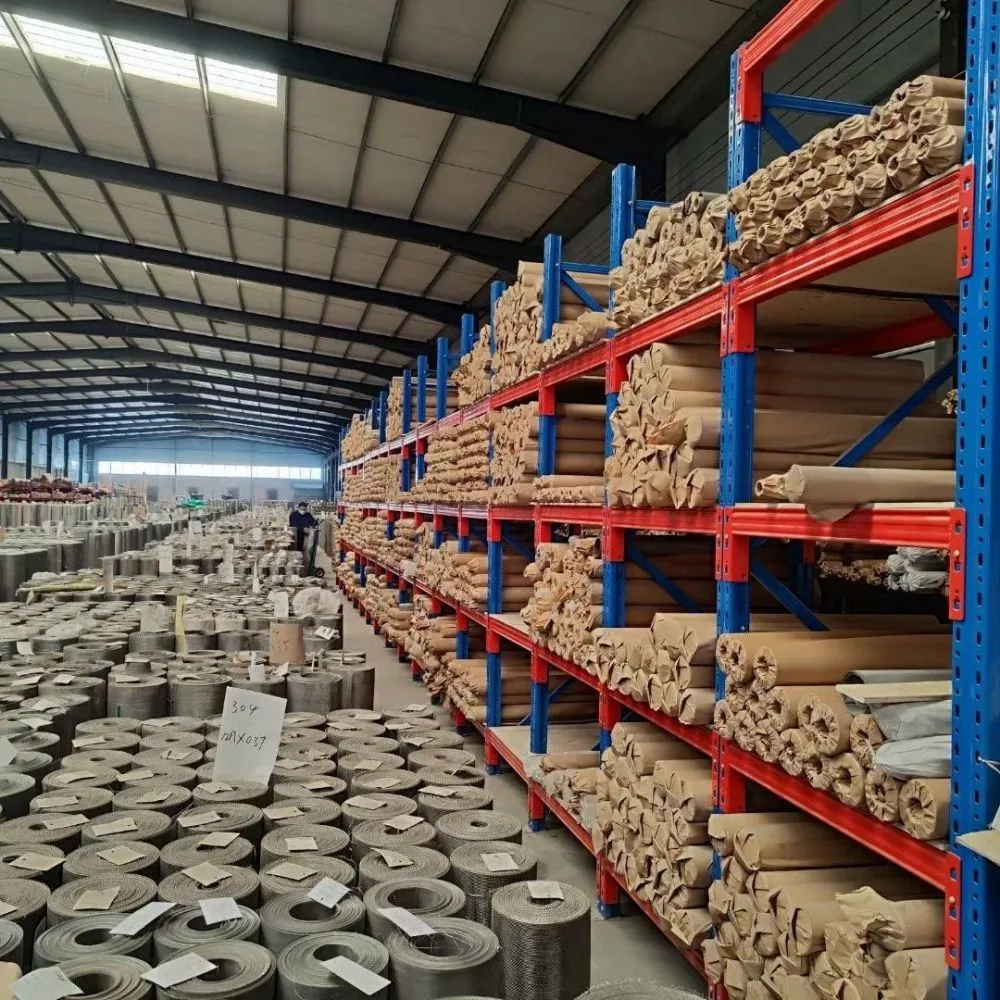

At Anping Xinye Metal Wire Mesh Products Co., Ltd, we have years of experience in producing high-quality filter screens for global customers. Our dedicated team ensures strict quality control from raw material selection to final inspection. With a strong reputation in the industry, we are committed to delivering products that meet your performance expectations. Contact us today to discuss your filtration needs or request a sample. We are ready to support your projects with reliable solutions.
