Welcome to Anping Xinye Metal Wire Mesh Products Co., Ltd. – a trusted ISO 9001 compliant factory located in the heart of China's wire mesh industry, Hengshui, Hebei. Our 304 Stainless Steel Woven Filter Screen with 200 mesh and 0.05mm wire diameter is engineered for precision filtration, combining durability, corrosion resistance, and consistent performance. This product is specifically designed to meet the demanding requirements of industrial filtration, particle separation, and liquid/solid processing. Backed by our years of manufacturing expertise, each roll or cut piece undergoes strict quality control to ensure dimensional accuracy and uniform mesh opening.
Our 200 mesh stainless steel woven filter screen is manufactured using high-quality 304 stainless steel wires, which are woven meticulously to achieve a precise mesh count and uniform aperture. The 0.05mm wire diameter provides a balance between strength and filtration efficiency, allowing the screen to capture fine particles while maintaining structural integrity. Whether you need a durable filter for chemical processing, food and beverage filtration, or environmental protection, this product offers reliable performance in various operating conditions.
Key Features & Technical Specifications
- Material: Premium grade 304 stainless steel – excellent corrosion resistance, high temperature tolerance, and long service life.
- Mesh Count: 200 openings per inch (200 mesh) – suitable for filtering particles down to approximately 74 microns.
- Wire Diameter: 0.05 mm (0.002 inch) – fine yet strong, reduces clogging and ensures smooth flow.
- Weave Type: Plain weave or twill weave available – plain weave provides uniform mesh openings; twill weave offers higher strength for heavy-duty filtration.
- Open Area: Approximately 30–35% – optimized for efficient filtration with minimal pressure drop.

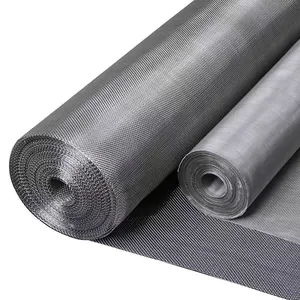

- Roll Size: Standard width 1m, 1.2m, 1.5m; length up to 30m per roll. Custom sizes available upon request.
- Surface Finish: Clean, deburred edges; can be supplied with additional edge treatments (e.g., welded, hemmed) for framed filters.
| Parameter | Value |
|---|---|
| Material Grade | 304 Stainless Steel (1.4301) |
| Mesh Count | 200 mesh (200 openings per linear inch) |
| Wire Diameter | 0.05 mm (±0.005 mm tolerance) |
| Aperture Size | Approx. 0.077 mm (77 microns) |
| Open Area | ~33% |
| Weave Type | Plain weave (standard); twill weave optional |
| Roll Width | 1 m, 1.2 m, 1.5 m (custom width available) |
| Tensile Strength | ≥ 500 N/mm² |
Advantages & Customer Benefits
- High Filtration Precision: The 200 mesh and 0.05mm wire combine to capture fine particles, ensuring product purity and process efficiency.
- Corrosion Resistance: 304 stainless steel withstands acids, alkalis, and moisture, making it ideal for harsh environments.
- Easy to Clean & Reusable: The smooth weave reduces adhesion; screen can be cleaned backflushed or ultrasonically for extended service life.
- Thermal Stability: Suitable for continuous operation from -200°C to +800°C (depending on application).
- Customizable Options: We offer cut-to-size pieces, framed filter discs, welded screens, and edge reinforcements to match your equipment.
- Consistent Quality: Every batch is tested for mesh count, wire diameter, and tensile strength to ensure repeatable performance.
Our 304 stainless steel woven filter screen is widely used in industries such as petrochemical, pharmaceutical, food processing, water treatment, mining, and automotive. For example, in oil filtration, it separates solid contaminants from hydraulic fluids; in food production, it filters fruit juices, beer, and edible oils; in chemical processing, it acts as a catalyst support or particle retention screen. The versatility of this product makes it a cost-effective solution for both coarse and fine filtration tasks.
Trust & Reliability – Why Choose Anping Xinye?
Anping Xinye Metal Wire Mesh Products Co., Ltd. is a professional manufacturer with over 15 years of experience in the wire mesh industry. Our factory in Hengshui, Hebei, operates under strict ISO 9001 quality management systems, ensuring every product meets international standards. We have supplied woven wire mesh to clients in Europe, North America, Southeast Asia, and the Middle East, earning a reputation for on-time delivery and consistent quality.
We use advanced weaving looms, precision tension control, and automated inspection equipment to maintain tolerances within ±0.005 mm for wire diameter and ±1% for mesh count. Our production capacity exceeds 500,000 square meters per year, and we maintain a large inventory of raw materials for quick turnaround. All screens are shipped with a material test certificate and can be packed in neutral or custom packaging per your request.
Take the next step toward reliable filtration. Contact us today for a quote, sample, or technical consultation. Our team is ready to assist you with custom sizes, special weave patterns, and bulk orders. Experience the Anping Xinye difference – quality that filters through.
Frequently Asked Questions (FAQ)
-
What is the exact micron rating of 200 mesh 0.05mm wire screen?
The nominal aperture size is approximately 77 microns (0.077 mm). The exact opening depends on the weave type; plain weave provides about 74–80 microns. This screen is suitable for filtering particles larger than 75 microns. -
Can this screen be used for high-temperature applications?
Yes, 304 stainless steel can withstand temperatures up to 800°C in oxidizing environments. However, prolonged exposure above 400°C may cause slight scaling. For continuous high-temperature use, we recommend 316L or 310S grades. -
Do you offer custom sizes or cut pieces?
Absolutely. We can cut the screen to your exact dimensions, add welded edges, or produce framed filter discs. Minimum order quantity for custom pieces is low – please inquire. -
Is this product suitable for water filtration systems?
Yes, it is widely used in water treatment for sediment removal, well water filtration, and industrial process water. The 304 grade resists rust and corrosion in freshwater and mild chemicals. -
What is the typical lead time for bulk orders?
For standard rolls (1m width, 30m length), we can ship within 7–10 working days. Custom sizes or special weaves may require 15–20 working days. We also offer express production for urgent orders. -
How do I clean the screen to maintain performance?
Backflushing with water or air, ultrasonic cleaning, or gentle brushing with a soft brush can remove trapped particles. Avoid using harsh acids or abrasive tools that may damage the mesh. -
Do you provide a material certification?
Yes, each shipment includes a mill test certificate confirming the material grade, wire diameter, mesh count, and tensile strength. ISO 9001 compliance documentation is also available upon request. -
Can I get a free sample before placing a large order?
We offer free samples (A4 size or 100x100mm) for evaluation. Shipping cost is at buyer's account. Please contact our sales team with your requirements.
Anping Xinye Metal Wire Mesh Products Co., Ltd. – Your reliable partner in precision filtration. Address: Hengshui, Hebei, China. ISO 9001 compliant factory delivering quality since 2005.
