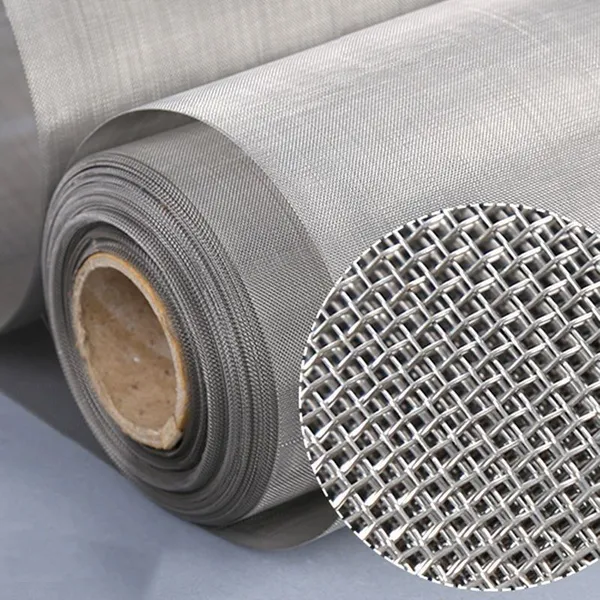

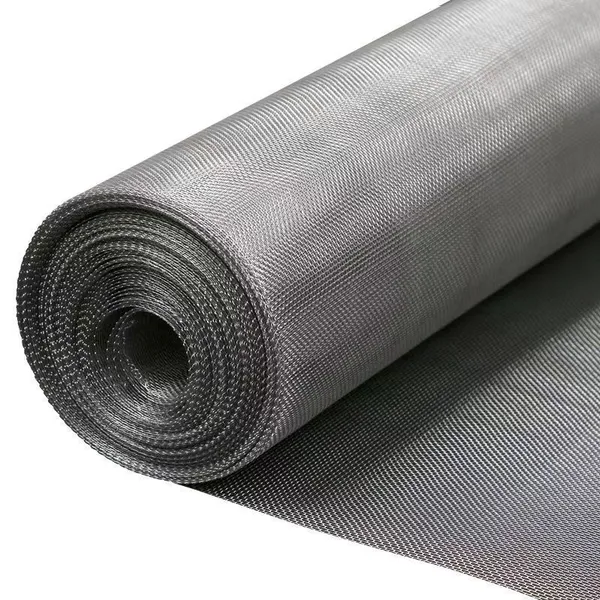

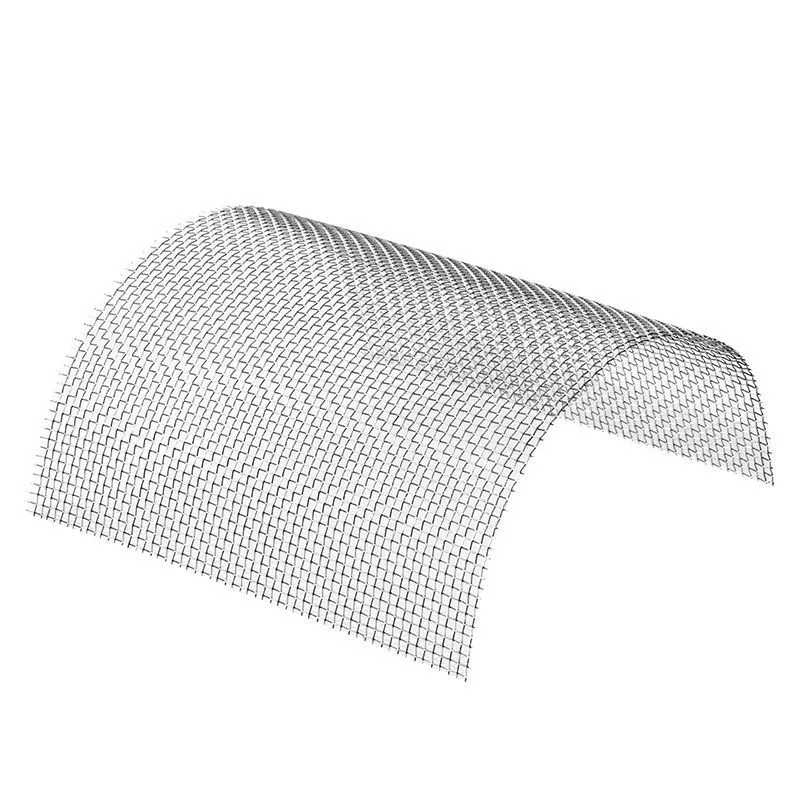

Founded in Anping, Hebei – the wire mesh capital of China – Anping Xinye Metal Wire Mesh Products Co., Ltd has been dedicated to manufacturing high-quality filtration solutions for over a decade. Our Stainless Steel Filter Screen for Oil & Gas Industry Solid Particle Separation is engineered to meet the rigorous demands of upstream, midstream, and downstream operations. Designed to efficiently remove sand, scale, and other solid contaminants from crude oil, natural gas, and process fluids, this filter screen ensures continuous operation, reduces downtime, and protects downstream equipment. With precision weaving, robust construction, and customizable specifications, it stands as a reliable component in harsh environments such as offshore platforms, refineries, and pipeline systems.
Our stainless steel filter screens are manufactured using high-grade 304 or 316L stainless steel wire – materials known for their excellent corrosion resistance, high tensile strength, and ability to withstand extreme temperatures and pressures. The screens are available in various weave patterns, including plain weave, twill weave, and Dutch weave, to achieve precise filtration ratings from 5 to 200 microns. Whether you need a cylindrical filter element for a inline filter housing or a flat panel for a strainer basket, we offer tailored solutions to match your specific requirements.
Key Features & Technical Specifications
- Material: SS304, SS316, SS316L – optional surface treatments (pickling, passivation) for enhanced anti-corrosion performance.
- Weave Patterns: Plain weave for standard filtration, twill weave for higher strength, Dutch weave for precise particle retention.
- Filtration Accuracy: 5–200 microns (customizable down to 2 microns upon request).
- Shape & Size: Cylindrical (single or multi-layer), flat panels, discs, cones, or custom designs – diameter up to 600mm, length up to 2000mm.
- Connection Options: Flanged, threaded, or welded ends; compatible with standard pipe sizes (NPT, BSP, ANSI flanges).
- Operating Temperature: Up to 600°C (for 316L grade) in non-oxidizing environments.
- Pressure Rating: Suitable for low to high pressure systems (up to 300 bar, depending on design and support structure).
- Reusable & Cleanable: Backwashable design reduces replacement cost; can be cleaned by ultrasonic, chemical, or high-pressure water methods.
| Parameter | Specification |
|---|---|
| Mesh Count (per inch) | 20 – 500 |
| Wire Diameter | 0.025mm – 1.0mm |
| Open Area | 30% – 65% (depending on mesh) |
| Seam Type | Welded (TIG/MIG), seamless optional |
| Support Structure | Perforated metal core, wire mesh backing, or full metal jacket |
| Packaging | Individually wrapped, in wooden cases, or as per customer requirement |
Why choose our stainless steel filter screen for oil & gas solid particle separation? The screen's precise weave stops particles from passing through while allowing high flow rates, minimizing pressure drop. Our manufacturing process includes strict quality control – from raw material inspection to final mesh count verification – ensuring consistent filtration performance. Additionally, the screen's robust construction withstands repeated cleaning cycles, making it a cost-effective solution over the long term.
Trusted by the Oil & Gas Industry
Anping Xinye Metal Wire Mesh Products Co., Ltd has supplied filtration components to oil & gas companies worldwide. With over 15 years of experience in wire mesh manufacturing, we have a dedicated R&D team and a production facility equipped with advanced weaving machines and welding robots. Our products are used in wellhead desanders, pipeline strainers, separator vessels, and refinery filters. We have shipped more than 500,000 units to over 30 countries, including the Middle East, Southeast Asia, and North America. Our team provides technical support from design to installation, and we offer fast prototyping and bulk production with lead times as short as 10 days for standard items. Contact us today for a quote or sample testing – we are committed to delivering the filtration quality your operation demands.
Frequently Asked Questions
-
Q: What is the typical lifespan of your stainless steel filter screen in oil & gas applications?
A: The lifespan depends on operating conditions (temperature, pressure, fluid corrosiveness, and particle load). With proper cleaning and maintenance, our screens can last 1–3 years or more. For high-abrasion environments, we recommend a thicker wire or a protective coating. -
Q: Can you produce custom sizes and shapes for my filter vessel?
A: Yes, we offer full customization. Please provide a drawing or detailed dimensions (diameter, length, connection type, mesh requirement). We can manufacture cylindrical, conical, flat, or pleated designs to fit your housing. -
Q: What is the filtration accuracy range?
A: Our standard range is 5 to 200 microns. For finer filtration (down to 2 microns), we can use Dutch weave or multi-layer sintered mesh. Contact us for specific particle size requirements. -
Q: How do I clean the filter screen?
A: You can clean it by backwashing, ultrasonic cleaning, or high-pressure water jet. The screen is reusable – avoid using harsh chemicals that may damage the stainless steel. We provide cleaning guidelines with each order. -
Q: Do you offer samples for testing?
A: Yes, we provide samples (usually 1–3 pieces) for qualification. Sample cost is negotiable, and shipping is at buyer's expense. Once the order is confirmed, we may refund the sample fee. -
Q: What certifications do your products have?
A: Our products are manufactured in accordance with industry standards. We can provide a material test certificate (MTC) upon request. If you require specific third-party inspection (e.g., SGS, BV), we can arrange it at an additional cost. -
Q: What is the minimum order quantity (MOQ)?
A: For standard sizes, MOQ is 10 pieces. For custom sizes, MOQ is 50 pieces. However, for trial orders, we can be flexible – please contact us for details. -
Q: How do you package the filter screens for export?
A: Each screen is individually wrapped in bubble film, then packed in a strong wooden crate or carton box with foam inserts to prevent damage during transit. We also offer custom packaging as per your requirements.
Request a quote or technical datasheet today – experience the reliability of Anping Xinye's stainless steel filter screens.
