Custom Steel Grating Panels With 2 Year Warranty, Technical Support, Anti-Corrosion Galvanized Surface
Product Spotlights
Custom steel grating panels with hot-dip galvanized anti-corrosion surface, 2-year warranty, and free technical support. Engineered for heavy-duty industrial flooring, walkways, and drainage covers. Customizable dimensions, bar spacing, and load capacity. Low maintenance, slip-resistant, and easy to install. Backed by Anping Xinye's 20+ years of manufacturing expertise.
Negotiable
MOQ: 50 Cubic Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Warranty:
2 Years
Material:
Carbon Steel / Stainless Steel (optional)
Surface Treatment:
Hot-Dip Galvanized / Electro-Galvanized
Payment & Shipping
Payment Methods:
Port of Shipment:
china
Delivery Detail:
7 days
Related Products
-
Stainless Steel Filter Screen, 100 Micron, 500mm Length, 0.8mm Thickness, for Industrial FiltrationNegotiableMOQ: 500 Acres -
304 Stainless Steel Filter Screen, 100 Mesh, 0.1mm Wire Diameter, 200mm Diameter for Precision FiltrationNegotiableMOQ: 500 Acres
-
316L Stainless Steel Filter Screen, 50 Micron Filtration Rating, Welded Construction, Standard CompliantNegotiableMOQ: 500 Acres
-
Stainless Steel Filter Screen, 200 Mesh, 304 Material, Mill Test Report Included, Guaranteed QualityNegotiableMOQ: 500 Acres
-
Stainless Steel Filter Screen for Water Treatment, 100 Micron, 304 SS, Corrosion ResistantNegotiableMOQ: 500 Acres
Warranty
2 Years
Material
Carbon Steel / Stainless Steel (optional)
Surface Treatment
Hot-Dip Galvanized / Electro-Galvanized
Panel Thickness
25mm–100mm (customizable)
Load Capacity
Light / Medium / Heavy Duty (customizable)
Bar Spacing
30mm–100mm (customizable)
Application
Industrial Flooring, Walkways, Drainage Covers
Color
Silver / Gray (galvanized finish)
At Anping Xinye Metal Wire Mesh Products Co., Ltd, located in the heart of China's wire mesh industry in Hengshui, Hebei, we specialize in manufacturing high-quality custom steel grating panels. Our Custom Steel Grating Panels with 2-Year Warranty, Technical Support, and Anti-Corrosion Galvanized Surface are designed to meet the rigorous demands of industrial flooring, walkways, drainage covers, and platform structures. With a proven track record of reliability and durability, our panels offer a cost-effective solution for heavy-load applications while ensuring long-term corrosion resistance through advanced galvanizing processes.
Each panel is engineered to customer specifications, allowing flexibility in dimensions, load capacity, bar spacing, and edge banding. Whether you need light-duty panels for pedestrian walkways or heavy-duty grating for vehicle traffic, our team provides dedicated technical support to help you select the right configuration. The 2-year warranty reflects our confidence in the product's performance under normal operating conditions.
Key Features & Technical Specifications
- Material: High-strength carbon steel (Q235, Q345) or optional stainless steel (304/316) for extreme environments.
- Surface Treatment: Hot-dip galvanized (HDG) per ASTM A123, providing superior anti-corrosion protection for outdoor and harsh industrial settings.

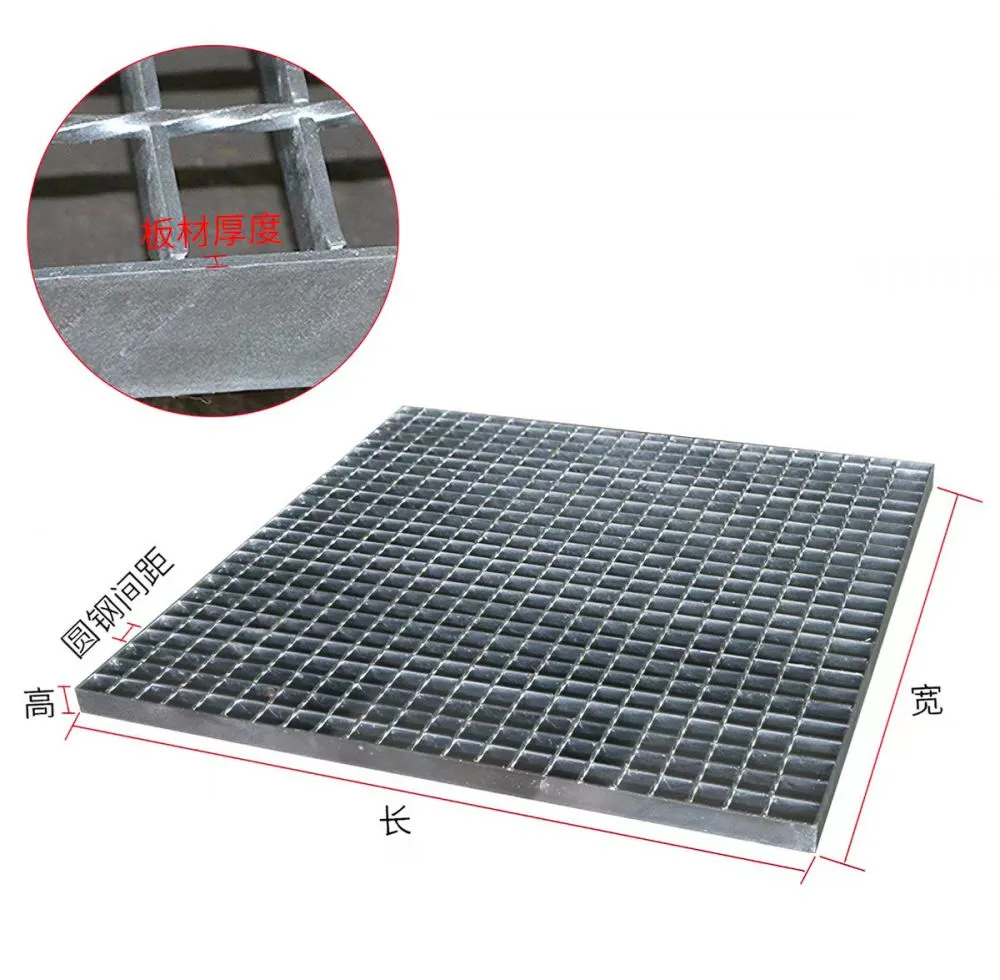

- Customizable Dimensions: Panel length up to 6 meters, width up to 1.5 meters, thickness from 25mm to 100mm.
- Bar Spacing: Available in 30mm, 40mm, 50mm, 60mm, 80mm, 100mm, or custom spacing to suit specific load and safety requirements.
- Load Capacity: Designed to meet uniform load ratings from 2 kN/m² to 10 kN/m² (light, medium, heavy duty).
- Edge Banding: Options include flat bar, angle bar, or channel edge banding for enhanced structural integrity.
- Surface Pattern: Flat top, serrated top, or I-bar grating for improved slip resistance.
- Warranty: 2-year comprehensive warranty against manufacturing defects.
| Parameter | Standard Range | Custom Options |
|---|---|---|
| Panel Thickness | 25mm, 30mm, 38mm, 50mm, 75mm, 100mm | Available upon request |
| Bar Spacing | 30mm, 40mm, 50mm, 60mm, 80mm, 100mm | Customizable (±2mm tolerance) |
| Bearing Bar Size | 25×3mm, 32×5mm, 40×5mm, 50×5mm, 65×5mm | Custom sizes available |
| Surface Treatment | Hot-dip galvanized (Zn 85μm min) | Electro-galvanized, powder coating, or unpainted |
| Load Capacity | Light: 2-3 kN/m², Medium: 4-6 kN/m², Heavy: 7-10 kN/m² | Engineered per customer load requirements |
Advantages & Customer Benefits
- Long Service Life: The hot-dip galvanized coating provides excellent corrosion resistance, extending the panel's life by 20-30 years in normal environments.
- Easy Installation: Pre-fabricated panels with precise dimensions reduce on-site cutting and welding time. Standard panel sizes are ready for direct bolting or welding.
- Low Maintenance: Galvanized surface requires no painting or periodic coating, saving labor and material costs over the lifetime.
- Slip Resistance: Serrated top bars or cross bars ensure secure footing even in wet or oily conditions, meeting safety standards.
- High Strength-to-Weight Ratio: Open grid design allows light, air, and water to pass through while supporting heavy loads, ideal for platforms and trenches.
- Technical Support: Our engineering team provides free load calculations, layout drawings, and installation guidance to ensure optimal performance.

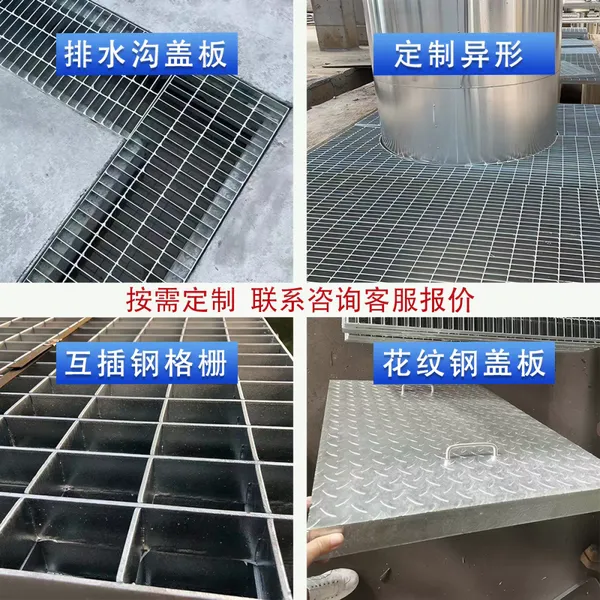

- Customization: From cut-outs for pipes to special shapes, we can manufacture non-standard panels to fit your exact project needs.
Frequently Asked Questions (FAQ)
-
Q: What is the standard lead time for custom steel grating panels?
A: For standard sizes (up to 4m length), lead time is 10-15 working days. For larger or complex custom panels, it may extend to 20-25 days. We will confirm the exact schedule upon order confirmation. -
Q: How do you ensure the anti-corrosion performance of the galvanized surface?
A: Our hot-dip galvanizing process follows ASTM A123 standards, with a minimum zinc coating thickness of 85 microns. We also perform adhesion and uniformity tests to guarantee long-term protection. -
Q: Can you provide cut-outs or special shapes for my project?
A: Yes, we offer custom cut-outs for pipes, conduits, or irregular shapes. Please provide a detailed drawing or CAD file, and our team will manufacture accordingly. -
Q: What is the load capacity of a typical 30mm thick grating panel?
A: A 30mm thick panel with 30×3mm bearing bars and 40mm spacing can support a uniform load of approximately 3-4 kN/m². Actual capacity depends on span, bar size, and spacing. We can provide a load table for your specific configuration. -
Q: Do you offer samples before bulk order?
A: Yes, we can provide small samples (e.g., 300×300mm) for quality evaluation. Sample cost is refundable upon bulk order placement. -
Q: Is the 2-year warranty transferable?
A: The warranty covers the original purchaser. It covers defects in material and workmanship under normal use. For transfer details, please contact our sales team. -
Q: How do I install the grating panels? Do you provide installation instructions?
A: We provide installation manuals and technical drawings. Common methods include welding, bolting with clamps, or using anchor channels. Our technical support team is available to assist you. -
Q: What is the maximum panel size you can produce?
A: Our standard maximum panel size is 6m (length) × 1.5m (width). Larger panels up to 12m are possible with special handling; please inquire for details.
Why Choose Anping Xinye? As a dedicated manufacturer based in Hengshui, Hebei, we have been serving the global metal wire mesh industry with over 20 years of experience. Our factory is equipped with advanced welding and galvanizing lines, and we have a skilled team of 50+ technicians. We have successfully supplied steel grating panels for projects in over 30 countries, including oil refineries, power plants, food processing facilities, and commercial buildings. Our commitment to quality is backed by rigorous in-house testing and a 2-year warranty, giving you peace of mind. Combined with our responsive technical support, we ensure that your custom grating solution meets the highest standards of performance and durability. Contact us today for a quote or to discuss your project requirements.
