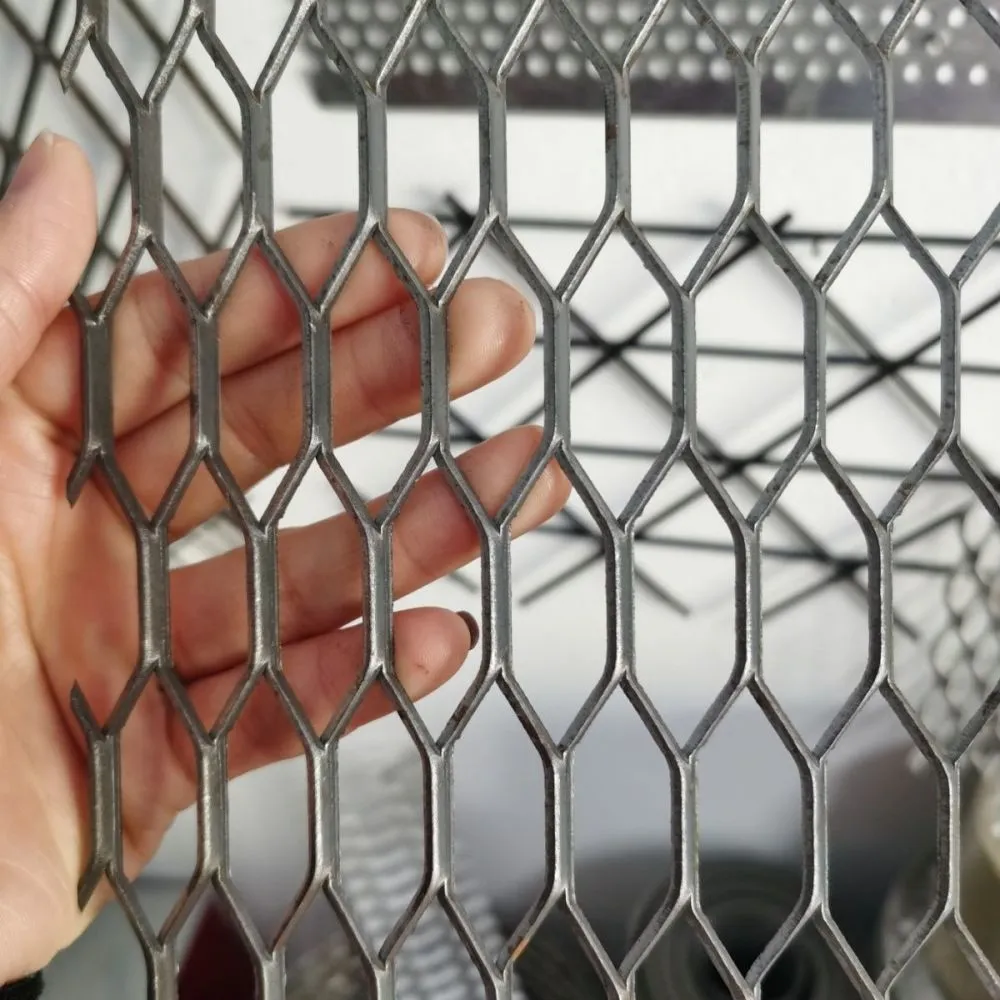

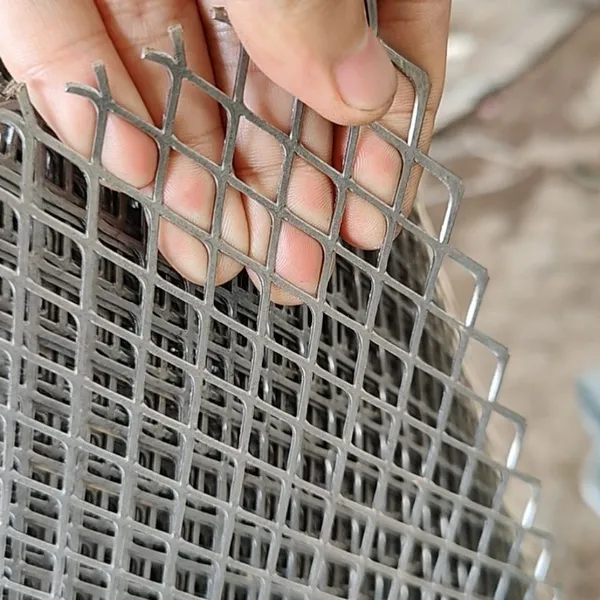

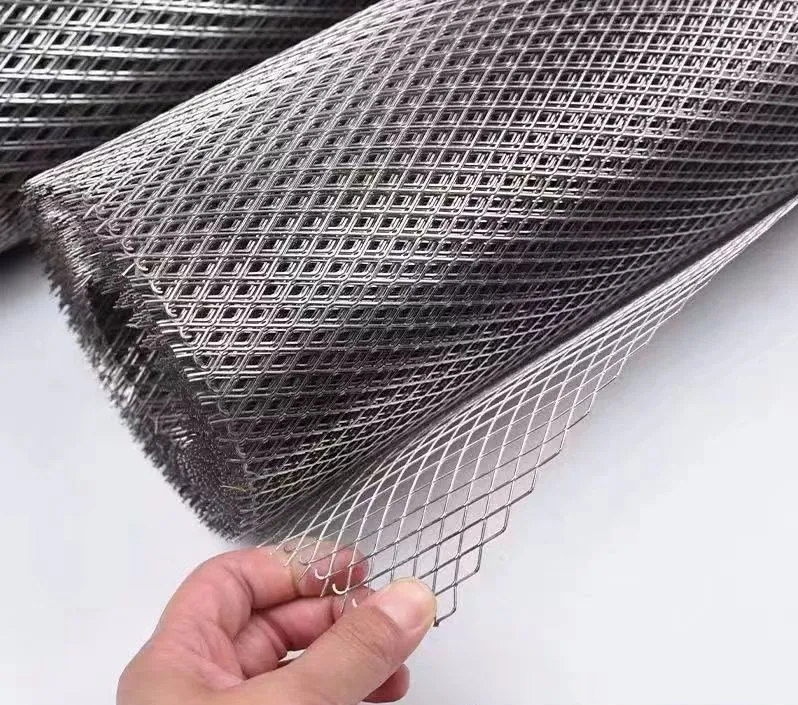

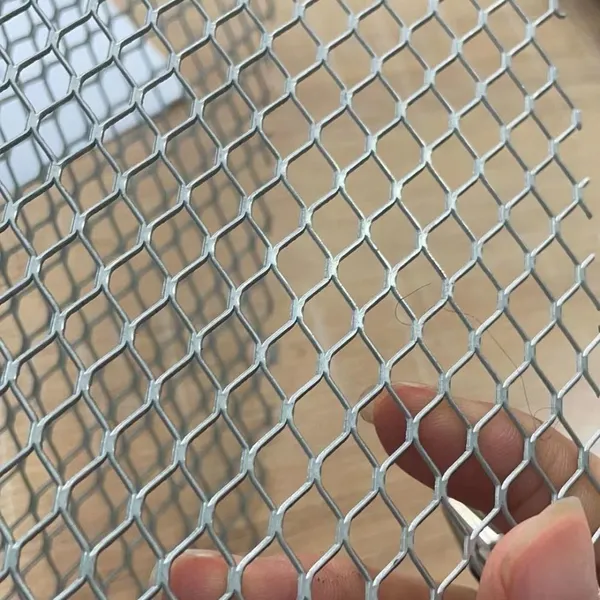

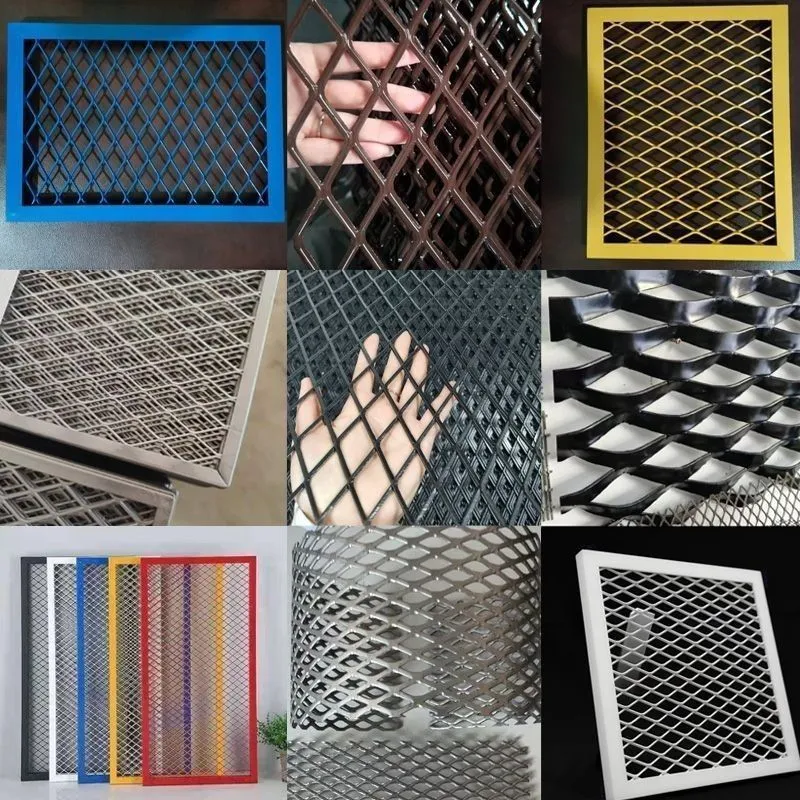

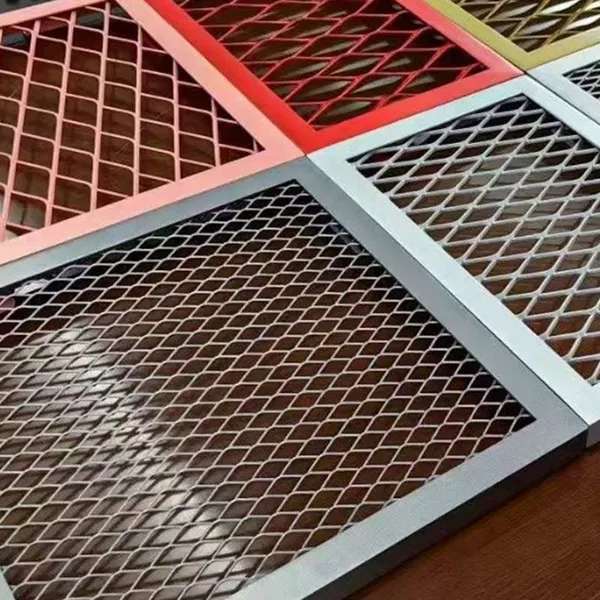

Our Expanded Metal Mesh for Industrial Machine Guarding, featuring a 1.5mm thickness and 8x16mm diamond openings, is a premium safety solution engineered by Anping Xinye Metal Wire Mesh Products Co., Ltd – a trusted manufacturer based in Hengshui, Hebei, China. With years of expertise in metal mesh fabrication, we deliver products that combine robust protection with excellent visibility and airflow, meeting the strict demands of modern industrial environments. This mesh is specifically designed as a safety barrier for machinery, ensuring operator protection without compromising productivity or workspace ventilation.
Our expanded metal mesh is manufactured using a precise die-stamping process that simultaneously cuts and stretches metal sheets, creating a uniform diamond pattern. This process eliminates the need for welding or weaving, resulting in a seamless, high-strength structure that resists deformation under impact. The 1.5mm material thickness provides a substantial balance between rigidity and weight, while the 8x16mm opening size prevents finger or tool entry (per OSHA and EN safety standards) while allowing light, air, and sound to pass through.
Key Features & Technical Specifications:
- Material Options: Low-carbon steel, stainless steel (304/316), or aluminum – all with customizable surface treatments such as hot-dip galvanizing, electro-galvanizing, or powder coating for enhanced corrosion resistance.

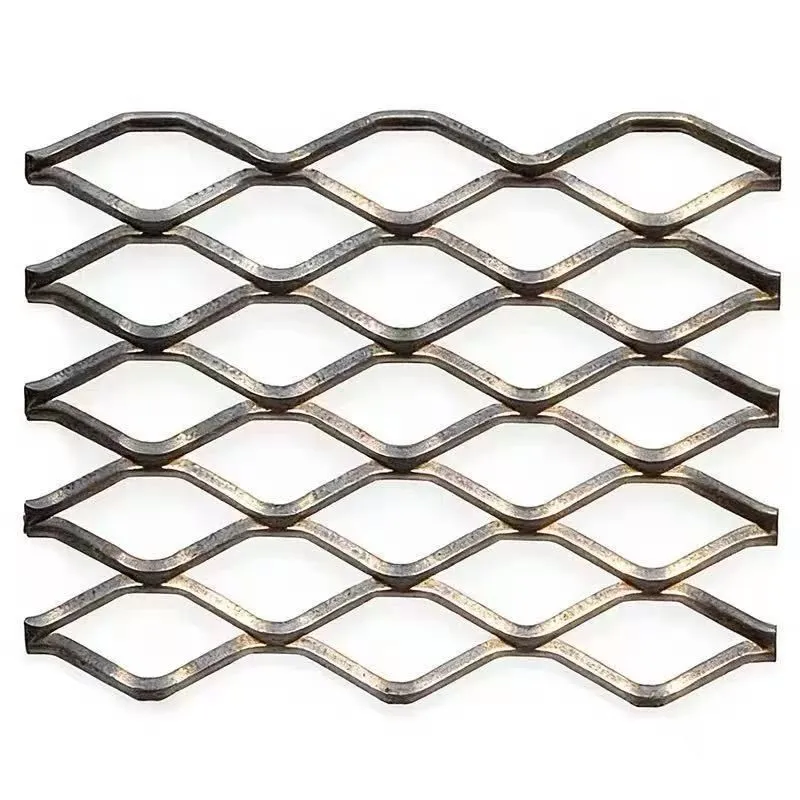

- Opening Geometry: Diamond-shaped openings with nominal dimensions of 8mm (short way) x 16mm (long way). The pattern ensures consistent strength in both directions.
- Thickness: 1.5mm base metal thickness (before expansion). The expanded strand width is approximately 2.0-2.5mm, providing excellent impact resistance.
- Sheet Size: Standard widths of 1m, 1.2m, or 1.5m and lengths of 2m, 2.5m, or 3m. Custom sizes are available upon request to fit your specific guarding enclosure.
- Open Area: Approximately 60-65% open area, which ensures adequate ventilation and visibility, reducing the need for additional lighting or fans.
- Weight: Approx. 4.5-5.5 kg per square meter depending on material and coating, making it easy to handle and install.
- Safety Compliance: Designed to meet common industrial guarding guidelines (e.g., OSHA 1910.212, EN 953). No sharp edges after deburring – a standard finishing step we offer.
| Parameter | Value |
|---|---|
| Base Metal Thickness | 1.5 mm |
| Opening Size (Short Way) | 8 mm |
| Opening Size (Long Way) | 16 mm |
| Strand Width | ~2.0-2.5 mm |
| Open Area | ~60-65% |
| Weight per m² (Steel) | ~5.0 kg |
Benefits for Your Facility:
- Enhanced Worker Safety: The 8x16mm opening prevents hands and tools from reaching dangerous moving parts, reducing the risk of injury. The mesh structure also acts as a containment barrier for flying debris.
- Improved Visibility and Ventilation: Unlike solid panels, our expanded mesh allows operators to monitor machine operation without opening guards, and maintains airflow to prevent overheating.
- Durability in Harsh Environments: Choose from galvanized or powder-coated finishes to resist rust, chemicals, and UV exposure. Stainless steel options are ideal for food processing or washdown areas.
- Easy Installation & Customization: Sheets can be cut, welded, or framed on-site using standard tools. We also offer pre-cut panels with drilled holes for mounting – just ask for your dimensions.
- Cost-Effective Solution: Compared to welded wire mesh or perforated panels, expanded metal offers a superior strength-to-weight ratio and lower material cost, making it an economical choice for large guarding projects.
At Anping Xinye Metal Wire Mesh Products Co., Ltd, we have been manufacturing high-quality metal meshes for over 15 years. Our facility in Hengshui, Hebei, is equipped with advanced expanding machines and quality control systems. We produce thousands of square meters of expanded metal each month, serving clients in automotive, packaging, food processing, and general manufacturing industries. Our team ensures consistent product quality, on-time delivery, and responsive customer service. We are proud to be a reliable partner for industrial safety solutions.
We understand that every guarding application is unique. That’s why we offer custom sizes, materials, and surface treatments to match your exact requirements. Our technical team can also provide cutting and bending services to create finished panels ready for assembly. With our competitive pricing and fast turnaround times, you can secure your machinery without delay.
Contact us today for a quote or sample. Let us help you create a safer workplace with our premium expanded metal mesh. Your satisfaction is our priority – Anping Xinye is your trusted manufacturer in China.
Frequently Asked Questions
Q1: What is the difference between expanded metal and welded wire mesh for machine guarding?
A: Expanded metal is made from a single sheet of metal, sheared and stretched, creating a seamless structure with no weak weld points. This makes it stronger and more impact-resistant than welded wire mesh, which can break at weld joints. Expanded metal also provides a smoother surface with fewer sharp edges.
Q2: Does the 8x16mm opening meet safety standards for finger protection?
A: Yes, the 8mm short-way opening is designed to prevent finger entry (typically requiring openings less than 12mm). It also restricts tool entry per OSHA and EN 953 guidelines. However, always verify local regulations for your specific application.
Q3: Can I get this mesh in stainless steel for a corrosive environment?
A: Absolutely. We offer 304 and 316 stainless steel options. These grades provide excellent resistance to moisture, chemicals, and high temperatures, making them suitable for food processing, marine, or chemical plants.
Q4: What surface treatments are available to prevent rust?

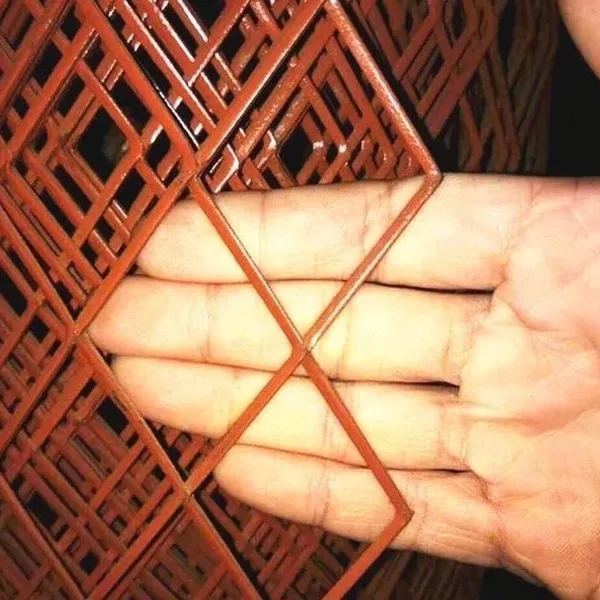

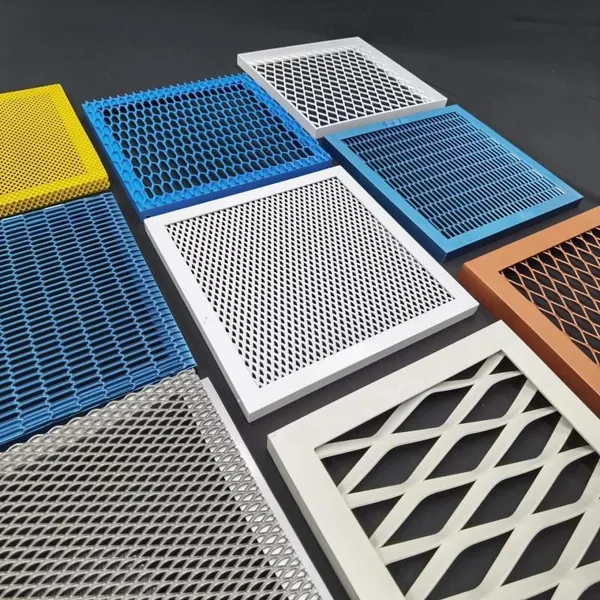

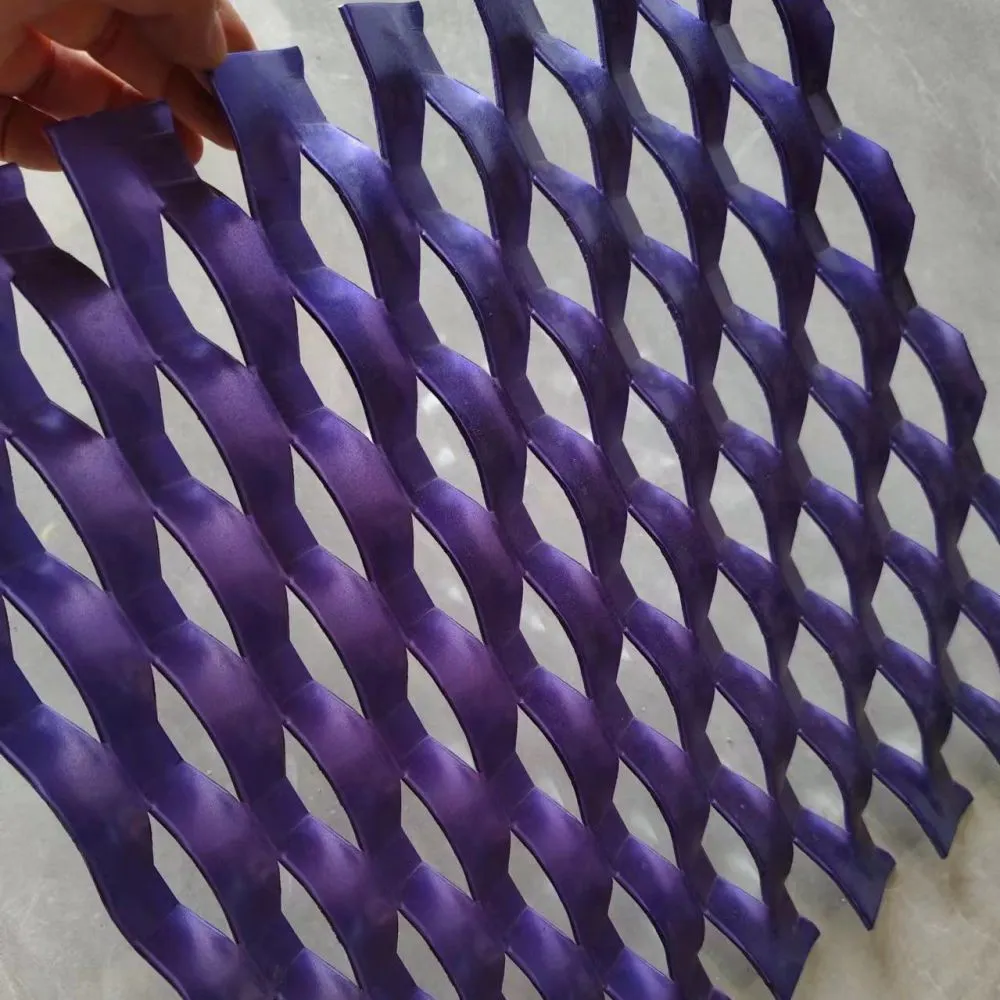

A: For steel meshes, we offer hot-dip galvanizing (HDG) for heavy-duty outdoor use, electro-galvanizing for indoor applications, and powder coating in various RAL colors. For aluminum, natural oxidation resistance is sufficient for most environments.
Q5: How do I cut and install the expanded metal sheets?
A: The sheets can be cut with a grinder, plasma cutter, or shears. For installation, we recommend using a frame or mounting brackets. We can also pre-cut your panels to size and add mounting holes (punching/drilling) on request.
Q6: What is the maximum sheet size you can produce?
A: Our standard maximum sheet size is 1.5m x 3m, but we can produce custom sizes up to 2m x 4m depending on material and thickness. Please contact us with your requirements.
Q7: Is this product suitable for animal enclosures or walkways?
A: While primarily designed for industrial machine guarding, the 1.5mm thick mesh with 8x16mm openings can also be used for small animal cages, security fencing, and walkway treads. However, for heavy pedestrian traffic, a thicker material may be recommended.
Q8: Do you offer samples before bulk order?
A: Yes, we provide free samples (A4 size) for clients to evaluate quality and suitability. You only need to pay for shipping. Contact our sales team to request a sample.
