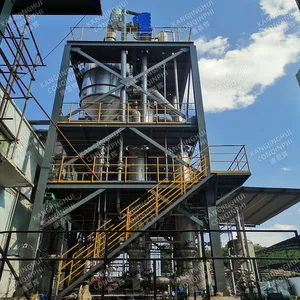

Help Center10 TPH Falling Film Evaporator for Industrial Evaporation 220V 3 Phase
Product Spotlights
Related Products
-
10 TPH Falling Film Evaporator 304 SS With MVR System 380V 50HzUS$ 21300 - 98000MOQ: 1 Combo -
10 TPH Falling Film Evaporator With 1 Year Warranty and Technical SupportUS$ 21300 - 98000MOQ: 1 Combo
-
Automatic 10 TPH Falling Film Evaporator 316L Stainless Steel ISO CompliantUS$ 21300 - 98000MOQ: 1 Combo
-
10 TPH Falling Film Evaporator for Food Industry Juice ConcentrationUS$ 21300 - 98000MOQ: 1 Combo
-
10 TPH Falling Film Evaporator for Dairy Processing 316L Stainless SteelUS$ 21300 - 98000MOQ: 1 Combo
Qingdao Conqinphi Environmental Technology Group Co., Ltd., established in 2015, is a professional manufacturer specializing in industrial evaporation equipment. With over 10,000 square meters of factory space and an annual export value exceeding US$10 million, we have delivered reliable solutions to clients across North America, Europe, Southeast Asia, and more. Our 10 TPH Falling Film Evaporator is designed for high-efficiency industrial evaporation, offering a compact footprint, low energy consumption, and robust performance for continuous operation. Powered by 220V three-phase electricity, this unit is ideal for concentrating liquids, recovering solvents, or treating wastewater in various industries.
The falling film evaporator operates on the principle of gravity-driven liquid film flow inside vertical tubes, ensuring rapid heat transfer and minimal fouling. This design significantly reduces residence time, preserving product quality for heat-sensitive materials. Whether you need to concentrate fruit juice, process brine, or handle chemical solutions, our evaporator delivers consistent results with easy maintenance.
Key Features & Technical Specifications
| Parameter | Specification |
| Evaporation Capacity | 10,000 L/h (10 TPH) |
| Power Supply | 220V, 3 Phase, 50/60Hz (customizable) |
| Heating Source | Steam (0.3–0.6 MPa) or Electric (optional) |
| Material of Construction | SS304 / SS316L (optional) |
| Operating Temperature | 40°C – 100°C (adjustable) |
| Vacuum Level | -0.08 to -0.095 MPa (optional) |
| Control System | PLC + Touch Screen (optional) |
| Dimensions (L×W×H) | Customizable based on design |
Detailed Advantages
- High Efficiency: Falling film design provides a large heat transfer area, achieving up to 95% thermal efficiency. The thin film reduces boiling point elevation, saving energy compared to traditional evaporators.
- Short Residence Time: Liquid passes through the tubes in seconds, ideal for heat-sensitive products like enzymes, dairy, and pharmaceuticals. Product quality and flavor are preserved.
- Low Fouling Tendency: The continuous liquid film prevents scale buildup on tube walls, reducing cleaning frequency and downtime. Maintenance costs are minimized.
- Flexible Operation: The system can be configured for single-effect or multi-effect evaporation, with or without thermal vapor recompression (TVR) / mechanical vapor recompression (MVR) to further cut energy consumption.
- Robust Construction: All wetted parts are made of high-grade stainless steel, resistant to corrosion and suitable for acidic or alkaline solutions. Optional lining materials are available upon request.
- Easy Integration: Compact skid-mounted design allows quick installation and connection to existing pipelines. The 220V three-phase power supply is common in industrial settings, eliminating the need for special electrical upgrades.
Customer Benefits
- Reduce Operating Costs: Lower energy consumption and less frequent cleaning translate to significant savings over the equipment's lifespan.
- Increase Production Capacity: With 10 TPH throughput, you can process large volumes continuously, meeting demanding industrial schedules.
- Improve Product Quality: Gentle evaporation at low temperatures prevents degradation, ensuring consistent output for your customers.
- Minimize Environmental Impact: Efficient evaporation reduces waste volume, and the system can be integrated with condensate recovery to recycle water or solvents.
Trust Building & Company Background
As a manufacturer with a 10,000+ m² factory and a team of 201–300 employees, Qingdao Conqinphi Environmental Technology Group Co., Ltd. has exported to over 20 countries including North America, Europe, and Southeast Asia. Our annual export value exceeds US$10 million, reflecting our commitment to quality and customer satisfaction.
We hold multiple management system certifications such as ISO9001, ISO14000, and OHSAS18001, ensuring that our design, production, and service processes meet international standards. Each evaporator undergoes rigorous testing before shipment, including pressure testing, performance verification, and electrical safety checks.
Our experienced engineers provide technical support from selection to installation. We offer customization options for materials, controls, and auxiliary equipment (e.g., condensers, preheaters, pumps). All products are shipped from Qingdao Port, with flexible delivery schedules.
Contact us today to discuss your specific evaporation requirements. We are confident that our 10 TPH Falling Film Evaporator will deliver reliable performance and long-term value for your industrial process.
Frequently Asked Questions
-
What is the typical power consumption of this evaporator?
Power consumption depends on the heating source. For steam-heated models, only pumps and control systems consume electricity (approx. 5–10 kW). For electric heating, power consumption is higher and can be customized based on your requirements. -
Can this evaporator handle viscous liquids?
Falling film evaporators are suitable for low to medium viscosity liquids (up to 200 cP). For high-viscosity products, we recommend forced circulation or other designs – please consult our engineers. -
What is the minimum operating temperature for heat-sensitive materials?
Under vacuum, the boiling point can be lowered to as low as 40°C, making it ideal for heat-sensitive products like fruit juices or herbal extracts. -
Is the 220V 3 Phase configuration available worldwide?
220V 3 Phase is common in many regions, but we can also customize the voltage and frequency (e.g., 380V, 415V, 460V, etc.) to match local standards. -
How long does the delivery take?
Standard delivery time is 30–45 working days after order confirmation, depending on customization complexity. We can provide expedited shipping upon request. -
What maintenance is required?
Regular inspection of seals, pumps, and control components is recommended. The falling film design minimizes fouling, so cleaning intervals are typically long (e.g., once every 1–3 months depending on the feed). -
Do you provide after-sales service?
Yes. We offer online technical support, on-site commissioning (if needed), and spare parts supply. Our team can assist with troubleshooting via video call or email. -
Can I get a custom design for my specific application?
Absolutely. We have experience customizing evaporators for food, chemical, pharmaceutical, and wastewater industries. Provide your feed composition, target concentration, and site conditions for a tailored solution.
