As a leading manufacturer with over 9 years of experience, Qingdao Conqinphi Environmental Technology Group Co., Ltd. proudly presents our 10 TPH Falling Film Evaporator — a high-efficiency evaporation solution designed for industries requiring reliable, continuous concentration or solvent recovery. Our factory, spanning 10,000–30,000 square meters, and a dedicated team of 201–300 employees, ensure every unit meets rigorous quality standards. With an annual export value exceeding US$10 million and shipments to global markets including North America, Europe, Southeast Asia, and Africa, this evaporator embodies our commitment to performance, durability, and customer satisfaction. Backed by a 1-year warranty and comprehensive technical support, it offers you peace of mind and maximum uptime.
The 10 TPH Falling Film Evaporator utilizes the principle of thin film evaporation: liquid feed is distributed evenly onto the inside walls of heated tubes, forming a thin falling film that evaporates rapidly under vacuum conditions. This design ensures high heat transfer coefficients, short residence time, and minimal thermal degradation of sensitive products. It is ideal for concentrating fruit juices, dairy products, pharmaceuticals, chemical solutions, and treating industrial wastewater.
Key Features & Technical Specifications
- High Capacity: Evaporation rate of 10 tons per hour, suitable for large-scale production.

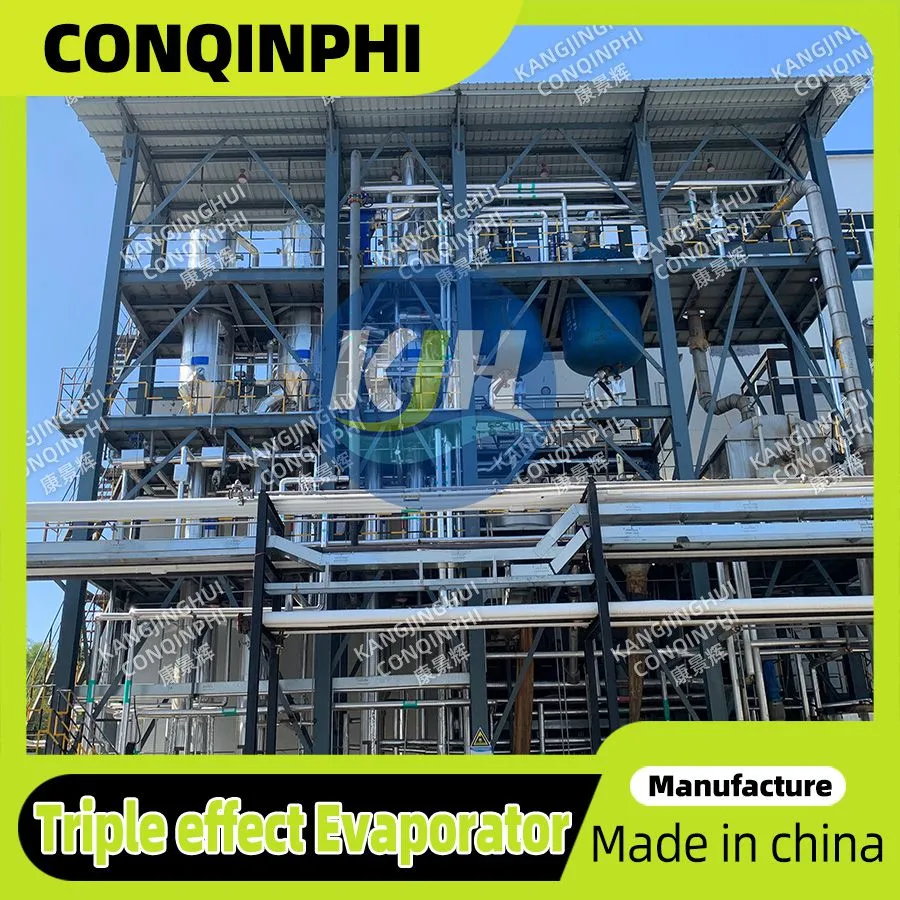

- Energy Efficient: Multi-effect design (optional) reduces steam consumption by up to 40% compared to single-effect systems.
- Gentle Processing: Low operating temperature under vacuum preserves product quality and flavor.
- Corrosion-Resistant Construction: Made from SS304 or SS316L stainless steel, ensuring long service life and compliance with food/pharma hygiene standards.
- Automation Ready: PLC-based control system with touchscreen interface for precise monitoring of temperature, pressure, flow rate, and concentration.
- Easy Maintenance: Modular design with quick-access ports for cleaning and inspection; CIP (Clean-in-Place) capability available.
- Compact Footprint: Vertical arrangement minimizes floor space requirement.
- Customizable: Options for different heating media (steam, thermal oil, or hot water), number of effects, and material grades.
| Parameter | Specification |
| Evaporation Capacity | 10,000 kg/h (10 TPH) |
| Operating Temperature | 40–80°C (adjustable under vacuum) |
| Vacuum Level | -0.08 to -0.095 MPa |
| Heating Medium | Steam (0.2–0.6 MPa) / Thermal Oil / Hot Water |
| Material of Construction | SS304 / SS316L (customer choice) |
| Power Consumption | ~45 kW (based on configuration) |
| Dimensions (L×W×H) | Customized per order |
| Warranty | 1 Year (parts & labor) |
Benefits to Your Business
- Increased Productivity: Handle 10 tons of evaporation per hour, reducing batch processing time.
- Lower Operating Costs: Energy-efficient design and optional heat recovery systems cut utility expenses.
- Superior Product Quality: Gentle evaporation preserves flavors, nutrients, and active ingredients.
- Regulatory Compliance: Materials and construction meet international standards (ISO, HACCP, etc.) for food and pharmaceutical safety.
- Reliable Operation: Robust engineering with minimal downtime; 24/7 technical support from our experienced team.
- Global Logistics: Shipped from Qingdao Port with efficient freight options to any major destination.
At Qingdao Conqinphi Environmental Technology Group Co., Ltd., we have been serving clients since 2015, with a factory area of 10,000–30,000 m² and a workforce of over 200 skilled professionals. Our annual export value of US$10–50 million across 15+ global markets demonstrates our reliability and competitiveness. We hold certifications including ISO9001, ISO14000, OHSAS18001, HACCP, and others, ensuring that every product adheres to the highest quality and safety standards. Each falling film evaporator undergoes strict factory testing before shipment, and we offer a comprehensive 1-year warranty plus lifetime technical support. Whether you need a standard unit or a custom-engineered solution, our team is ready to assist. Contact us today to discuss your evaporation requirements and receive a competitive quotation.
Frequently Asked Questions
-
What is the typical lead time for a 10 TPH Falling Film Evaporator?
Lead time is generally 30–45 days after order confirmation, depending on customization requirements. We can expedite for urgent orders. -
Can the evaporator handle viscous or fouling liquids?
Yes, the falling film design is suitable for medium-viscosity liquids. For highly viscous or scaling-prone materials, we recommend an optional recirculation loop or mechanical cleaning system. Our engineers will advise based on your specific fluid. -
What materials are used in the construction?
Standard material is SS304; SS316L is available for corrosive environments. Other alloys (e.g., duplex stainless steel) can be quoted upon request. -
Do you provide installation and commissioning support?
Yes, we offer on-site installation supervision and commissioning services at additional cost. Remote technical support is always included during the warranty period. -
How can I control the evaporation process?
The system can be equipped with a PLC-based control panel featuring a touchscreen interface. Parameters such as temperature, vacuum, feed flow, and product concentration are automatically regulated. Manual control is also available. -
What is the energy consumption of this evaporator?
Energy consumption depends on the number of effects and heating medium. A single-effect unit consumes approximately 0.4–0.6 kg of steam per kg of water evaporated. Multi-effect designs reduce steam consumption by 30–50%. -
Is the evaporator compliant with international standards?
Yes, our manufacturing facility is certified under ISO9001, ISO14000, OHSAS18001, and other standards. We can also design to meet ASME, PED, or GMP requirements upon request. -
What after-sales service do you offer?
We provide a 1-year warranty covering defects in materials and workmanship. After warranty, we offer paid maintenance contracts. Spare parts are readily available, and our technical team responds within 24 hours for urgent issues.
