Help CenterPectin Refining and Concentration Equipment
Product Spotlights
2. High Retention of Active Ingredients
3. Energy-Saving & Environmental Protection
4. Targeted Design for Pectin Characteristics
Related Products
-
Instant Tea Whole Product Line Membrane Filtration, Concentration and Dehydration EquipmentUS$ 50000 - 500000MOQ: 1 Set -
WPC80 Concentrated Whey Protein Powder Production Line Membrane Filtration Concentration EquipmentUS$ 50000 - 500000MOQ: 1 Combo
-
100kg/hour WPC80 Concentrated Whey Protein Powder Production Line Membrane Filtration Concentration EquipmentUS$ 20000 - 300000MOQ: 1 Combo
-
Ns8040-24X 120-160tpd Low Temperature Nanofiltration Concentration System Energy Saving Industrial NF Membrane Concentration EquipmentUS$ 50000 - 500000MOQ: 1 Combo
-
Brown Sugar Whole Product Line Membrane Filtration Purification and Concentration EquipmentUS$ 50000 - 500000MOQ: 1 Combo

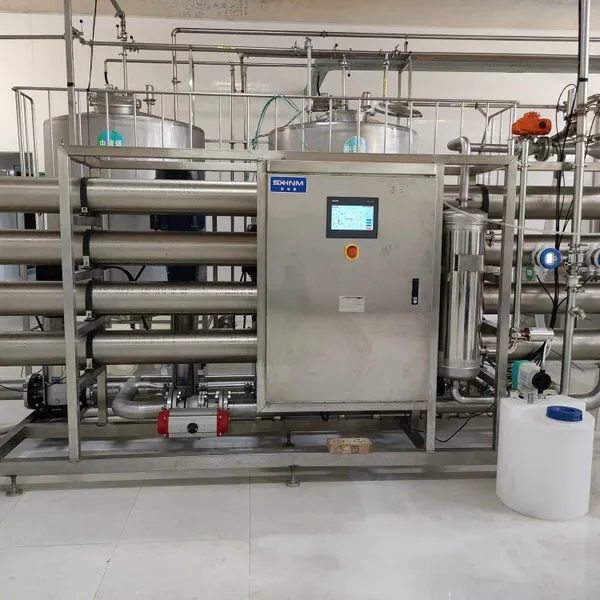

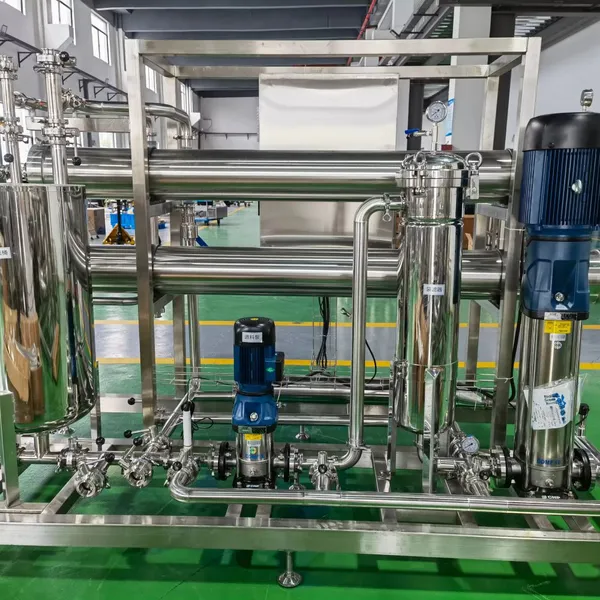

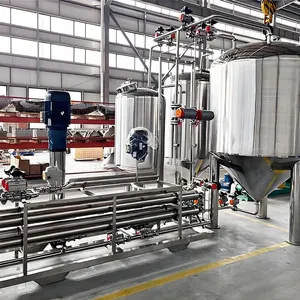

Product Overview
The Pectin Refining and Concentration Equipment is a professional integrated solution independently developed by ZLN Technology Co., Ltd.—a National High-tech Enterprise with over 20 years of membrane separation and food processing expertise. Tailored for the industrial production of pectin (extracted from citrus peels, apple pomace, etc.), this equipment addresses the core pain points of traditional pectin processing: low purity due to incomplete impurity removal, reduced gel strength from thermal degradation, and high energy consumption from conventional concentration methods.
Integrating advanced membrane separation technologies (ultrafiltration, nanofiltration) with precision centrifugation and low-temperature concentration systems, the equipment covers the entire production chain from crude pectin extract pretreatment, refining, and desalination to concentration and finished product processing. It realizes molecular-level precision separation and gentle concentration of pectin, ensuring the final product has high purity (≥90%), excellent gel performance, and retained functional activity. Compliant with GMP, FDA, and other international standards, the equipment has been widely applied in food additive manufacturers, pharmaceutical raw material suppliers, and functional food producers, providing reliable technical support for large-scale, high-quality pectin production.
Core Advantages
1. High Purity & Superior Gel Performance
Adopts multi-stage precision refining (centrifugation + ultrafiltration + nanofiltration), effectively removing small-molecule sugars, proteins, mineral salts, pigments, and residual fruit peel residues. The impurity removal rate reaches ≥95%, and the finished pectin purity is ≥90%, with gel strength and stability significantly higher than traditional alcohol precipitation processes.
2. High Retention of Active Ingredients
Operates at room temperature (25–35℃) throughout the refining and concentration process, avoiding thermal degradation of pectin macromolecules. The gel activity retention rate reaches ≥98%, ensuring the finished product maintains excellent thickening, stabilizing, and gelling properties required for food and pharmaceutical applications.
3. Energy-Saving & Environmental Protection
Membrane concentration technology consumes only 30–40% of the energy of traditional thermal concentration, greatly reducing production costs. The pure physical separation process requires no organic solvents (e.g., ethanol), avoiding environmental pollution and solvent residue risks, meeting clean production requirements.
4. Targeted Design for Pectin Characteristics
Customizes process parameters and membrane configurations based on pectin's high colloid content and viscosity: uses ultrafiltration membranes (10–50 kDa) to intercept macromolecular pectin while removing small-molecule impurities; optimizes cross-flow filtration to prevent membrane fouling; supports adjustable desalination rate (≥90%) for high-ash raw materials.
5. Intelligent & Stable Operation
Equipped with a PLC automatic control system, real-time monitoring of key parameters such as filtration pressure, concentration temperature, and solid content. Features an online CIP cleaning system to reduce membrane fouling and extend the service life of core components to 2–3 years, ensuring consistent product quality across batches.
Main Features
1. Full-Chain Integration
Covers all links of pectin processing—crude extract pretreatment, precision refining, desalination, low-temperature concentration, and post-treatment—forming a closed-loop production system. Reduces floor space by 30% compared to split equipment and simplifies workflows.
2. Advanced Membrane Application
Provides one-stop services from on-site raw material testing, process design, equipment manufacturing, and installation to commissioning, operator training, and after-sales maintenance, adapting to diverse production needs.
3. Flexible Concentration Control
Supports adjusting the concentration endpoint (20–30% solid content) according to production needs, avoiding gelatinization caused by excessive concentration and reducing subsequent drying load.
4. Compliance & Safety Assurance
All parts in contact with materials use food-grade 304/316L stainless steel, PVDF/ceramic membranes, and FDA-compliant components. The process meets food safety and environmental protection standards, ensuring product safety and compliance.
5. Turnkey Service Capability
Provides one-stop services from on-site raw material testing, process design, equipment manufacturing, and installation to commissioning, operator training, and after-sales maintenance, adapting to diverse production needs.
Technical Parameters
Parameter Category |
Specification Range |
Processing Capacity |
50 Kg/h – 8000 Kg/h (customizable according to production scale) |
Membrane Configuration |
Ultrafiltration (UF): 10–50 kDa; Nanofiltration (NF): 200–500 Da |
Operating Pressure |
UF: 0.3–0.8 MPa; NF: 1.5–2.5 MPa; Centrifugation: 0.2–0.5 MPa |
Operating Temperature |
Filtration/Refining: 25–35℃; Concentration: 25–40℃ (room temperature/low temperature) |
Key Treatment Efficiency |
Impurity removal rate: ≥95%; Desalination rate (optional): ≥90%; Pectin retention rate: ≥98% |
Product Quality Indicators |
Purity ≥90%; Gel strength: Consistent with industry standards; Moisture content ≤3%; Complies with GMP/FDA |
Material in Contact with Product |
Food-grade 304/316L stainless steel, PVDF/ceramic membrane, FDA-compliant seals |
Control System |
PLC automatic control + touchscreen; Real-time monitoring of pressure, temperature, concentration |
Power Consumption |
0.8–2.5 kW·h/m³ of treated extract (varies by process configuration) |
Membrane Service Life |
2–3 years (under normal operation and maintenance) |
Core Configuration
System Module |
Core Equipment/Technology |
Function Description |
Pretreatment Unit |
High-speed centrifuge, precision filter, acid extraction tank |
Remove large-particle fruit peel residues from crude pectin extracts; adjust pH for subsequent processing; reduce membrane load |
Refining & Desalination Unit |
UF membrane module (10–50 kDa), NF membrane module (200–500 Da), electrodialysis system (optional) |
Intercept macromolecular pectin and remove small-molecule impurities (sugars, salts); realize desalination for high-ash pectin |
Low-Temperature Concentration Unit |
Membrane concentration system (NF), vacuum low-temperature concentrator (optional) |
Concentrate refined pectin solution from 1–5% to 20–30% solid content at room temperature; avoid thermal degradation |
Auxiliary Unit |
CIP cleaning system, buffer tank, solvent recovery system |
Maintain equipment performance; stabilize process parameters; recycle solvents to reduce costs |
Application Scenarios
Food Additive Pectin Production
Application: Large-scale production of pectin from citrus peels, apple pomace, etc., for food additives (jams, yogurts) and pharmaceutical binders.
Process Solution: Crude extract pretreatment → centrifugal separation → UF refining → NF concentration → drying.
Value: High pectin purity and gel strength; meets food-grade standards with low energy consumption.
Pharmaceutical Grade Pectin Production
Application: Production of high-purity pectin for pharmaceutical binders and drug carriers.
Process Solution: Acid extraction → centrifugal separation → UF purification → nanofiltration desalination → low-temperature concentration → freeze drying → sterile packaging.
Value: Ultra-high purity (≥95%) and biocompatibility; complies with pharmaceutical industry standards and ensures product safety.
Small-Batch R&D & Pilot Production
Application: Production of natural colloids such as xanthan gum and guar gum for functional food and cosmetic industries.
Value: Flexible process configuration adapts to different colloid characteristics; ensures consistent product quality and compliance with international standards.
Company Profile
With 20+ years of experience in chlorination system manufacturing, ZLN is a certified (ISO 9001, ISO 14001, ISO 18001) original equipment manufacturer (OEM) specializing in water treatment solutions. We offer:
1. Customized package design (AutoCAD, SolidWorks-supported engineering).
2. After-sales services: On-site inspection, electrolyzer refurbishment, and capacity upgrades.
3. Membership in China's Chlorine Committee, ensuring compliance with global industry standards.
