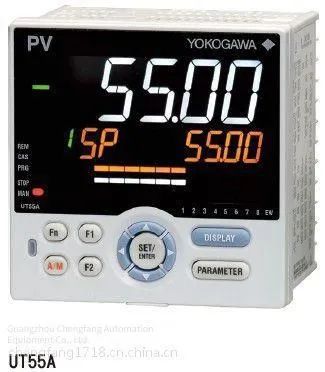

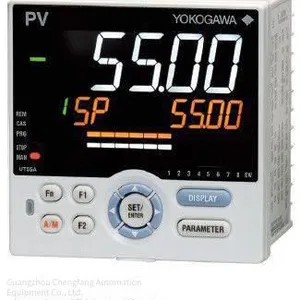

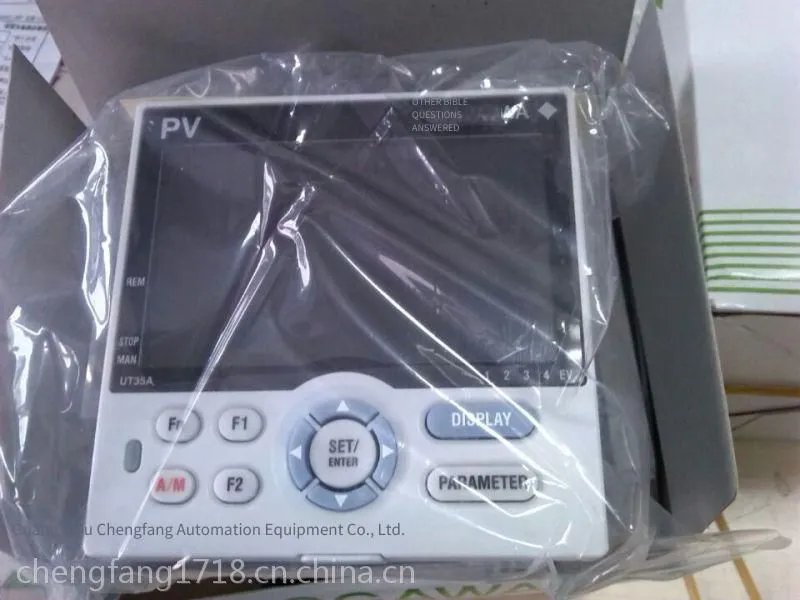

UP55AProgram Regulator, Yokogawa, Japan
The UP55A program regulator has a size of 1/4 DIN and offers up to 30 program modes. It can simultaneously monitor 8 PV events, 16 time events, and 8 alarms.
Newly added support forPROFIBUS-DP andCC-Link* industrial communication protocols. The regulator is often used in combination withPLC. By supporting multiple communication protocols, the types ofPLC that can be supported also increase accordingly. This makes it convenient for customers to more flexibly build multi-vendor systems. To meet the customers' needs forPLC programming modes, the speed ofPLC processing programming data has been greatly improved.
UP55AProgram Regulator's Main Target Markets - Production line operations in industries such as electrical equipment, machinery, chemical, food processing, semiconductor, and automotive; companies engaged in the design, manufacturing, and maintenance of air conditioning, power, and other types of factory equipment
Advanced Control Functions
5 control output modes, 5 control calculation modes
Ladder diagram sequential control function
Accurate and reliable control algorithm
Simple and clear
Simple and easy-to-read 14-segment large-screen color LCD display
Information scrolling text display
Navigation guide and navigation keys
User-defined function keys
Default values can be set by the user
Supports multiple languages (English, Spanish, French, German)
Compact design with a depth of 65mm
Network functions
Ethernet(Modbus/TCP)
RS-485(Modbus/RTU, P2P (point-to-point), Coordinated (coordinated operation), PC-Link)
Open network (PROFIBUS-DP, CC-Link)
Reliability
3-year warranty*¹
RoHS/WEEE
NEMA4*²/IP56 front panel
*1: The 3-year warranty period refers to 36 months after the product leaves the factory.
*2: Only waterproof tests have been conducted.
Application software
LL50AParameter setting software can create ladder diagram sequential programs
(Sold separately) (LL50A will soon support UP55A, UP35A, and UM33A.)
UP55 AProgram regulator selection:
Model |
Specification code |
Additional specification code |
Description |
||||||
UP55A |
|
|
Program controller (with transfer output or 15 V DC loop power supply, 8 DI ports, 8 DO ports) (Power supply: 100-240 V AC) 30 program modes/300 program segments (up to 99 program segments in 1 program mode) |
||||||
Basic control |
-0 |
|
Standard type |
||||||
-1 |
|
Position ratio type |
|||||||
-2 |
|
Heating/Cooling type |
|||||||
Function (* 1) |
0 |
|
None |
||||||
1 |
|
Remote (1 additional analog) input and 1 additional DI |
|||||||
2 |
|
RS-485 Communication (up to 19.2kbps, two-wire/four-wire) |
|||||||
3 |
|
10 additional DO |
|||||||
4 |
|
3 additional aux. analog inputs, 2 DIs and 5 DOs to be deleted |
|||||||
Network function |
0 |
|
None |
||||||
1 |
|
RS-485 communication (up to 38.4kbps, two-wire/four-wire system) |
|||||||
2 |
|
Ethernet communication (with serial gateway function) |
|||||||
3 |
|
CC-Link communication (with Modbus master function) |
|||||||
4 |
|
PROFIBUS-DPCommunication (with Modbus master function) |
|||||||
5 |
|
DeviceNetCommunication (with Modbus master function) |
|||||||
Display language (*2) |
-1 |
|
English |
||||||
-2 |
|
German |
|||||||
-3 |
|
French |
|||||||
-4 |
|
Spanish |
|||||||
Shell color |
0 |
|
White (light gray) |
||||||
1 |
|
Black (light charcoal gray) |
|||||||
Fixed code |
-00 |
|
Always "-00" |
||||||
Additional specification code |
/DR |
Add direct input (TC and 3-wire/4-wire RTD) and current input to remote input (1 additional auxiliary analog), delete 1 DI (*3) |
|||||||
/HA |
Heater break alarm (* 4) |
||||||||
/DC |
Power supply 24V AC / DC |
||||||||
/CT |
Coating (* 5) |
||||||||
* 1: When the function code is specified as "3", the network code must be specified as "0".
* 2: The boot interface can be displayed in English, German, French, and Spanish.
* 3: When the function code is specified as either "1" or "4", the /DR option can be specified.
* 4: When the basic control code is specified as "-0", the /HA option can be specified.
* 5: When the /CT option is specified, the UP55A will not meet the safety standards (UL and CSA) and CE certification.
