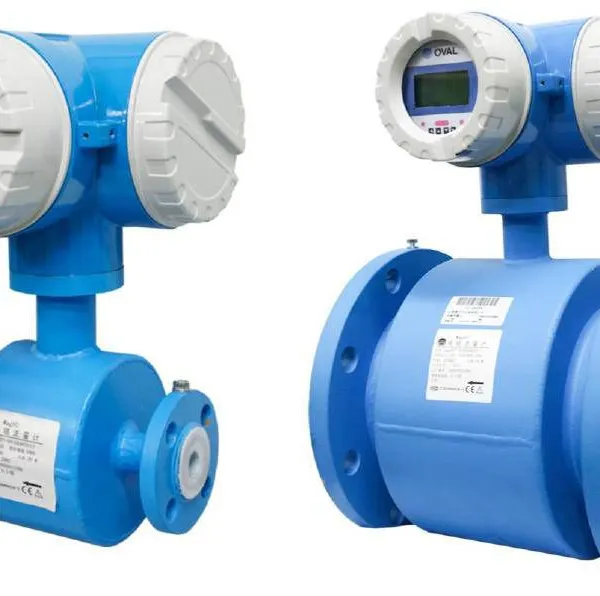

Supply of plug-in intelligent MGH0050I electromagnetic flowmeter, OVAL Obar. The MGH0015W electromagnetic flowmeter consists of two main parts: an electromagnetic flow sensor and an electromagnetic flow converter. It is an instrument made according to Faraday's law of electromagnetic induction, used to measure the volume flow of conductive liquids and slurries in closed pipes. The electromagnetic flowmeter has various output signals for users to choose from. The electromagnetic flowmeter is applied in industries such as chemical engineering, electric power, mining and metallurgy, water supply and drainage, papermaking, medicine, food, and environmental protection.
Features
The measurement is not affected by changes in fluid density, viscosity, temperature, pressure, and conductivity;
There are no flow-blocking components in the measuring tube, no pressure loss, and the requirement for straight pipe sections is relatively low. It has unique adaptability to slurry measurement;
It can output a linear analog signal or frequency signal proportional to the flow velocity, with a wide measurement range;
It uses low-frequency square-wave excitation, with low power consumption and stable zero point.
Product features
a. The measurement is not affected by changes in fluid density, viscosity, temperature, pressure, and conductivity;
b. There are no flow-blocking components in the measuring tube, no pressure loss, and the requirement for straight pipe sections is relatively low. It has unique adaptability to slurry measurement; c. It can output a linear analog signal or frequency signal proportional to the flow velocity, with a wide measurement range; d. It uses low-frequency square-wave excitation, with low power consumption and stable zero point.
Main specifications
MGH0003-M11481011T50
Micro-thread type: MGH0004M, MGH0006M, MGH0008M, MGH0010M, MGH0015M, MGH0020M
Flange type: H0015F, MGH0020F, MGH0025F, MGH0032F, MGH0040F, MGH0050F, MGH0065F, MGH0080F, MGH0100F, MGH0125F, MGH0150F, MGH0200F, MGH0250F, MGH0300F, MGH0350F, MGH0400F, MGH0450F, MGH0500F, MGH0600F, MGH0700F, MGH0800F, MGH0900F, MGH1000F, MGH1200F, MGH1500F, MGH2000F, MGH2600F
Clamp type: MGH0015W, MGH0020W, MGH0025W, MGH0032W, MGH0040W, MGH0050W, MGH0065W, MGH0080W, MGH0100W, MGH0125W, MGH0150W, MGH0200W
Thread type: MGH0006L, MGH0008L, MGH0010L, MGH0015L, MGH0020L, MGH0025L, MGH0032L, MGH0040L, MGH0050L, MGH0065L, MGH0080L, MGH0100L
Hygienic type: MGH0015K, MGH0020K, MGH0025K, MGH0032K, MGH0040K, MGH0050K, MGH0065K, MGH0080K, MGH0100K
Ceramic type: MGH0010C, MGH0015C, MGH0020C, MGH0025C, MGH0032C, MGH0040C, MGH0050C, MGH0065C, MGH0080C, MGH0100C, MGH0125C, MGH0150C, MGH0200C, MGH0250C, MGH0300C
High-pressure type: MGH0015H, MGH0020H, MGH0025H, MGH0032H, MGH0040H, MGH0050H, MGH0065H, MGH0080H, MGH0100H, MGH0125H, MGH0150H
Insertion type: MGH0050I, MGH0065I, MGH0080I, MGH0100I, MGH0125I, MGH0150I, MGH0200I, MGH0250I, MGH0300I
